製品詳細
Place of Origin: China
ブランド名: E-link
証明: ROHS,FCC,CE
Model Number: LNK-WP-IPE102
ドキュメント: E-link LNK-WP-IPE102 Waterp....0.doc
支払いと送料の条件
Minimum Order Quantity: 1 pcs
価格: 交渉可能
Packaging Details: Carton Packaging
Delivery Time: 3-12 working days
Payment Terms: L/C,T/T,Western Union,MoneyGram,Paypal
Supply Ability: 1000 pcs/month
PoE Input Port: |
1 x 10/100/1000Base-TX RJ-45, M25 x 1.5 Cable Glands |
PoE Output Port: |
2 x 10/100/1000Base-TX RJ-45, M25 x 1.5 Cable Glands |
Operating Temperature: |
-40°C to 80°C (-40°F to 176°F) |
Storage Temperature: |
-40°C to 85°C (-40°F to 185°F) |
Dimensions (WxDxH): |
195 x 75 x 46 mm |
Casing: |
Aluminum Case |
Mounting Options: |
Wall-mount |
PoE Input Port: |
1 x 10/100/1000Base-TX RJ-45, M25 x 1.5 Cable Glands |
PoE Output Port: |
2 x 10/100/1000Base-TX RJ-45, M25 x 1.5 Cable Glands |
Operating Temperature: |
-40°C to 80°C (-40°F to 176°F) |
Storage Temperature: |
-40°C to 85°C (-40°F to 185°F) |
Dimensions (WxDxH): |
195 x 75 x 46 mm |
Casing: |
Aluminum Case |
Mounting Options: |
Wall-mount |
Advantages
► IP67-rated aluminum case
► 10/100/1000Mbps Ethernet Ports
► All ports support IEEE 802.3af/at/bt standards
► 1 x Input, 2 x Output
► Enables 100-meter extension of Ethernet connectivity with PoE
► Wall-mountable design
► Wide operating temperature range: -40°C to 80°C
► No external power cable required for installation
► Plug-and-play functionality
► Supports 2K MAC address table for connecting more
► 10kB jumbo frame support in 1000Mbps full-duplex mode
Overview

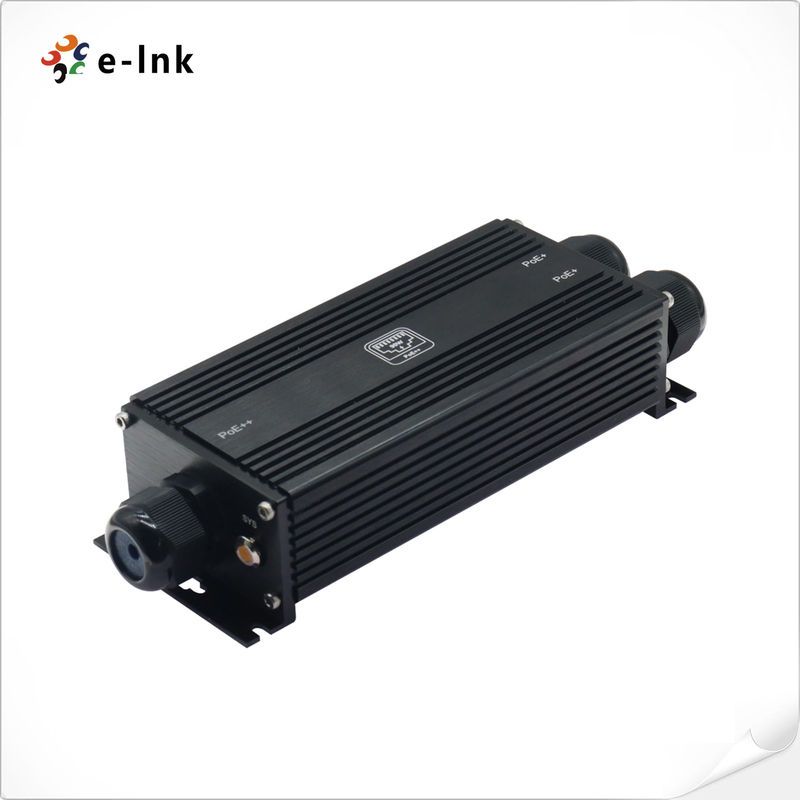

LNK-WP-IPE102 is an industrial-grade IP67-rated Gigabit PoE Extender (1-in 2-out, 90W) that utilizes Power over Ethernet technology. It extends 1000Mbps Ethernet signals up to 100 meters, significantly increasing transmission distance while providing standard PoE power supply of 50-57V to communication devices.
Featuring industrial-grade housing and waterproof terminal design with IP67 protection rating, this extender operates within a wide temperature range of -40°C to 80°C, ensuring reliable performance in harsh environments. It is ideally suited for security surveillance and network engineering applications.
Application
Ordering Information
|
Model |
Description |
|
LNK-WP-IPE102 |
IP67 Waterproof Industrial Gigabit PoE Extender 1 x Input 2 x Output |
|
Mounting Options |
Wall Mount Bracket is included. |
