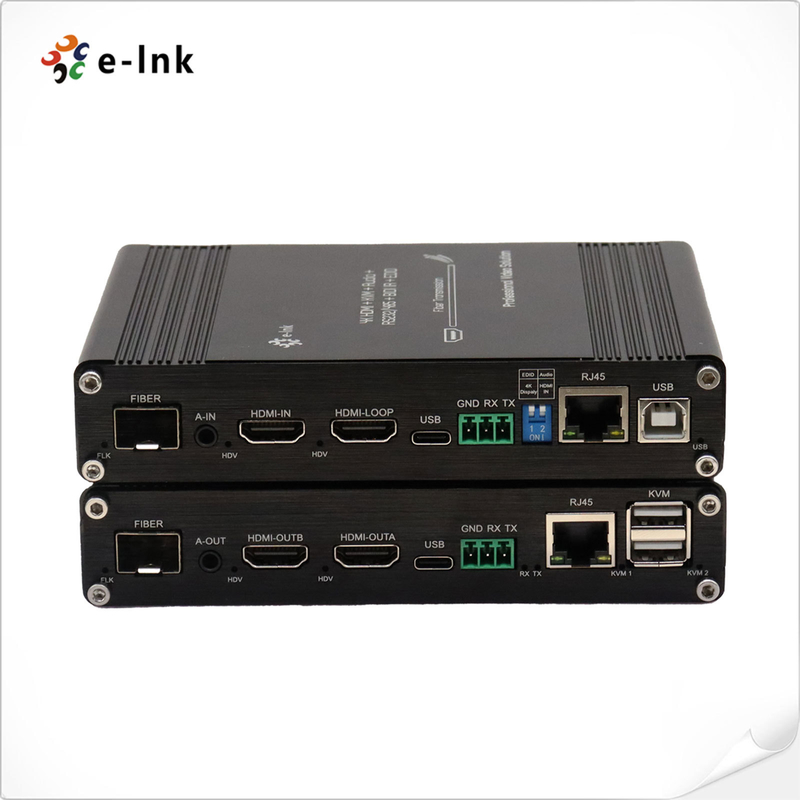

多機能4K 60Hz HDMI KVM光ファイバーエクステンダー

製品詳細

Place of Origin: China

ブランド名: E-link

証明: ROHS,FCC,CE

モデル番号: LNK-4KH-1D1U1E1A1R

ドキュメント: E-link LNK-4KH-1D1U1E1A1R 4....1.doc

支払いと送料の条件

最小注文数量: 1 PCS

価格: $29.9-389

パッケージの詳細: カートンパッケージ

受渡し時間: 3-12営業日

支払条件: L/C,T/T,ウェスタンユニオン,,Paypal

供給の能力: 1000個/月

最良 の 価格 を 入手 する
今連絡してください
仕様
ハイライト:

4K 60HZ HDMI繊維のエクステンダー

,

4K HDMI繊維のエクステンダー

,

多機能HDMIファイバー拡張子

Power supply:
DC 12V/1A
Power dissipation:
MAX 10W
Operating Temperature:
-25℃ ~ +55℃
Storage Temperature:
-40℃ ~ +85℃
Dimensions (WxDxH):
148*115*28mm
The warranty:
1-year warranty
Power supply:
DC 12V/1A
Power dissipation:
MAX 10W
Operating Temperature:
-25℃ ~ +55℃
Storage Temperature:
-40℃ ~ +85℃
Dimensions (WxDxH):
148*115*28mm
The warranty:
1-year warranty
記述
多機能4K 60Hz HDMI KVM光ファイバーエクステンダー

多機能-4K 60Hz HDMI KVM光ファイバーエクステンダー


利点

► 最大4096*2160P@60HzのHDMIビデオ解像度をサポート

► 4:4:4クロマチックサンプリングで最大4K2K@50/60Hzのビデオ解像度をサポート

► HDMI 2.0b、HDCP 2.2、およびDVI 1.0規格に準拠

► HDMIビデオループアウトをサポート

► KVMをサポート

► RS232またはRS485をサポート

► 10/100M TCP/IPをサポート

► 双方向IRをサポート

► オーディオ分離およびEDID機能を備えたDIPスイッチをサポート


概要

LNK-4KH-1D1U1E1A1R光ファイバーエクステンダーは、1本の光ファイバーケーブルを介して長距離のHDMI信号の延長を提供し、最大4K60Hz HDMI, およびオーディオ、RS232またはRS485 ,10/100M TCP/IP、IR、EDID機能付き、10/100M TCP/IP、IR、EDID機能に対応しています。このエクステンダーは、優れた安定性と強力なセキュリティにより、高品質で高解像度の長距離伝送を必要とする幅広いアプリケーションに使用できます。


注文情報

モデル

説明

LNK-4KH-1D1U1E1A1R

多機能4K60HzHDMI光ファイバーエクステンダー, KVM、オーディオ、RS232またはRS485 ,10/100M TCP/IP、IR、EDID機能付き、MMF330MまたはSMF 20 /40/60/80KM, LCまたはSC。画像


アプリケーション

多機能4K 60Hz HDMI KVM光ファイバーエクステンダー


多機能4K 60Hz HDMI KVM光ファイバーエクステンダー
