製品詳細
起源の場所: 中国
ブランド名: E-link
証明: ISO9001,CE,ROHS,FCC
モデル番号: LNK-IMC005G
支払いと送料の条件
最小注文数量: 1pcs
価格: 交渉可能
パッケージの詳細: 産業PoEスイッチ標準的なカートンの包装
受渡し時間: 3~5 営業日
支払条件: T/T、ウェスタンユニオン、MoneyGram、Paypal
供給の能力: 100000個/月
消費電力: |
< 6W (PoE 使用: < 125W) |
入力の積み過ぎ:: |
自動再設置可能 |
Poeの標準: |
IEEE 802.3af/at |
電源入力: |
12~48VDC （ターミナル ブロック） |
重量: |
0.25kg |
港: |
5つの10/100/1000BASET RJ45の自動MDI/MDI X港 |
消費電力: |
< 6W (PoE 使用: < 125W) |
入力の積み過ぎ:: |
自動再設置可能 |
Poeの標準: |
IEEE 802.3af/at |
電源入力: |
12~48VDC （ターミナル ブロック） |
重量: |
0.25kg |
港: |
5つの10/100/1000BASET RJ45の自動MDI/MDI X港 |

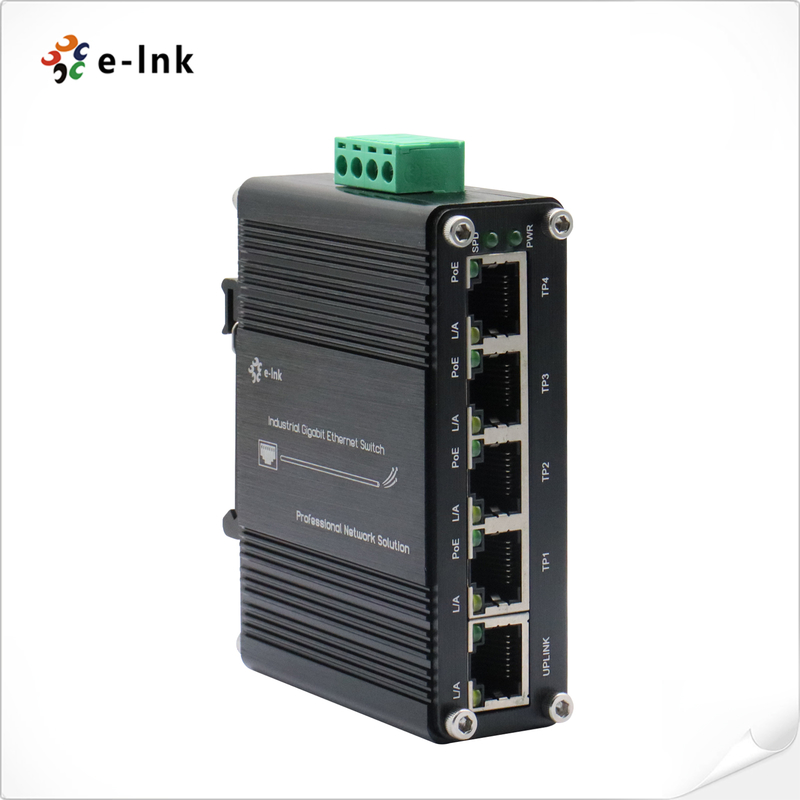

Model:LNK-IMC005G
Features
► 5-port 10/100/1000BASE-T RJ45 with auto-MDI/MDI-X function
► Supports auto-negotiation and 10/100Mbps half/full duplex and 1000Mbps full duplex
► 12~48VDC wide range power input
► Supports 802.3x Flow control
► PoE Optional
► Complies with IEEE 802.3az Energy Efficient Ethernet (EEE)
► Supports DIN-Rail and Wall-mount installation
► Industry standard design, dustproof and close design IP40, rugged high-strength metal case
► -40°C to 80°C (-40°F to 176°F) operating temperature
Overview
LNK-IMC005G Series is a Mini Industrial 5-Port 10/100/1000T Gigabit Ethernet Switch with 12~48VDC wide range power input. This unmanaged industrial Ethernet switch is designed to match the critical industrial standards. With reliable and simple operation against vibration and shock, and wide operation temperature range, it could match a variety of harsh environment. The switch complies with CE and FCC standards, and passed the 100% burning test to ensure that it will fulfill the needs of industrial applications. It is a good choice for an economical solution for industrial Ethernet connections.
Application
Technical Indexes
|
Standards: |
IEEE 802.3 Ethernet |
|
IEEE 802.3u Fast Ethernet |
|
|
IEEE 802.3ab Gigabit Ethernet |
|
|
IEEE 802.3x Full-Duplex Flow Control |
|
|
IEEE 802.3az Energy Efficient Ethernet (EEE) |
|
|
IEEE 802.3af/at Optional |
|
|
Forward & Filtering Rate: |
14,880pps (10Mbps) |
|
148,800pps (100Mbps) |
|
|
1,488,000pps (1000Mbps) |
|
|
Packet Buffer: |
1Mbits |
|
Packet Length: |
10Kbytes |
|
MAC Address Table: |
8K |
|
Switch Fabric: |
10Gbps/non-blocking |
|
Exchange Property |
Backplane bandwidth: 10Gbps; Packet forwarding rate: 14.88Mpps |
|
Connector: |
5 10/100/1000BASET RJ45 auto-MDI/MDI-X ports |
|
Environmental |
|
|
Operating Temperature: |
-40°C to 80°C (-40°F to 176°F) |
|
Storage Temperature: |
-40°C to 85°C (-40°F to 185°F) |
|
Relative Humidity: |
5% to 95% non-condensing |
|
MTBF |
> 200,000 hrs |
|
Electrical and Mechanical |
|
|
Input Power: |
12~48VDC (Terminal Block) |
|
Power Consumption: |
<6W (PoE In Use: <125W) |
|
Power Input Overload: |
Automatic Resettable |
|
Reverse Polarity: |
Present |
|
Dimensions (WxDxH): |
95 x 70x 29m |
|
Weight: |
0.25Kg |
|
Casing: |
Aluminum Case |
|
Mounting Options: |
DIN-Rail / Wall-mount |
|
LED Indicators: |
|
|
PWR |
Power |
|
L/A |
Link/Activity |
|
SPD |
Data Rate |
|
Regulatory Approvals |
|
|
ISO9001 |
|
|
EN55022:2010+AC: 2011, Class A |
|
|
EN 61000-3-2: 2006+A1: 2009+A2: 2009 |
|
|
EN 61000-3-3: 2013 |
|
|
EN55032:2017 |
|
|
IEC 61000-4-2: 2008 (ESD) |
|
|
IEC 61000-4-3: 2010 (RS) |
|
|
IEC 61000-4-4: 2012 (EFT) |
|
|
IEC 61000-4-5: 2014 (Surge) |
|
|
IEC 61000-4-6: 2013 (CS) |
|
|
IEC 61000-4-8: 2009 (PFMF) |
|
Ordering information
|
Model |
Description |
|
LNK-IMC005G |
Mini Industrial 5-Port 10/100/1000T Gigabit Ethernet Switch |
|
LNK-IMC005GP |
Mini Industrial 4-Port 10/100/1000T PoE + 1- Uplink Port Ethernet Switch |
|
Mounting Options |
► Default DIN-Rail Bracket installed; Wall Mount Bracket is included. |
|
Power Options |
► Power Supply is to be purchased separately |
