製品詳細
起源の場所: 中国
ブランド名: E-link
証明: ROHS,FCC,CE
モデル番号: LNK-WP-IPS103
支払いと送料の条件
最小注文数量: 1 PCS
価格: 交渉可能
パッケージの詳細: 産業用ギガビットPoEスイッチ標準輸出パッケージ
受渡し時間: 3-12営業日
支払条件: L/C,T/T,ウェスタンユニオン,マネーグラム,Paypal
供給の能力: 1000個/月
キーワード: |
産業ギガビットPoEスイッチ |
動作温度: |
-40°Cへの80°C （- 176°F）への40°F |
動作湿度: |
0～95%（非結露） |
尺寸 (WxDxH): |
95 x 70 x 30のmm |
重量: |
0.25kg |
キーワード: |
産業ギガビットPoEスイッチ |
動作温度: |
-40°Cへの80°C （- 176°F）への40°F |
動作湿度: |
0～95%（非結露） |
尺寸 (WxDxH): |
95 x 70 x 30のmm |
重量: |
0.25kg |
► IP67-rated aluminum case
► 3 x 10/100/1000Mbps Ethernet Ports
► All ports support IEEE 802.3af/at/bt standards
► 48 ~ 57V DC Power Input
► Wall-mountable design
► Wide operating temperature range: -40°C to 80°C
► Plug-and-play functionality
► Supports 2K MAC address table for connecting more
► 10kb jumbo frame support in 1000Mbps full-duplex mode
► 1/2(+), 3/6(-), 4/5 (+), 7/8 (-) Power Pin Assignment

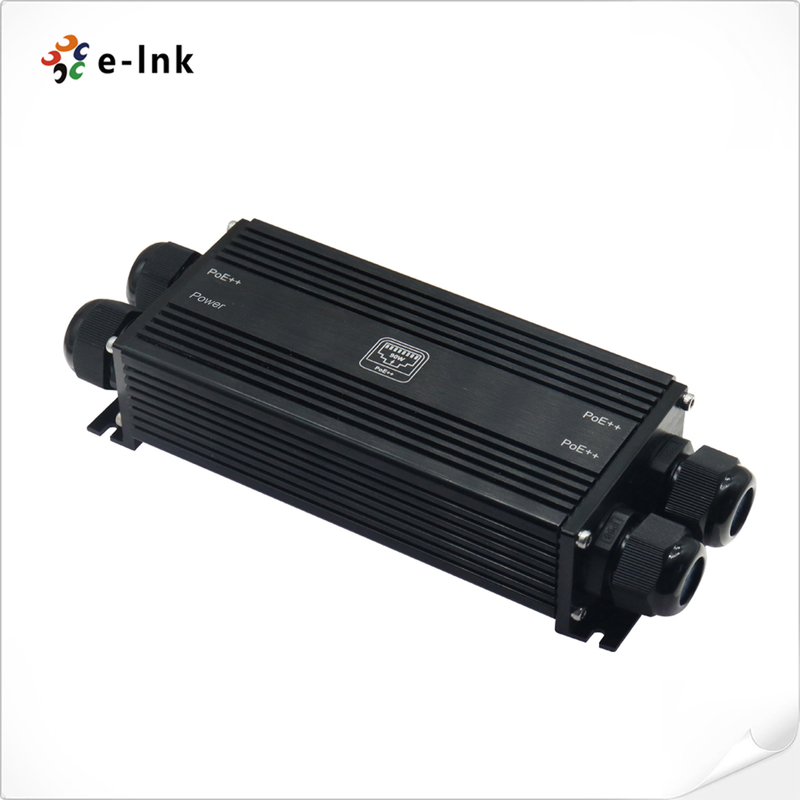

LNK-WP-IPS103 is an industrial-grade IP67-rated Gigabit PoE Switch that utilizes Power over Ethernet technology. It extends 1000Mbps Ethernet signals up to 100 meters, significantly increasing transmission distance while providing standard PoE power supply of 48V to communication devices.
Featuring industrial-grade housing and waterproof terminal design with IP67 protection rating, this switch operates within a wide temperature range of -40°C to 80°C, ensuring reliable performance in harsh environments. It is ideally suited for security surveillance and network engineering applications.
|
|
|
|
PoE Port |
3 x 10/100/1000Base-TX RJ-45, M25 x 1.5 Cable Glands |
|
Power over Ethernet |
|
|
PoE Standard |
IEEE 802.3af/at/bt |
|
PoE Power Supply Type |
Mid-span and End-span |
|
PoE Pin Assignment |
1/2(+), 3/6(-), 4/5 (+), 7/8 (-) |
|
PoE Output Power |
Single Port Maximum 90W, Total 270W |
|
Power Input |
|
|
Input voltage |
48 ~57V DC |
|
Power port |
DC, M25 x 1.5 Cable Glands |
|
Switch Property |
|
|
Standards |
IEEE 802.3 Ethernet, IEEE 802.3u Fast Ethernet, IEEE 802.3ab Gigabit Ethernet |
|
Forwarding Modes |
Store and Forward |
|
MAC Table |
2K |
|
Switching Capacity |
6Gbps |
|
Packet Forwarding Rate |
4.46Mpps |
|
Flow Control |
IEEE 802.3x pause frame for full duplex, Back pressure for half duplex |
|
Jumbo Frame |
10K bytes |
|
Model |
Description |
|
LNK-WP-IPS103 |
IP67 Waterproof Industrial Gigabit PoE Switch |
|
Mounting Options |
Wall Mount Bracket is included. |
