製品詳細
起源の場所: 中国
ブランド名: E-link
証明: ISO9001, CE, RoHS, FCC
モデル番号: LNK-IMC008GP
ドキュメント: E-link LNK-IMC010G Mini Ind....0.pdf
支払いと送料の条件
最小注文数量: 1pcs
価格: 交渉可能
パッケージの詳細: 産業PoEスイッチ標準的なカートンの包装
受渡し時間: 7～10営業日
支払条件: L/C,T/T,ウェスタンユニオン,マネーグラム,Paypal
供給の能力: 100000個/月
重量: |
300g |
取り付けオプション: |
DINレール/壁掛け |
ケース: |
アルミケース |
入力の積み過ぎ: |
自動再設置可能 |
動作温度:: |
-40°Cへの80°C （- 176°F）への40°F |
重量: |
300g |
取り付けオプション: |
DINレール/壁掛け |
ケース: |
アルミケース |
入力の積み過ぎ: |
自動再設置可能 |
動作温度:: |
-40°Cへの80°C （- 176°F）への40°F |
Product Advantages
► 10-port 10/100/1000BASE-T RJ45 with auto-MDI/MDI-X function
► Supports auto-negotiation and 10/100Mbps half/full duplex and 1000Mbps full duplex
► 12~48VDC wide range power input
► Supports 802.3x Flow control
► Complies with IEEE 802.3az Energy Efficient Ethernet (EEE)
► Supports DIN-Rail and Wall-mount installation
► Industry standard design, dustproof and close design IP40, rugged high-strength metal case
► -40°C to 80°C (-40°F to 176°F) operating temperature
Overview
LNK-IMC010G Series is a Mini Industrial 10-Port 10/100/1000T Gigabit Ethernet Switch with 12~48VDC wide range power input. This unmanaged industrial Ethernet switch is designed to match the critical industrial standards. With reliable and simple operation against vibration and shock, and wide operation temperature range, it could match a variety of harsh environment. The switch complies with CE and FCC standards, and passed the 100% burning test to ensure that it will fulfill the needs of industrial applications. It is a good choice for an economical solution for industrial Ethernet connections.
Technical Indexes
|
Standards: |
IEEE 802.3 Ethernet |
|
IEEE 802.3u Fast Ethernet |
|
|
IEEE 802.3ab Gigabit Ethernet |
|
|
IEEE 802.3x Full-Duplex Flow Control |
|
|
IEEE 802.3az Energy Efficient Ethernet (EEE) |
|
|
Forward & Filtering Rate: |
14,880pps (10Mbps) |
|
148,800pps (100Mbps) |
|
|
1,488,000pps (1000Mbps) |
|
|
Packet Buffer: |
2Mbits |
|
Packet Length: |
9216bytes |
|
MAC Address Table: |
4K entries |
|
Switch Fabric: |
20Gbps/non-blocking |
|
Switch Throughput (packet per second) |
14.88Mpps@64bytes |
|
Connector: |
10 x 10/100/1000BASE-T RJ45 auto-MDI/MDI-X ports |
|
Environmental |
|
|
Operating Temperature: |
-40°C to 80°C (-40°F to 176°F) |
|
Storage Temperature: |
-40°C to 85°C (-40°F to 185°F) |
|
Relative Humidity: |
5% to 95% non-condensing |
|
MTBF |
> 200,000 hrs |
|
Electrical and Mechanical |
|
|
Input Power: |
12~48VDC Redundant power with polarity reverses protection function |
|
Power Consumption: |
<10W |
|
Power Input Overload: |
Automatic Resettable |
|
Reverse Polarity: |
Present |
|

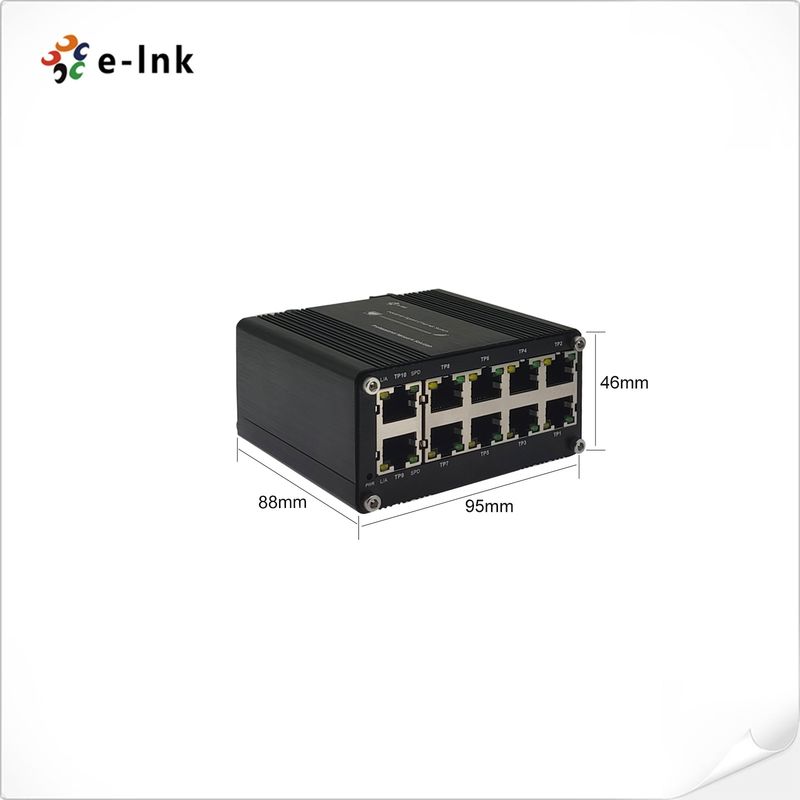

Dimensions (WxDxH): |
95 x 88 x 46mm |
|
Weight: |
300g |
|
Casing: |
Aluminum Case |
|
Mounting Options: |
DIN-Rail / Wall-mount |
|
LED Indicators: |
|
|
PWR |
Power |
|
L/A |
Link/Activity |
|
SPD |
Data Rate |
Application
Ordering Information
|
Model |
Description |
|
LNK-IMC010G |
Mini Industrial 10-Port 10/100/1000T Gigabit Ethernet Switch |
|
Mounting Options |
► Default DIN-Rail Bracket installed; Wall Mount Bracket is included. |
|
Power Options |
► Power Supply is to be purchased separately |
