製品詳細
Place of Origin: China
ブランド名: E-link
証明: CE
Model Number: LNK-M3011-SFP
ドキュメント: E-link LNK-M3011-SFP Micro ....0.pdf
支払いと送料の条件
Minimum Order Quantity: 1pcs
価格: 交渉可能
Packaging Details: Industrial PoE Switch Standard Carton Packaging
Delivery Time: 7-10 working days
Payment Terms: L/C,T/T,Western Union,MoneyGram,PayPal
Supply Ability: 100000PCS/Month
Dimension: |
78 x 27 x 18 mm |
Operating Temperature:: |
0~45ºC |
Conversion means: |
Media conversion |
Power consumption: |
<3W |
Weight: |
46g |
Dimension: |
78 x 27 x 18 mm |
Operating Temperature:: |
0~45ºC |
Conversion means: |
Media conversion |
Power consumption: |
<3W |
Weight: |
46g |
Product Advantages
► Smallest media converters available; tuck the unobtrusively behind a PC
► 10/100 /1000Base-T to 100/1000Base-X SFP
► SFP port support 100Base-FX or 1000Base-X dual mode (auto detection)
► USB-powered for portability, or use 5~15VDC wide range power input
► Ultra compact and weigh less than 2 ounces
► Support 9k jumbo frame
► Options in single mode dual fiber, multi-mode dual fiber, and single mode in single fiber
► Aluminum Case: Conducive to heat dissipation; Lower weight and lower freight cost
► Including a Power Supply
Overview

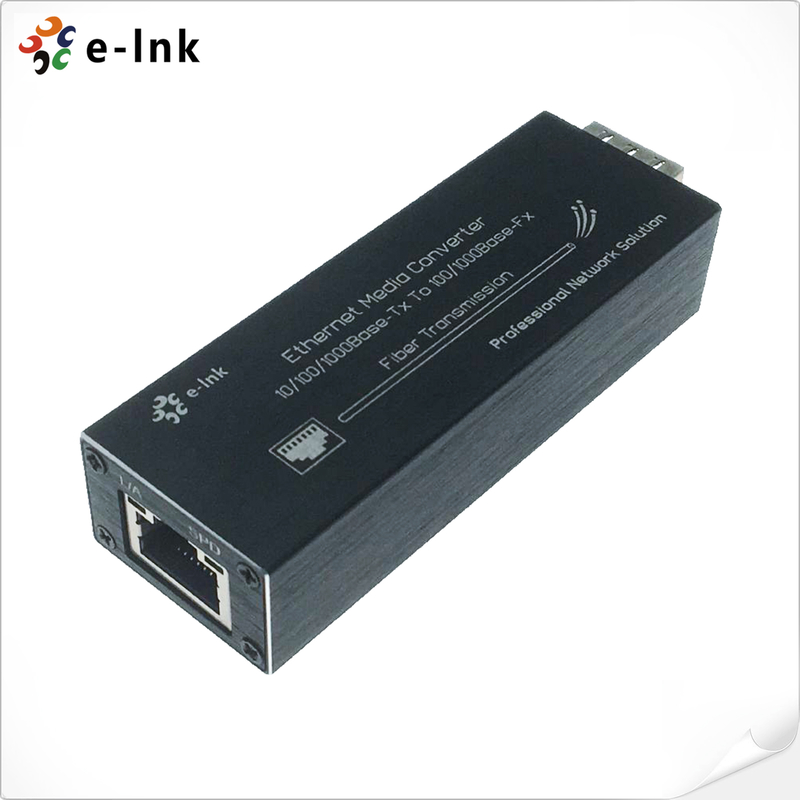

LNK-M3011-SFP 10/100/1000Mbps adaptive Gigabit Ethernet media converter adopts switching technology to fulfill media conversion. It complies with IEEE802.3, IEEE802.3u, IEEE802.3z and IEEE802.3ab standards. Presently it supports two types of media network connections: 10Base-T/100Base-TX/1000Base-T, and 100/1000Base-X, inter-converting electrical signals of 10Base-T/100Base-TX/1000Base-T twisted pairs with optical signals of 100/1000Base-SX/LX.
Technical Indexes
|
Parameter |
Specifications |
|
Access mode |
10/100/1000Mbps Gigabit Ethernet |
|
Standard |
IEEE802.3 10Base-T Ethernet, IEEE802.3u 100Base-TX/FX Fast Ethernet, IEEE802.3ab 1000Base-T , IEEE802.3z 1000Base-SX/LX Gigabit Ethernet |
|
Fiber Port |
SFP - 100/1000M adaptive |
|
Wavelength |
850nm/1310nm/1550nm (Based on SFP Module used) |
|
Transmission distance |
Fiber Cable: Depends on SFP Module Category-5 twisted pairs: 100m |
|
Port |
One RJ45 port: for connecting with STP/UTP cat5/6 twisted pairs One Optical port: SFP |
|
Conversion means |
Media conversion |
|
LFP |
Not Support |
|
BER |
<10-9 |
|
MTBF |
100,000 hours |
|
LED indicator |
PWR (Power supply) TX (LINK100/1000, TP cable rate 100/1000M) FX/ACT (Optical link action /TP cable packet forwarding action) |
|
Power supply |
DC 5~15V (Type-C) |
|
Power consumption |
<3W |
|
Operating temperature |
0~45ºC |
|
Operating humidity |
5%~90% |
|
Maintaining temperature |
-40~70ºC |
|
Maintaining humidity |
5% ~ 90% non-condensing |
|
Weight |
46g |
|
Dimensions (W x D x H) |
78 x 27 x 18 mm |
Application
