製品詳細
起源の場所: 中国
ブランド名: E-link
証明: ISO9001
モデル番号: ZP-HINJ301-30
ドキュメント: ZP-HINJ301-30 Industrial Po...et.doc
支払いと送料の条件
最小注文数量: 1 PCS
価格: 交渉可能
パッケージの詳細: カートンパッケージ
受渡し時間: 3-12営業日
支払条件: L/C,T/T,ウェスタンユニオン,マネーグラム,Paypal
供給の能力: 1000個/月
Mounting Options: |
DIN-Rail / Wall-mount |
Dimensions (WxDxH): |
95 x 70x 36mm |
Operating Temperature: |
-40°C to 80°C (-40°F to 176°F) |
Storage Temperature: |
-40°C to 85°C (-40°F to 185°F) |
Input Power: |
12~48VDC (Terminal Block) |
Casing: |
Aluminum Case |
Mounting Options: |
DIN-Rail / Wall-mount |
Dimensions (WxDxH): |
95 x 70x 36mm |
Operating Temperature: |
-40°C to 80°C (-40°F to 176°F) |
Storage Temperature: |
-40°C to 85°C (-40°F to 185°F) |
Input Power: |
12~48VDC (Terminal Block) |
Casing: |
Aluminum Case |
Advantages
► 12~48V DC Power Input
► 1 RJ45 Ethernet Data Input Port + 1 RJ45 Power Over Ethernet Output Port (Data + Power)
► Support IEEE802.3at Power over Ethernet (PoE+) Power Sourcing Equipment
► Support 10/100/1000Base-TX
► Extensive LED indicators for PoE diagnostics
► Environmentally Hardened -40°C to 80°C (-40°F to 176°F) operating temperature
► Small Size 95 x 70 x 36 mm
► Aluminum Alloy Metal Case
► Support DIN-rail mounting and wall mounting installation
Overview

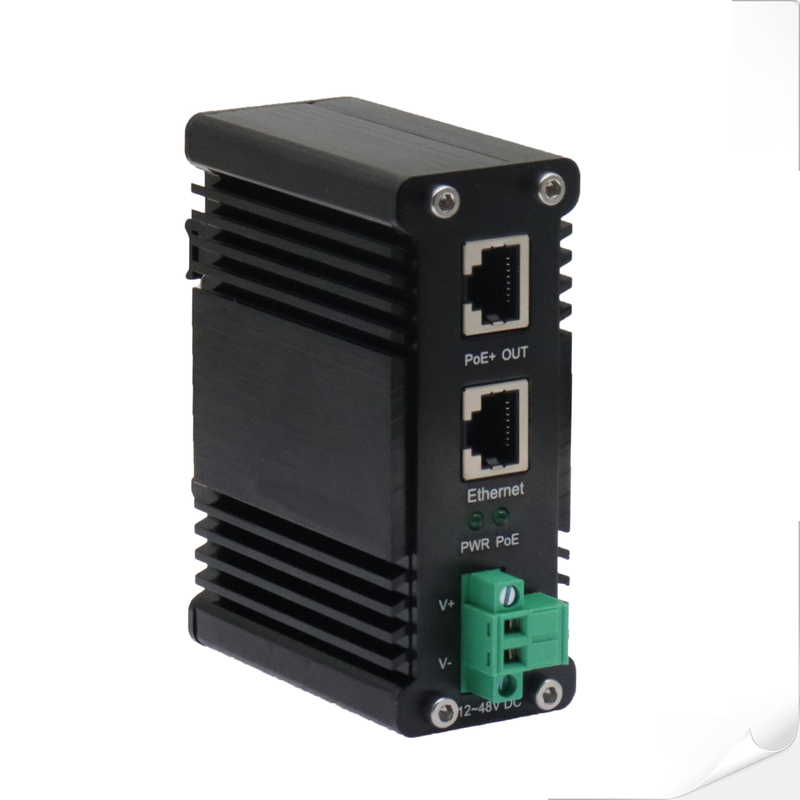

The ZP-HINJ301-30 product is a Hardened Gigabit High Power PoE Injector allows you to connect the IEEE 802.3 af/at PoE device such as camera and access point with a non PoE LAN switch within the distance of 100m.
Both the Ethernet port (to switch) and the PoE Out port (to PoE device) support 10/100/1000Base-T and are compliant with IEEE 802.3ab. The PoE Out port is also compliant with IEEE 802.3 at.
ZP-HINJ301-30 provides an integrated power solution with a wide range voltage of 12~48VDC for high availability applications.
Ordering Information
|
Model |
Description |
|
ZP-HINJ301-30 |
12~48VDC Power Input Industrial Gigabit PoE+ Injector |
|
Mounting Options |
► Default DIN-Rail Bracket installed; Wall Mount Bracket is included. |
|
Power Options |
► Power Supply is to be purchased separately |
Application
