製品詳細
起源の場所: 中国
ブランド名: E-link
証明: CE, RoHS, FCC
モデル番号: LNK-WP901
支払いと送料の条件
最小注文数量: 1pc
価格: 交渉可能
パッケージの詳細: PoEの注入器の標準的な輸出パッケージ
受渡し時間: 3~5 営業日
支払条件: Paypal、TT、ウェスタン・ユニオン、MoneyGram、Alipay
供給の能力: 月に2000個
製品名: |
防水PoEインジェクター |
インプット: |
48~57VDC |
出力: |
IEEE802.3bt 95W |
パワーピン: |
4/5 （+）、7/8 （-）および3/6 （+）、1/2 （-） |
重量: |
1.5kg |
サイズ: |
260mm X 210mm X 80mm |
製品名: |
防水PoEインジェクター |
インプット: |
48~57VDC |
出力: |
IEEE802.3bt 95W |
パワーピン: |
4/5 （+）、7/8 （-）および3/6 （+）、1/2 （-） |
重量: |
1.5kg |
サイズ: |
260mm X 210mm X 80mm |

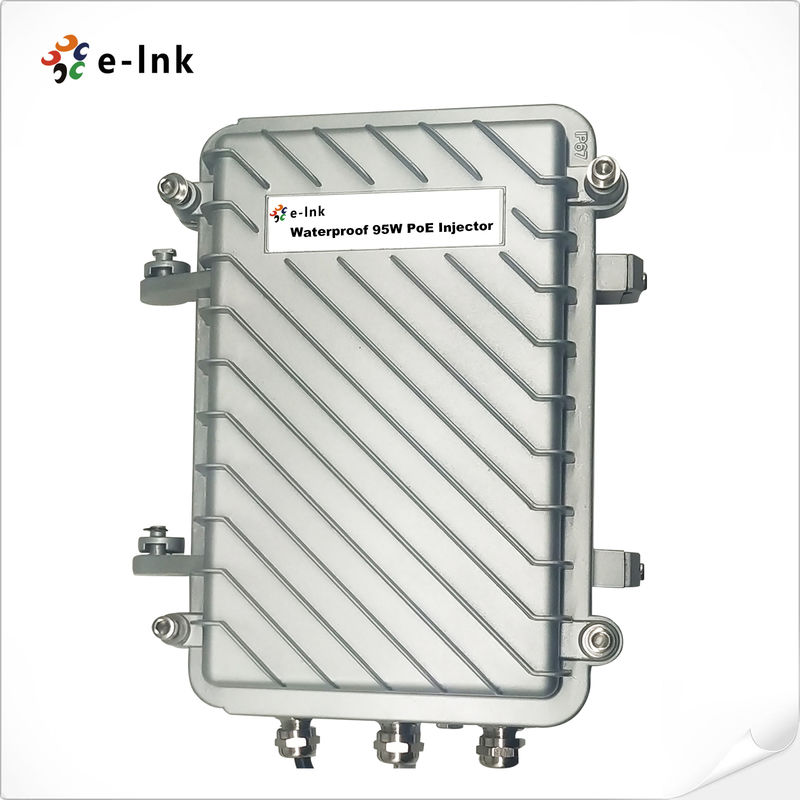

Outdoor Waterproof Industrial 95W Gigabit PoE Injector with 6KV Surge Protection
Features
► Protection level: IP67
► 6KV(10/700us) surge protection on LAN, PoE ports
► 1 RJ45 Ethernet Data Input Port + 1 RJ45 Power over Ethernet Output Port(Data + Power)
► Support 95W LTPoE++ Power Sourcing Equipment
► Supports Wall-mount installation
► Environmentally hardened -40°C to 80°C
(-40°F to 176°F) operating temperature
Overview
LNK-WP901 provides 95W PoE power for remote PDs over 4 pairs output with 6KV (10/700us) surge
protection, fully compliant solution for outdoor installations, guaranteeing 30 Watts of power and ensuring
safe and reliable operation in outdoor environment of any standard PoE data terminal. It allows wireless
LAN access points, security network cameras and other IP terminals to receive power, a long with data,
over standard Ethernet cables, leaving network infrastructure completely unaltered.
Application
Technical Indexes
| Parameter | Specifications |
| Standard |
IEEE802.3 10Base-T Ethernet IEEE802.3u 100Base-Tx Fast Ethernet IEEE802.3ab 1000Base-T Gigabit Ethernet Support terminal equipment with IEEE802.3af/at/bt, PoE++ RoHS Compliance WEEE Compliance Protection Level: IP67, IEC60529, NEMA 250 |
| Input & Output |
Input : 48~57VDC Output: IEEE802.3bt 95W Power Pins: 4/5(+), 7/8(-) and 3/6(+),1/2(-) Data Speed: 10/100/1000Mbps |
| Working Environment |
Operating Temperature: -40℃ to 80℃ Operating Humidity: 20% to 80%, non-condensation Storage Temperature: -40℃ to 85℃ Storage Humidity: 10% to 90%, non-condensation Operating Altitude: up to 5000meters |
| AC Surge Protection |
Common mode surge protection(10/700us): 6KV Differential mode surge protection (10/700us): 1.5KV |
| PoE Surge Protection |
Protected line: 1,2,3,4,5,6,7,8 Common mode surge protection(10/700us): 6KV Differential mode surge protection (10/700us): 1.5KV |
| Mechanical Characteristics | Case: Metal |
| Color: Gray | |
| Mounting: Pole-mounted | |
| IP Rated: IP67 | |
| Size (LxWxH): 260mm X 210mm X 80mm | |
| Weight: 1.5KG |
