製品詳細
起源の場所: 中国
ブランド名: E-link
証明: CE, RoHS, FCC
モデル番号: LNK-INJ401-30
支払いと送料の条件
最小注文数量: 1pc
価格: US$48-55/pc
パッケージの詳細: PoEの注入器のアダプターの標準的な輸出パッケージ
受渡し時間: 5-12仕事日
支払条件: L/C,T/T,ウェスタンユニオン,マネーグラム,ペイパール
供給の能力: 1000個/月
キーワード: |
PoEインジェクターアダプター |
入力電源: |
12~48VDC （ターミナル ブロック） |
力ピン: |
4/5(+)、7/8(-) |
尺寸 (WxDxH): |
95 x 70 x 30のmm |
動作温度: |
-40°Cから80°C |
取り付けオプション: |
DINレール/壁掛け |
キーワード: |
PoEインジェクターアダプター |
入力電源: |
12~48VDC （ターミナル ブロック） |
力ピン: |
4/5(+)、7/8(-) |
尺寸 (WxDxH): |
95 x 70 x 30のmm |
動作温度: |
-40°Cから80°C |
取り付けオプション: |
DINレール/壁掛け |

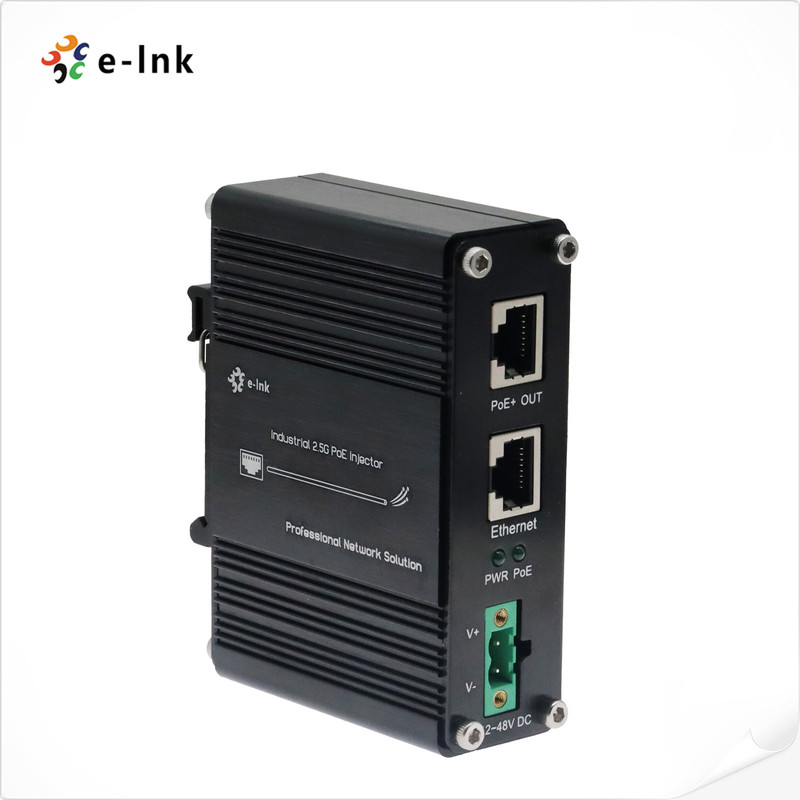

12~48V DC Power Input Industrial 2.5G 30W PoE+ Injector
PoE Injector Adapter Advantages
► 12~48V DC Power Input
► 1 RJ45 Ethernet Data Input Port + 1 RJ45 Power Over Ethernet Output Port (Data + Power)
► Support IEEE802.3at Power over Ethernet (PoE+) Power Sourcing Equipment
► Support 10/100/1000/2.5G Base-TX
► Extensive LED indicators for PoE diagnostics
Technical Indexes
| Ethernet | |
| Standards: | IEEE802.3af Power over Ethernet |
| IEEE802.3at Power over Ethernet | |
| Processing Type: | Forward |
| Half-duplex, Full-duplex | |
| Forward Filter Rate: | 3,720,000pps (2.5Gbps) |
| Cabling: | 10/100/1000/2.5G Base-T: Cat6A or above |
| Maximum Distance: | Cat6A UTP up to 100m |
| Connector: | 2x RJ45 |
| Environmental | |
| Operating Temperature: | -40°C to 80°C (-40°F to 176°F) |
| Storage Temperature: | -40°C to 85°C (-40°F to 185°F) |
| Relative Humidity: | 5% to 95% non-condensing |
| MTBF: | >200,000hrs |
| Electrical and Mechanical | |
| Input Power: | 12~48VDC (Terminal Block) |
| Power Consumption: | 36W Max. |
| PoE (Power over Ethernet) | |
| Standard: | IEEE802.3af/at |
| Port: | RJ45 |
| Power Pin Assignment | 4/5(+), 7/8(-) |
| Max. Power per Port: | 30W Max per port (Alternative B Mode) |
Overview
The LNK-INJ401-30 product is a Hardened 2.5G PoE Injector allows you to connect the IEEE 802.3 af/at PoE device such
as camera and access point with a non PoE LAN switch within the distance of 100m.Both the Ethernet port (to switch) and
the PoE Out port (to PoE device) support 10/100/1000/2.5G Base-T and are compliant with IEEE 802.3ab. The PoE Out port
is also compliant with IEEE 802.3 at.
Ordering Information
| Model | Description |
| LNK-INJ401-30 | 12~48VDC Power Input Industrial 2.5G PoE+ Injector |
| Mounting Options | ► Default DIN-Rail Bracket installed; Wall Mount Bracket is included. |
| Power Options | ► Power Supply is to be purchased separately |
