製品詳細
起源の場所: 中国
ブランド名: E-link
証明: ISO9001, CE, ROHS, FCC
モデル番号: LNK-M3011-SFP
支払いと送料の条件
最小注文数量: 1pcs
価格: negotiate
パッケージの詳細: ファイバーメディアコンバーター 標準紙箱
受渡し時間: 3～5営業日
支払条件: T/T,ウェスタンユニオン,マネーグラム,PayPal
供給の能力: 1000/月
繊維の港: |
SFP -適応性がある100/1000M |
換算方法: |
メディア変換 |
MTBF: |
100千時間 |
波長: |
850nm/1310nm/1550nm (使用されたSFPモジュールに基づいて) |
電源: |
DC 5~15V （タイプC） |
寸法 (W x D x H): |
78×27×18mm |
繊維の港: |
SFP -適応性がある100/1000M |
換算方法: |
メディア変換 |
MTBF: |
100千時間 |
波長: |
850nm/1310nm/1550nm (使用されたSFPモジュールに基づいて) |
電源: |
DC 5~15V （タイプC） |
寸法 (W x D x H): |
78×27×18mm |

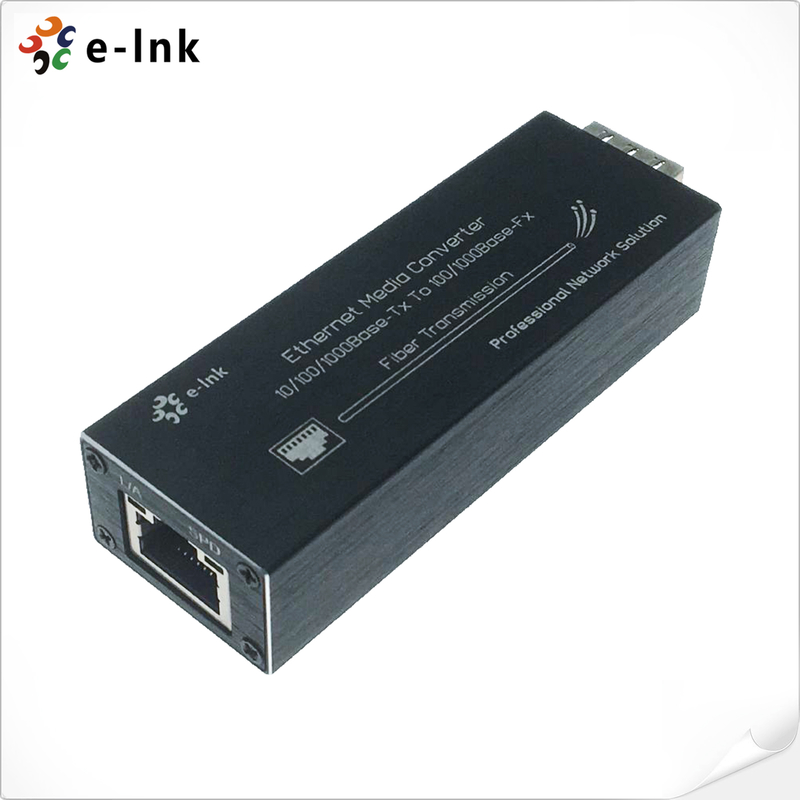

Model : LNK-M3011-SFP
Overview
LNK-M3011-SFP 10/100/1000Mbps adaptive Gigabit Ethernet media converter adopts switching
technology to fulfill media conversion. It complies with IEEE802.3, IEEE802.3u, IEEE802.3z and
IEEE802.3ab standards. Presently it supports two types of media network connections: 10Base-T/
100Base-TX/1000Base-T, and 100/1000Base-X, inter-converting electrical signals of 10Base-T/100
Base-TX/1000Base-T twisted pairs with optical signals of 100/1000Base-SX/LX. It extends the transmission
distance of network from 100m via copper cable to 120km Max via fiber optical cables. It supports
transmission in multi-mode dual fiber, single mode dual fiber and single mode single fiber.
When plugged into a computer’s USB port, the media converter shuts down automatically when
you turn off the computer, which saves energy. Micro Mini Media Converters are excellent solutions
for fiber-to-the-laptop applications where you need Gigabit fiber connectivity but local power isn’t available.
Features
► Smallest media converters available; tuck the unobtrusively behind a PC
► 10/100 /1000Base-T to 100/1000Base-X SFP
► SFP port support 100Base-FX or 1000Base-X dual mode (auto detection)
► USB-powered for portability, or use 5~15VDC wide range power input
► Ultra compact and weigh less than 2 ounces
► Support 9k jumbo frame
► Options in single mode dual fiber, multi-mode dual fiber, and single mode in single fiber
► Aluminum Case: Conducive to heat dissipation; Lower weight and lower freight cost
► Including a Power Supply
Technical Indexes
| Parameter | Specifications |
| Access mode | 10/100/1000Mbps Gigabit Ethernet |
| Standard | IEEE802.3 10Base-T Ethernet, IEEE802.3u 100Base-TX/FX Fast Ethernet, IEEE802.3ab 1000Base-T , IEEE802.3z 1000Base-SX/LX Gigabit Ethernet |
| Fiber Port | SFP - 100/1000M adaptive |
| Wavelength | 850nm/1310nm/1550nm (Based on SFP Module used) |
| Transmission distance |
Fiber Cable: Depends on SFP Module Category-5 twisted pairs: 100m |
| Port |
One RJ45 port: for connecting with STP/UTP cat5/6 twisted pairs One Optical port: SFP |
| Conversion means | Media conversion |
| LFP | Not Support |
| BER | <10-9 |
| MTBF | 100,000 hours |
| LED indicator |
PWR (Power supply) TX (LINK100/1000, TP cable rate 100/1000M) FX/ACT (Optical link action /TP cable packet forwarding action) |
| Power supply | DC 5~15V (Type-C) |
| Power consumption | <3W |
| Operating temperature | 0~45ºC |
| Operating humidity | 5%~90% |
| Maintaining temperature | -40~70ºC |
| Maintaining humidity | 5% ~ 90% non-condensing |
| Weight | 46g |
| Dimensions (W x D x H) | 78 x 27 x 18 mm |
Application
