製品詳細
起源の場所: 中国
ブランド名: E-link
モデル番号: LNK-DVI-1D1BA 光ファイバー拡張器
ドキュメント: E-link LNK-DVI-1D1BA DVI+Bi....0.pdf
支払いと送料の条件
最小注文数量: 1 PCS
価格: 交渉可能
パッケージの詳細: カートンパッケージ
受渡し時間: 3-12営業日
支払条件: L/C,T/T,ウェスタンユニオン,マネーグラム,Paypal
供給の能力: 1000個/月
The warranty: |
1-year warranty |
Dimensions (WxDxH): |
120 x 83 x 28 (mm) |
Operating Temperature: |
-20℃ ~ +70℃ |
Humidity: |
5% ~ 90% |
Power dissipation: |
MAX 4W |
Power supply: |
The power adapter: DC 5V |
The warranty: |
1-year warranty |
Dimensions (WxDxH): |
120 x 83 x 28 (mm) |
Operating Temperature: |
-20℃ ~ +70℃ |
Humidity: |
5% ~ 90% |
Power dissipation: |
MAX 4W |
Power supply: |
The power adapter: DC 5V |
Advantages
► Transmits DVI video signals, RS232 and audio up to 20km over a single fiber cable;
► Support resolution up to 1920*1200@60Hz ;
► Special support 1600*1200 @60HZ
► Support external bidirectional stereo audio transmission;
► Compliance with DVI 1.0 and HDCP 1.2 standard;
► High compatibility, can auto-match source and display device;
► Built-in automatic adjustment system, make the image smooth, clear and stable;
► Built-in ESD protection system;
► Simple to install, plug and play;
Overview

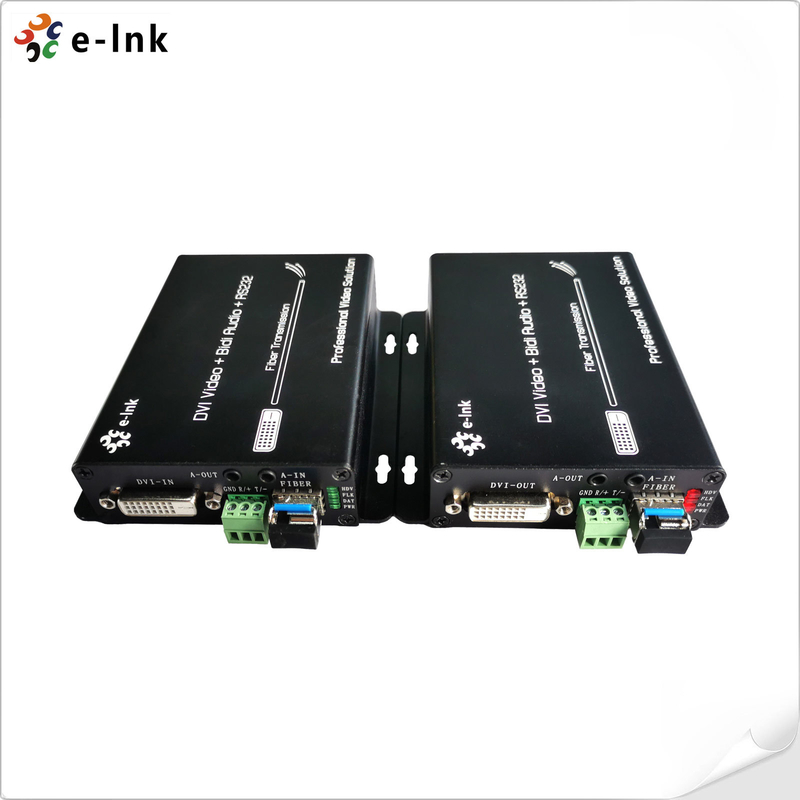

The LNK-DVI-1D1BA Fiber optic extender provides extension of DVI signals long distances over one fiber optic cable, it supports high resolution up to 1080P, KVM, RS232, GPIO signal and external audio transmission function. The extender can use for a wide range of applications requiring long distance transmission of high resolution with high quality by its good stability and powerful security.
Application
