製品詳細
起源の場所: 中国
ブランド名: E-link
証明: CE, FCC, RoHS
モデル番号: LNK-GYM7024G
支払いと送料の条件
最小注文数量: 1pcs
価格: Negotiated
パッケージの詳細: 標準輸出パッケージ
受渡し時間: 5~12 営業日
支払条件: T/T,Paypal メールで受け取る
供給の能力: 1000個/口
余分な入力: |
DC 9-57V |
力の逆: |
サポート |
動作温度: |
-40°C~80°C |
貯蔵温度: |
-40°C~85°C |
重量: |
1000g |
サイズ: |
160mm × 130mm × 70mm (L × W × H) |
余分な入力: |
DC 9-57V |
力の逆: |
サポート |
動作温度: |
-40°C~80°C |
貯蔵温度: |
-40°C~85°C |
重量: |
1000g |
サイズ: |
160mm × 130mm × 70mm (L × W × H) |
Advantage
► 24x10/100/1000Base-T Ethernet ports
► Support Auto-MDIX, and full/half duplex self-negotiation mode
► Status indicator, working state at a glance
► Power input polarity protection design, no worry about wrong operation
► Metal case, no fan design
► Installation method: DIN Rail /Wall mounting
Overview

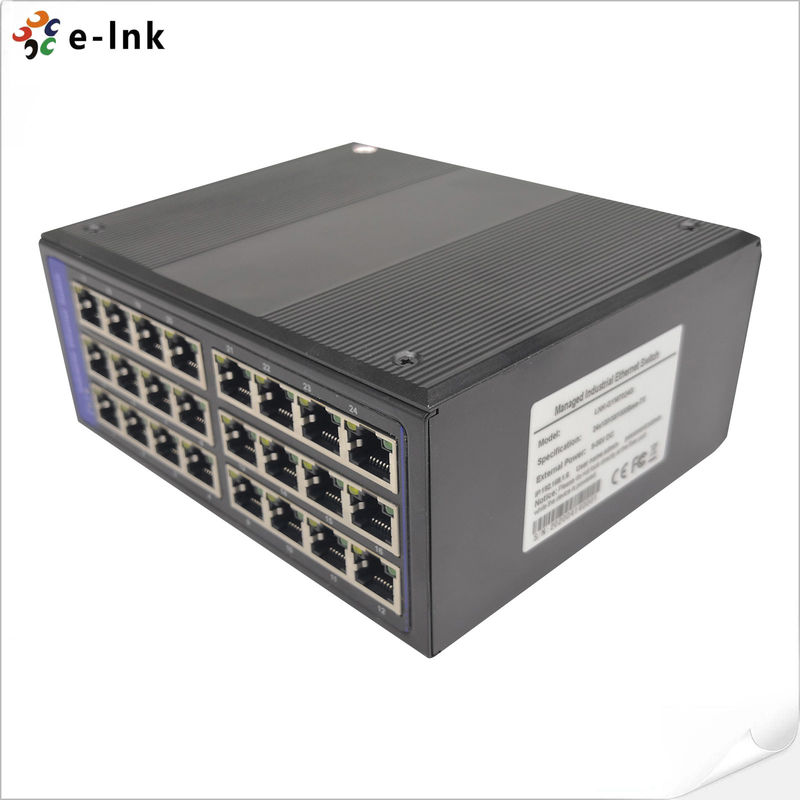

LNK-GYM7024G Series is a new generation industrial Managed Ethernet switch with 24-Port Ethernet
ports that provide stable and reliable Ethernet transmission offered by E-link, with high quality design
and reliability. It is positioning in the broadband network intervention market, to offer and realize Ethernet
data exchange, convergence and long-distance optical transmission with efficient bandwidth and reliable
network solutions for users. The industrial switch complies with various characteristics such as mini size,
no fan, low power consumption, high reliability and stability, and easy to maintain.
Technical Indexes
|
Power Information |
|
|
Power access mode |
Phoenix terminal, DC seat |
|
Redundant power input |
DC 9-57V |
|
Overload protection |
Yes |
|
Power reverse |
Support |
|
Power consumption |
Full-load<15W |
|
Physical Property |
|
|
Protection grade |
IP40 aluminum case |
|
Cooling mode |
Natural cooling, no fan design |
|
Dimensions |
160mm x 130mm x 70mm (L x W x H) |
|
Installation mode |
DIN Rail/Wall-mountable |
|
Weight |
1000g |
|
Working Environment |
|
|
Operating Temperature |
-40℃~80℃ |
|
Operating Humidity |
5%~90% non-condensing |
|
Storage Temperature |
-40℃~85℃ |
|
Warranty |
|
|
MTBF |
500,000 hours |
|
Defects Liability Period |
5 year warranty, lifetime technical support |
Application
Ordering Information
|
Model |
Description |
|
LNK-GYM7024G |
Managed Industrial 24-Port 10/100/1000Base-T Ethernet Switch |
|
Mounting Options
|
► Default DIN-Rail Bracket installed, Wall Mount Bracket is included. |
|
Power Options |
►24W/1A 24VDC DIN-Rail Power Supply. Open Wire for Terminal Block. |
|
► Power Supply is to be purchased separately. |
