製品詳細
起源の場所: 中国
ブランド名: E-link
モデル番号: LNK-D4K-SM
ドキュメント: E-link LNK-D4K-SM Mini 4Kx2....0.pdf
支払いと送料の条件
最小注文数量: 1 PCS
価格: 交渉可能
パッケージの詳細: カートンパッケージ
受渡し時間: 3-12営業日
支払条件: L/C,T/T,ウェスタンユニオン,マネーグラム,Paypal
供給の能力: 1000個/月
The warranty: |
1-year warranty |
Dimensions (WxDxH): |
69mm x 42 mm x 18.2 mm |
Operating Temperature: |
32° to +112° F. (0° to +50° C) |
Storage Temperature: |
-40° to +185° F. (-40° to +85° C) |
Fiber Cable: |
9/125μ Single-Mode Fiber:≤80Km(default 1.4km) |
EDID Support: |
An EDID memory built into the Tx module can learn and store the display EDID info. |
The warranty: |
1-year warranty |
Dimensions (WxDxH): |
69mm x 42 mm x 18.2 mm |
Operating Temperature: |
32° to +112° F. (0° to +50° C) |
Storage Temperature: |
-40° to +185° F. (-40° to +85° C) |
Fiber Cable: |
9/125μ Single-Mode Fiber:≤80Km(default 1.4km) |
EDID Support: |
An EDID memory built into the Tx module can learn and store the display EDID info. |
Advantages
► Support DVI 1.0 and HDMI v1.4
► Support learns and stores the display EDID info
► Support resolutions up to 3840x2160/30P
► 7.1 channel LPCM, 192 kHz, 24-bit
► Support 3840*2160/60P(YUV 420)
► Plug and Play ,Built-in EQ(Receiver)
► Support 4K/30P@ Single-Link
► One fiber,One-way
► Bandwidth up to 10.2 Gbps
► Up to 80Km distance by Single-Mode Fiber
► Does not support the HDCP and CEC
► Low RFI / EMI
► Support 3D TV pass-through
► Surface-mountable
Overview
E-link Mini 4Kx2K DVI is High-Definition Multimedia Interface recently has become increasingly popular in the application of video and audio transmission system, DVI Fiber Optic Extender uses one fiber without any copper wire inside, where radio frequency interference phenomenon is literally ruled out, which shows the advantage of high performance and good signal quality as well as low cost.
The LNK-D4K-SM series is a high performance 4K Optical Extender that transmits high resolution DVI signals over extreme distances using one fiber. This extender supports HDMI v1.4 signals with resolutions up to 4K (3840*2160/30p) over cable distances up to 80km (default 1.4km).
Order Information
|
Model |
Description |
|

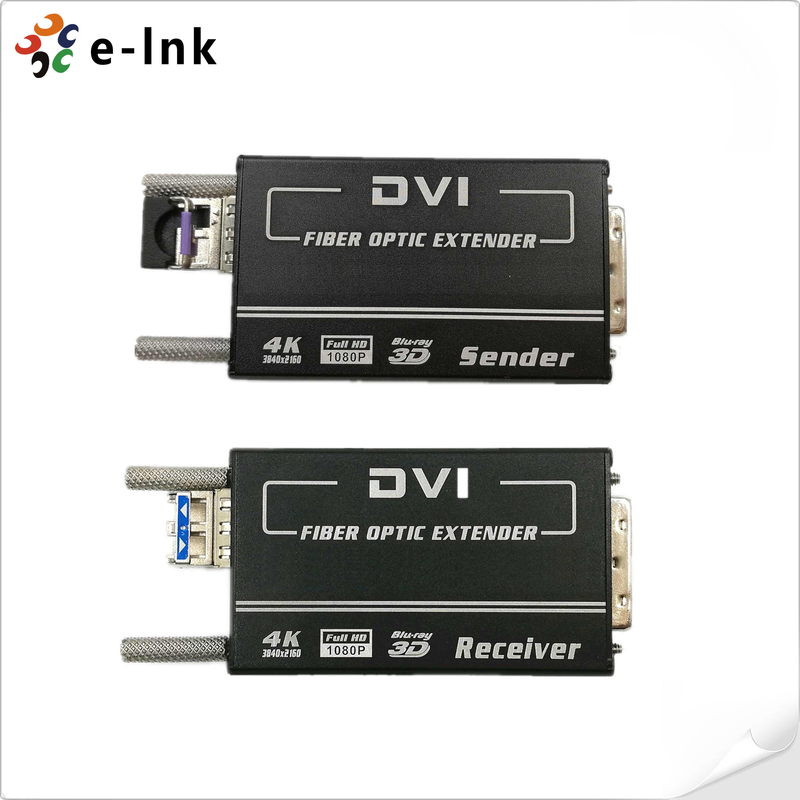

LNK-D4K-SM-S |
Mini 4KX2K DVI Fiber Sender Manual EDID,DC5V1A |
|
LNK-D4K-SM-R |
Mini 4KX2K DVI Fiber Receiver Manual EDID,DC5V1A |
