製品詳細
起源の場所: 中国
ブランド名: E-link
証明: CE, RoHS, FCC
モデル番号: LNK-INJ501-90
支払いと送料の条件
最小注文数量: 1pc
価格: 交渉可能
パッケージの詳細: PoEの注入器のアダプターの標準的な輸出パッケージ
受渡し時間: 5-12仕事日
支払条件: L/C,T/T,ウェスタンユニオン,マネーグラム,ペイパール
供給の能力: 1000個/月
キーワード: |
PoEインジェクターアダプター |
入力電源: |
12~48VDC （ターミナル ブロック） |
尺寸 (WxDxH): |
95 x 70 x 30のmm |
重量: |
0.25kg |
取り付けオプション: |
DINレール/壁掛け |
ケース: |
IP40アルミニウム場合 |
キーワード: |
PoEインジェクターアダプター |
入力電源: |
12~48VDC （ターミナル ブロック） |
尺寸 (WxDxH): |
95 x 70 x 30のmm |
重量: |
0.25kg |
取り付けオプション: |
DINレール/壁掛け |
ケース: |
IP40アルミニウム場合 |

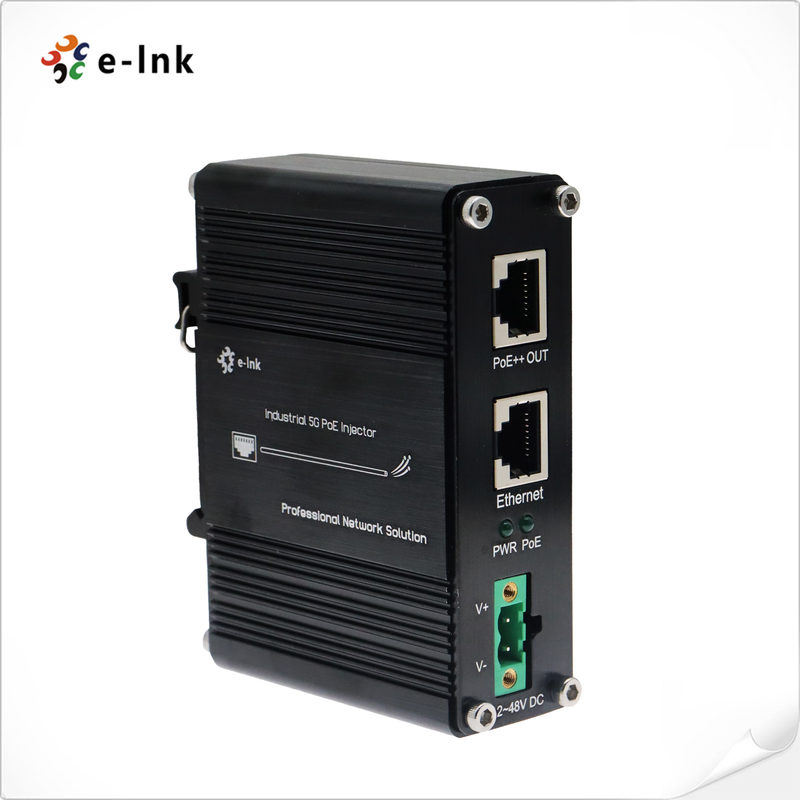

Industrial 5G 95W 802.3bt PoE++ Injector (12~48VDC)
PoE Injector Adapter Advantages
► 1 RJ45 Ethernet Data Input Port + 1 RJ45 Power over Ethernet Output Port (Data + Power)
► Support 95W LTPoE++ Power Sourcing Equipment
► Complies with IEEE 802.3at/bt PoE end-span/mid-span PSE
► Support 10/100/1000/2.5G/5G Base-TX
► Extensive LED indicators for PoE diagnostics
Technical Indexes
| Ethernet | |
| Standards: | 10/100/1000/2.5G/5G BASE-T Ethernet |
| Processing Type: | Forward |
| Half-duplex, Full-duplex | |
| Forward Filter Rate: | 7,440,000pps (5Gbps) |
| Cabling: | 10/100/1000/2.5G/5G BASE-T: CAT7 or above |
| Maximum Distance: | CAT7 UTP up to 30m |
| Connector: | 2x RJ45 |
| Environmental | |
| Operating Temperature: | -40°C to 80°C (-40°F to 176°F) |
| Storage Temperature: | -40°C to 85°C (-40°F to 185°F) |
| Relative Humidity: | 5% to 95% non-condensing |
| MTBF: | >200,000hrs |
| Electrical and Mechanical | |
| Input Power: | 12~48VDC (Terminal Block) |
| Power Consumption: | 100W Max. |
| Power over Ethernet: | |
| Standard: | IEEE 802.3bt 4-pair Power over Ethernet |
| IEEE 802.3at Power over Ethernet Plus | |
| IEEE 802.3af Power over Ethernet | |
| Port: | RJ45 |
| Power Pin Assignment |
Data provide over pairs 1,2TX and 3,6RX Power over spare pairs 1,2,4,5(+) and 3,6,7,8(-) |
| PoE Budget: |
Up to 95-watt PoE budget (48VDC) Up to 95-watt PoE budget (24VDC) Up to 60-watt PoE budget (12VDC) |
Overview
The LNK-INJ501-90 product is an Industrial hardened single-port PoE+ IEEE 802.3bt / LTPoE++ 95W 10/100/1000/2.5G/5G
Base-TX PoE Injector with 12~48V DC Input and Voltage Booster. It allows you to connect the PoE device such as camera
and access point with a non PoE LAN switch within the distance of 30m.
Application
Ordering Information
| Model | Description |
| LNK-INJ501-90 | 5G Hardened 1-port Ethernet Input + 1-port 95W PoE++ Output Injector with 12~48V DC power input |
| Mounting Options | ► Default DIN-Rail Bracket installed; Wall Mount Bracket is included. |
| Power Options | ► 120W/2.5A 48VDC Power Supply. Open Wire for Terminal Block |
| ► Power Supply is to be purchased separately. |
