製品詳細
起源の場所: 中国
ブランド名: E-link
証明: CE, RoHS, FCC, ISO9001
モデル番号: LNK-V16
ドキュメント: E-link 16-Slot Video Conver....0.pdf
支払いと送料の条件
最小注文数量: 1pcs
価格: 交渉可能
パッケージの詳細: 産業PoEスイッチ標準的なカートンの包装
受渡し時間: 7～10営業日
支払条件: L/C,T/T,ウェスタンユニオン,マネーグラム,Paypal
供給の能力: 100000個/月
重さ: |
5.4kg |
寸法（mm）: |
423×230×90 |
動作電圧: |
DC 5V |
動作温度：: |
-30°C から +55°C |
重さ: |
5.4kg |
寸法（mm）: |
423×230×90 |
動作電圧: |
DC 5V |
動作温度：: |
-30°C から +55°C |
Product Advantages
► The configuration of active/standby power supply ensures uninterruptible operation of the system.
► Provide two power supplies, enabling the system can work under many operating environments;
► Supporting simultaneous operation of 1Ch or 2Ch Card-type Video Converters, which greatly improves system adaptability;
► Supports hot swapping;
Overview

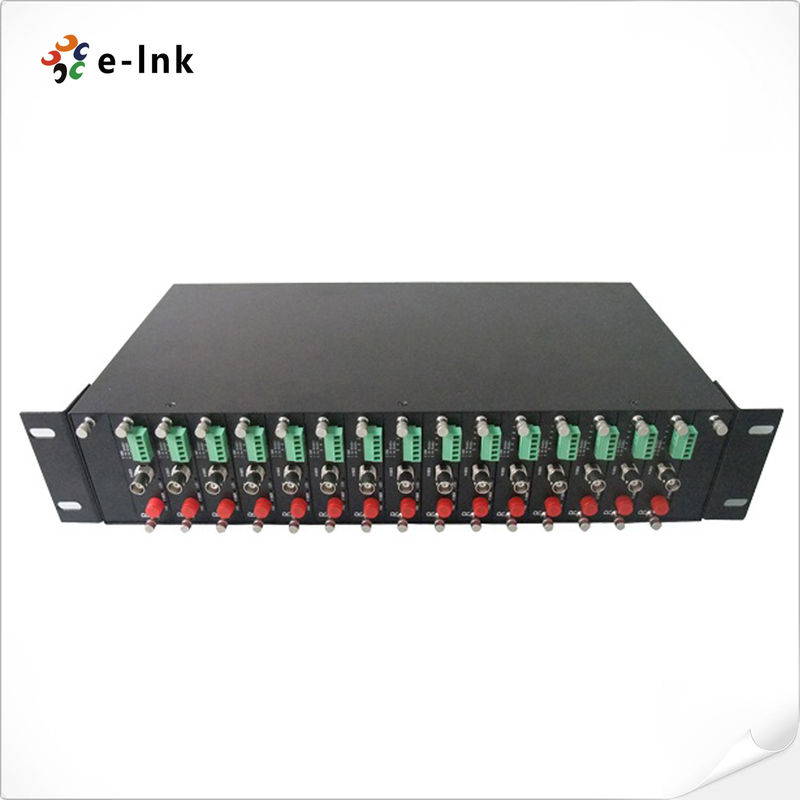

LNK-V16 Series is a kind of cost-effective video converter rack (2U) widely used in the equipment room. 1-2 channel card type video converter developed by our company can be inserted into this rack, which total slots up to 16. It is furnished with two power supplies: main power supply and spare one, and supports its automatic switch-over. All of the card-type video converters installed in the chassis are hot swappable, which makes it unnecessary to power-down the chassis when replacing card-type video converters.
Technical Indexes
|
Parameter |
Specifications |
|
Number of slots |
16 |
|
Structure |
19” 2U rack |
|
Card-type video converter support |
1Ch or 2Ch |
|
Power input |
AC Voltage: AC 100~260V; frequency: 50/60 Hz |
|
Power output |
DC5V |
|
MTBF |
> 100,000 hours |
|
Power configuration |
Single power supply; or Dual power supply for warm backup mode |
|
Dimension (mm) |
423x230x90 |
|
Weight |
5.4KG |
|
LED indication |
POWER (power supply) |
|
Operating temperature |
-30°C to +55°C |
|
Storage Temperature |
-40°C to +85°C |
|
Relative humidity |
5%~90% (non condensing) |
|
Model |
Description |
|
LNK-V16 |
19" 2U Rack-Mount Chassis, 16-Slot, 16pcs 1CH Card-type Video Receiver can be put in the Chassis, Dual Power Supply |
