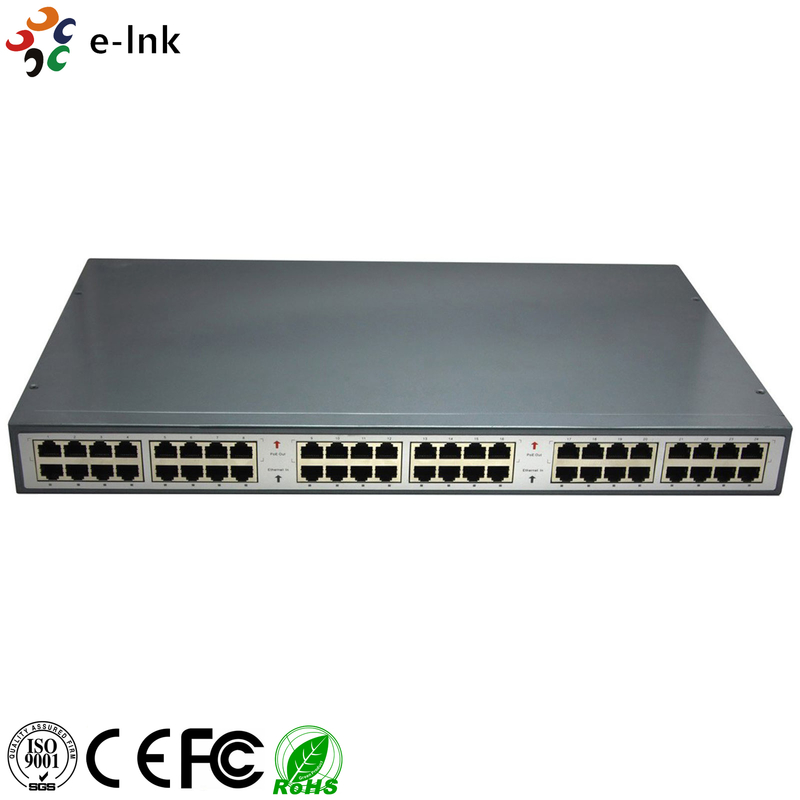

24-Port PoE Injector

Name: 24-Port PoE Injector
Brand: E-link China Technology Co.,LTD
SKU: LNK-POE224 LNK-POE224AT LNK-POE324 LNK-POE324AT
Price: 57.00 USD
Availability: InStock

製品詳細

起源の場所: 中国

ブランド名: E-link

証明: ROHS,FCC,CE

モデル番号: LNK-POE224 LNK-POE224AT LNK-POE324 LNK-POE324AT

支払いと送料の条件

最小注文数量: 1 PCS

価格: 交渉可能

パッケージの詳細: インジェクター標準エクスポートパッケージ

受渡し時間: 3-12営業日

支払条件: L/C,T/T,ウェスタンユニオン,マネーグラム,Paypal

供給の能力: 1000個/月

最良の価格を入手する

今連絡してください

仕様

記述

仕様

ハイライト:
                                                                                                                                                                                                                                                                                                                                                                                                      24-Port PoE Injector


キーワード:	POEアダプターインジェクタ	動作温度:	0～+40℃,
寸法 (W x D x H):	445X260X45(高さ×奥行き×幅)	入力電源:	90-240V AC、50-60Hz
重量:	5.5Kg	湿度:	最高。95% RH （不凝縮）

キーワード:	POEアダプターインジェクタ
動作温度:	0～+40℃,
寸法 (W x D x H):	445X260X45(高さ×奥行き×幅)
入力電源:	90-240V AC、50-60Hz
重量:	5.5Kg
湿度:	最高。95% RH （不凝縮）

記述

24-Port PoE Injector

24-Port PoE Injector Advantages

► Supply power to HD network surveillance cameras with Cat5e (PoE)

► 48x 10/100M RJ45 ports; 1x AC input port;24x PoE Ports

► AC input: 90V~264V

► Compatible with IEEE 802.3af standard(15.4W) , IEEE 802.3at standard(25.4W)

► Coming with the Ethernet network port and PoE output port

► Can supply power with the spare line pair(4/5 (+), 7/8 (-) method or the data line pair 1/2(+), 3/6(-) method

► No fan, natural heat dissipation, small, quiet design, suitable for desktop or wall

24-Port PoE Injector Overview

PoE Injector is also called as Power over Ethernet mid-span devices. 24-Port PoE injector, that is PoE power supply module, is the most flexible and the hottest products among the power supply devices. There are 24x RJ45 PoE ports for these 24-Port PoE injectors. This mid-span have 24x2 Standard RJ45 network ports, one group of network ports will use for upper Ethernet switches or other network devices, another group of network ports will support POE power supply output with network data output.

24-Port PoE Injector Technical Indexes

Parameter	Specifications
Features	Conforms to IEEE802.3af standard RJ-45 Conforms to IEEE802.3af standard RJ-45
	Data Input Interface 24RJ-45 10/100Base-TX/ Data Input Interface 24RJ-45 10/100/1000Base-TX
	Output Port Power Cable Included
Data Rate	10/100Mbps 10/100/1000Mbps
Input Power	90-240V AC ,50-60Hz
Output Power	2415.4W Max IEEE802.3af 2430W Max IEEE802.3at
Wiring	Data provide over pairs 1/2(+) and 3/6(-)
Wiring	Power over spare pairs 4/5(+) and 7/8(-)
LED Display	YES
Operating Temperature	0 to +40°C,
Humidity	Max. 95% RH(non-condensing)
Dimension	445X260X45(H×D×W)
Weight	5.5KG

24-Port PoE Injector Ordering Information

Model	Decription
LNK-POE224	24-port PoE Adapter, 10/100Mbps, IEEE 802.3af 15.4W
LNK-POE224AT	24-port PoE Adapter, 10/100Mbps, IEEE 802.3at 30W
LNK-POE324	24-port PoE Adapter, 10/100/1000Mbps, IEEE 802.3af 15.4W
LNK-POE324AT	24-port PoE Adapter, 10/100/1000Mbps, IEEE 802.3at 30W
