製品詳細
起源の場所: 中国
ブランド名: E-link
証明: ROHS,FCC,CE
モデル番号: LNK-PSE832 LNK-PSE832T LNK-PSE832G LNK-PSE832GT
支払いと送料の条件
最小注文数量: 1個のPC
価格: 交渉可能
パッケージの詳細: インジェクター標準エクスポートパッケージ
Delivery Time: 3-12 working days
Payment Terms: L/C,T/T,Western Union,MoneyGram,Paypal
供給の能力: 1000 PCS/月
キーワード: |
POEインジェクター |
Operating Temperature: |
0°～ 55°C |
寸法（w x d x h）: |
80x76x25 ((mm) |
重量: |
0.11kg |
湿度: |
10%~90%,凝縮しない |
キーワード: |
POEインジェクター |
Operating Temperature: |
0°～ 55°C |
寸法（w x d x h）: |
80x76x25 ((mm) |
重量: |
0.11kg |
湿度: |
10%~90%,凝縮しない |
► Supply power to HD network surveillance cameras with Cat5e (PoE)
► 2x RJ45 ports (10/100M or 10/100/1000M); 1x DC input port
► DC input:12V~36V
► Compatible with IEEE 802.3af standard
► Coming with the Ethernet network port and PoE output
► port, and the power input port with lighting-proof function
► Can supply power with the spare line pair(4/5 (+), 7/8 (-)
► method or the data line pair 1/2(+), 3/6(-) method
► No fan, natural heat dissipation, small, quiet design,suitable for desktop or wall

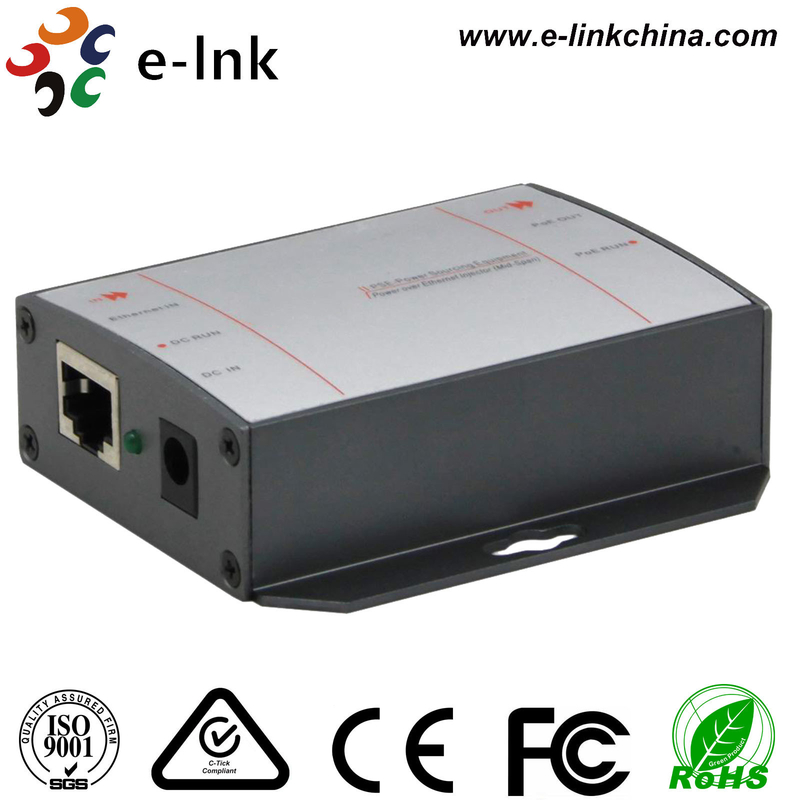

PoE Injector is also called as Power over Ethernet mid-span devices. Single port PoE injector, that is PoE power supply module, is the most flexible and the hottest products among the power supply devices. There are 2x RJ45 PoE ports for these single-port PoE injectors, one of which is the Ethernet in Port for the uplink upper switches or other upper network devices, and another is PoE Out port used as the port for network data and power output.
|
2x copper cable RJ45 ports, 1x DC input port |
|
|
PoE Power Supply |
mid-span: 4/5, 7/8 data line pair(default); end-span: 1/2,3/6 spare line pair (can be customized) |
|
Network Medium |
100BASE-TX or 1000BASE-TX: Cat5 and more UTP (≤100 meters) |
|
Thermal Protection |
>100°C |
|
Performance |
Working Rate:10/100Mbps or 10/100/1000Mbps Network port protection: meet with IEC61000-4-2(ESD) MTBF: 190,000 hours(about 21 years) |
|
PoE Standards |
IEEE802.3af IEEE802.3at |
|
LEDs Indicator |
PoE working status |
|
Power |
Total power: 16W(IEEE802.3af) 30W(IEEE802.3at) PoE port power: 15.4W(IEEE802.3af) 25.5W(IEEE802.3at) DC input voltage: 12~36V |
|
Dimensions/Weight |
LxWxH: 80x76x25(mm), 0.11kg |
|
Working Environment |
Operating Temperature: 0°～ 55°C Storage Temperature: -20°～ 75°C Working Humidity: 10%～90%, non-condensing Storage Humidity: 10%～95%, non-condensing |
|
Warranty |
CE mark, commercial, FCC Part 15 Class B, RoHS 1 year warranty |
|
Model |
Description |
|
LNK-PSE832 |
DC Input 12~36V 10/100M PoE injector, 2x RJ45 ports, IEEE802.3af, 15.4W |
|
LNK-PSE832T |
DC Input 12~36V 10/100M PoE injector, 2x RJ45 ports, IEEE802.3at, 25.5W |
|
LNK-PSE832G |
DC Input 12~36V 10/100/1000M PoE injector, 2xRJ45 ports, IEEE802.3af,15.4W |
|
LNK-PSE832GT |
DC Input 12~36V 10/100/1000M PoE injector, 2xRJ45 ports, IEEE802.3at,25.5W |
