製品詳細
Place of Origin: China
ブランド名: E-link
証明: ROHS,FCC,CE
モデル番号: LNK-WP901
支払いと送料の条件
Minimum Order Quantity: 1 pcs
価格: 交渉可能
パッケージの詳細: インジェクター標準エクスポートパッケージ
受渡し時間: 3〜12営業日
支払条件: L/C、T/T、Western Union、MoneyGram、PayPal
供給の能力: 1000 PCS/月
キーワード: |
POEインジェクター |
動作温度: |
-40°Cから80°C |
寸法（w x d x h）: |
260mm X 210mm X 80mm |
重量: |
1.5kg |
湿度: |
10%から90%の非凝縮 |
入力電源: |
48~57VDC |
キーワード: |
POEインジェクター |
動作温度: |
-40°Cから80°C |
寸法（w x d x h）: |
260mm X 210mm X 80mm |
重量: |
1.5kg |
湿度: |
10%から90%の非凝縮 |
入力電源: |
48~57VDC |
► Protection level: IP67
► 6KV(10/700us) surge protection on LAN, PoE ports
► 1 RJ45 Ethernet Data Input Port + 1 RJ45 Power over Ethernet Output Port(Data + Power)
► Support 95W LTPoE++ Power Sourcing Equipment
► Supports Wall-mount installation
► Environmentally hardened -40°C to 80°C(-40°F to 176°F) operating temperature

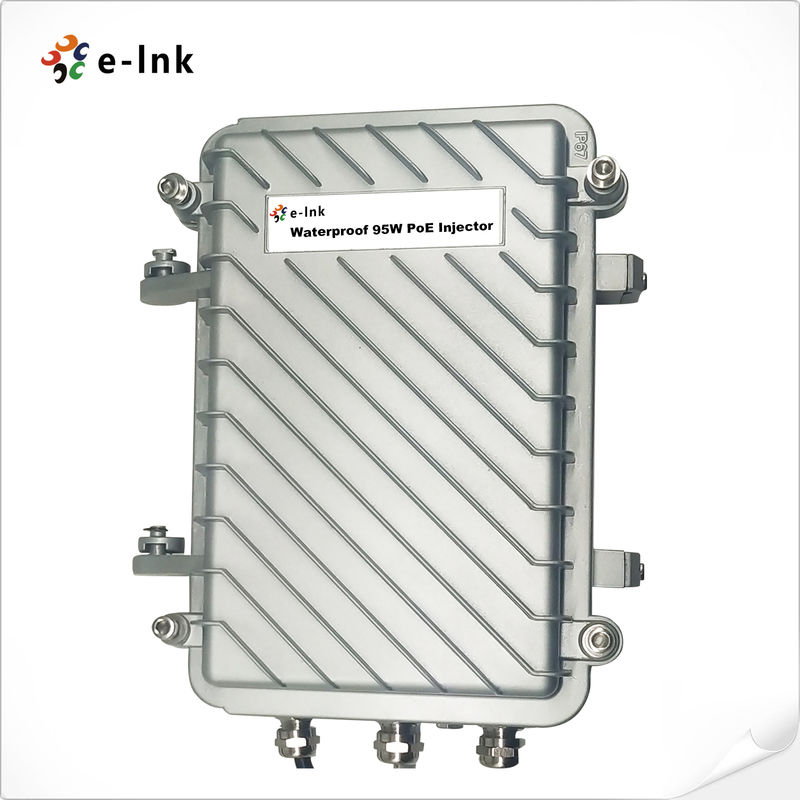

LNK-WP901 provides 95W PoE power for remote PDs over 4 pairs output with 6KV (10/700us) surge protection, fully compliant solution for outdoor installations, guaranteeing 30 Watts of power and ensuring safe and reliable operation in outdoor environment of any standard PoE data terminal. It allows wireless LAN access points, security network cameras and other IP terminals to receive power, a long with data, over standard Ethernet cables, leaving network infrastructure completely unaltered.
.
|
Parameter |
Specifications |
|
Standard |
IEEE802.3 10Base-T Ethernet IEEE802.3u 100Base-Tx Fast Ethernet IEEE802.3ab 1000Base-T Gigabit Ethernet Support terminal equipment with IEEE802.3af/at/bt, PoE++ RoHS Compliance WEEE Compliance Protection Level: IP67, IEC60529, NEMA 250 |
|
Input & Output |
Input : 48~57VDC Output: IEEE802.3bt 95W Power Pins: 4/5(+), 7/8(-) and 3/6(+),1/2(-) Data Speed: 10/100/1000Mbps |
|
Working Environment |
Operating Temperature: -40℃ to 80℃ Operating Humidity: 20% to 80%, non-condensation Storage Temperature: -40℃ to 85℃ Storage Humidity: 10% to 90%, non-condensation Operating Altitude: up to 5000meters |
|
AC Surge Protection |
Common mode surge protection(10/700us): 6KV Differential mode surge protection (10/700us): 1.5KV |
|
PoE Surge Protection |
Protected line: 1,2,3,4,5,6,7,8 Common mode surge protection(10/700us): 6KV Differential mode surge protection (10/700us): 1.5KV |
Outdoor Waterproof Industrial 95W Gigabit PoE Injector with 6KV Surge Protection Ordering Information
|
Model |
Description |
|
LNK-WP901 |
Outdoor Waterproof Industrial 95W Gigabit PoE Injector with Surge Protection |
