IP67 Waterproof Industrial Gigabit PoE Extender (1 x Input 1 x Output)

Name: IP67 Waterproof Industrial Gigabit PoE Extender (1 x Input 1 x Output)
Brand: E-link China Technology Co.,LTD
SKU: LNK-WP-IPE101
Price: 51 USD
Availability: InStock

製品詳細

起源の場所: 中国

ブランド名: E-link

証明: CE, FCC, RoHS

モデル番号: LNK-WP-IPE101

ドキュメント: E-link LNK-WP-IPE101 Waterp....0.pdf

支払いと送料の条件

最小注文数量: 1個のPC

価格: US$51

パッケージの詳細: HDMI オプティカルトランシーバー標準パッケージ

受渡し時間: 1〜3営業日

支払条件: T/T、Western Union、MoneyGram、PayPal

供給の能力: 1000ペア/月

最良の価格を入手する

今連絡してください

仕様

記述

仕様

ハイライト:
                                                                                                                                                                                                                                                                                                                                                                                                      IP67 Industrial Gigabit PoE Extender, 1 x Input Gigabit PoE Extender, 1 x Output Gigabit PoE Extender


PoE Output Port:	1 x 10/100/1000Base-TX RJ-45, M25 x 1.5 Cable Glands	PoEの電源のタイプ:	ミッドスパンとエンドスパン
入力電圧:	IEEE802.3 bt 90W	基準:	IEEE 802.3 イーサネット,IEEE 802.3u ファストイーサネット,IEEE 802.3ab ギガビットイーサネット
保管温度:	-40°Cから85°C（-40°F〜185°F）	寸法（wxdxh）:	195 x 75 x 46 mm

PoE Output Port:	1 x 10/100/1000Base-TX RJ-45, M25 x 1.5 Cable Glands
PoEの電源のタイプ:	ミッドスパンとエンドスパン
入力電圧:	IEEE802.3 bt 90W
基準:	IEEE 802.3 イーサネット,IEEE 802.3u ファストイーサネット,IEEE 802.3ab ギガビットイーサネット
保管温度:	-40°Cから85°C（-40°F〜185°F）
寸法（wxdxh）:	195 x 75 x 46 mm

記述

IP67 Waterproof Industrial Gigabit PoE Extender (1 x Input 1 x Output)

Model:LNK-WP-IPE101

Overview

IP67 Waterproof Industrial Gigabit PoE Extender (model: LNK-WP-IPE101) is a high-performance

industrial-grade network device engineered for harsh environments. As an IP67 Waterproof Industrial

Gigabit PoE Extender, it integrates Power over Ethernet technology to deliver dual functionality:

extending Gigabit Ethernet signals and supplying PoE power, making it a critical component in

industrial network deployments.

This IP67 Waterproof Industrial Gigabit PoE Extender features a 1-in 1-out design with 90W power

handling capacity, capable of extending 1000Mbps Ethernet signals up to 100 meters—effectively

overcoming distance limitations in traditional network setups. Simultaneously, it provides a stable

standard PoE power supply of 50-57V to connected communication devices, supporting seamless

operation of power-hungry equipment like high-definition cameras and industrial sensors.

What defines this IP67 Waterproof Industrial Gigabit PoE Extender is its robust industrial-grade

construction: the housing is built with rugged materials, and the terminal adopts a sealed waterproof

design, both contributing to its IP67 protection rating—ensuring complete resistance to dust ingress

and water immersion up to 1 meter for 30 minutes. Further enhancing its industrial suitability, this IP67

Waterproof Industrial Gigabit PoE Extender operates reliably within an extreme temperature range of

-40°C to 80°C, withstanding humidity, vibration, and other harsh environmental factors.

Ideal for security surveillance systems (where outdoor or damp locations are common) and network

engineering projects (requiring long-distance, reliable connections), the IP67 Waterproof Industrial

Gigabit PoE Extender ensures uninterrupted high-speed data transmission and stable power supply,

making it an indispensable solution for industrial-grade network extension needs.

Features

► IP67-rated aluminum case

► 10/100/1000Mbps Ethernet Ports

► All ports support IEEE 802.3af/at/bt standards

► 1 x Input, 1 x Output

► Enables 100-meter extension of Ethernet connectivity with PoE

► Wall-mountable design

► Wide operating temperature range: -40°C to 80°C

► No external power cable required for installation

► Plug-and-play functionality

► Supports 2K MAC address table for connecting more

► 10kB jumbo frame support in 1000Mbps full-duplex mode

Technical Indexes

Ethernet Port
PoE Input Port	1 x 10/100/1000Base-TX RJ-45, M25 x 1.5 Cable Glands
PoE Output Port	1 x 10/100/1000Base-TX RJ-45, M25 x 1.5 Cable Glands
Cascade Connection	Support 3 grade
Power over Ethernet
PoE Standard	IEEE 802.3af/at/bt
PoE Power Supply Type	Mid-span and End-span
PoE Pin Assignment	1/2(+), 3/6(-), 4/5 (+), 7/8 (-)
Input Voltage	IEEE802.3 bt 90W
PoE Output Power	Maximum 65W
Single Port PoE Output	Maximum 60W
Switch Property
Standards	IEEE 802.3 Ethernet, IEEE 802.3u Fast Ethernet, IEEE 802.3ab Gigabit Ethernet
Forwarding Modes	Store and Forward
Transmission Distance	Each extender extends by 100m, max 3 grade Cascade, total 400m.
MAC Table	2K
Switching Capacity	6Gbps
Packet Forwarding Rate	4.46Mpps
Flow Control	IEEE 802.3x pause frame for full duplex, Back pressure for half duplex
Jumbo Frame	10K bytes
Environment
Surge Immunity	6KV, Standard: IEC
ESD Protection	6kV Contact Discharge; 8kV Air Standard: IEC 61000-4-2
Protection Level	IP 67
Explosion-Proof Rating	IK10
Operating Temperature	-40°C to 80°C (-40°F to 176°F)
Storage Temperature	-40°C to 85°C (-40°F to 185°F)
Operating Humidity	0~95% (non-condensing)
Physical Parameter

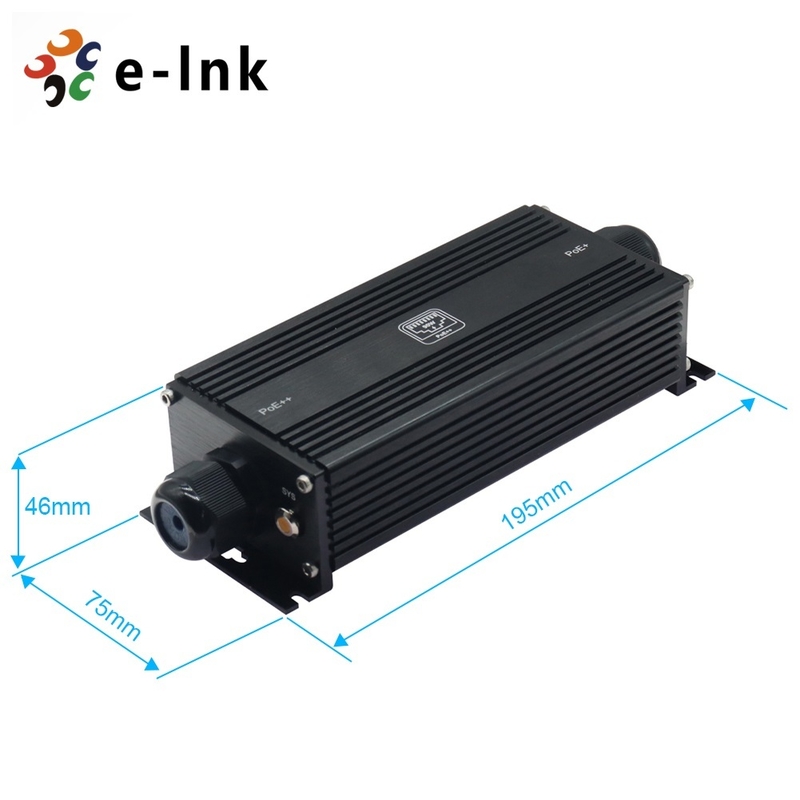

Dimensions (WxDxH)	195 x 75 x 46 mm
Weight	0.6 kg
Casing	Aluminum Case
Mounting Options	Wall-mount
Certiﬁcations
Certiﬁcations	CE, FCC, RoHS

Ordering Information

Model	Description
LNK-WP-IPE101	IP67 Waterproof Industrial Gigabit PoE Extender 1 x Input 1 x Output
Mounting Options	Wall Mount Bracket is included.

Application

IP67 Waterproof Industrial Gigabit PoE Extender (1 x Input 1 x Output) 0

IP67 Waterproof Industrial Gigabit PoE Extender (1 x Input 1 x Output) 1

IP67 Waterproof Industrial Gigabit PoE Extender (1 x Input 1 x Output) 2
