製品詳細
起源の場所: 中国
ブランド名: E-link
証明: Iso9001, CE, ROHS, FCC
モデル番号: LNK-3011WSFP
ドキュメント: E-link LNK-3011WSFP SFP Med....0.pdf
支払いと送料の条件
最小注文数量: 1pcs
価格: US$16 -US$20
パッケージの詳細: ファイバーメディアコンバーター標準カートンパッケージ
受渡し時間: 1〜3営業日
支払条件: T/T、Western Union、MoneyGram、PayPal
供給の能力: 10000/月
アクセスモード: |
10/100/1000Mbpsギガビットイーサネット |
電源: |
外部電力：AC90〜240V入力、5V2A出力 |
ber: |
<10-9 |
mtbf: |
100,000時間 |
温度の維持: |
-40〜70ºC |
寸法（w x d x h）: |
71 x 94 x 26 mm |
アクセスモード: |
10/100/1000Mbpsギガビットイーサネット |
電源: |
外部電力：AC90〜240V入力、5V2A出力 |
ber: |
<10-9 |
mtbf: |
100,000時間 |
温度の維持: |
-40〜70ºC |
寸法（w x d x h）: |
71 x 94 x 26 mm |

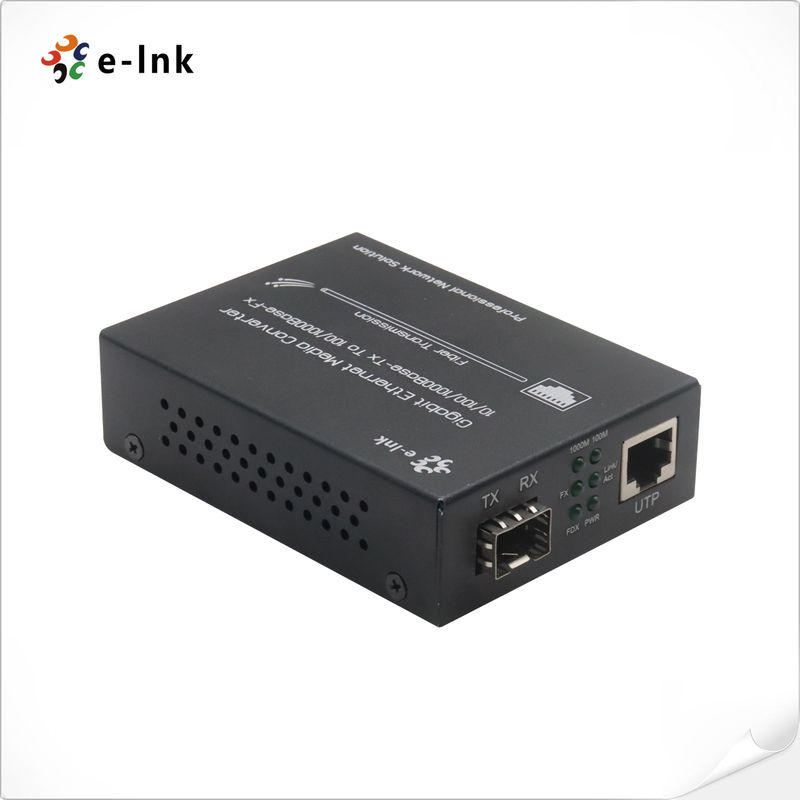

Model: LNK-3011WSFP
Overview
Features
► Supporting inter-conversion between adaptive
► 10Base-T/100Base-TX/1000Base-T with 1000Base-SX/LX
► Use Port 10/100/1000Base-TX (RJ45), 1000Base-SX/LX (SFP slot)
► Supporting full-duplex and half-duplex and its auto-sensed
► Supporting auto-sense of MDI/MDI-X, facilitating system commissioning and installation
► Supporting the transmission of extra-long VLAN packets
► Supporting Quality of Service (QoS) and ensuring the transmission of VoIP packets
Technical Indexes
| Parameter | Specifications |
| Access mode | 10/100/1000Mbps Gigabit Ethernet |
| Standard | IEEE802.3 10Base-T Ethernet, IEEE802.3u 100Base-TX/FX Fast Ethernet, IEEE802.3ab 1000Base-T , IEEE802.3z 1000Base-SX/LX Gigabit Ethernet |
| Wavelength | 850nm/1310nm/1550nm |
| Transmission distance | multi-mode Dual-fiber: 220m (62.5/125μm)/550m (50/125μm) |
| single mode Dual-fiber: 20/40/60/80 Km | |
| single mode Single fiber: 20/40/60/80 Km | |
| Category-5 twisted pairs: 100m | |
| Port | One RJ45 port: for connecting with STP/UTP category-5 twisted pairs |
| One optical port: SFP 3.3V | |
| Conversion means | Media conversion |
| BER | <10-9 |
| MTBF | 100,000 hours |
| LED indicator | POWER (power supply), FX LINK (optical link action), TP LINK1000 (TP cable rate1000M), TP LINK100 (TP cable rate 100M), TP ACT (TP cable packet forwarding action) |
| Power supply | External Power: AC90~240V input, 5V2A output |
| Power consumption | 5W |
| Operating temperature | -10~55ºC |
| Operating humidity | 5%~90% |
| Maintaining temperature | -40~70ºC |
| Maintaining humidity | 5% ~ 90% non-condensing |
| Dimensions (W x D x H) | 71 x 94 x 26 mm |
Order Information
| Model | Description |
| LNK-3011WSFP | 10/100/1000Base-T to 1000Base-F,SFP slot, excl. SFP module, standalone, external power adaptor |
