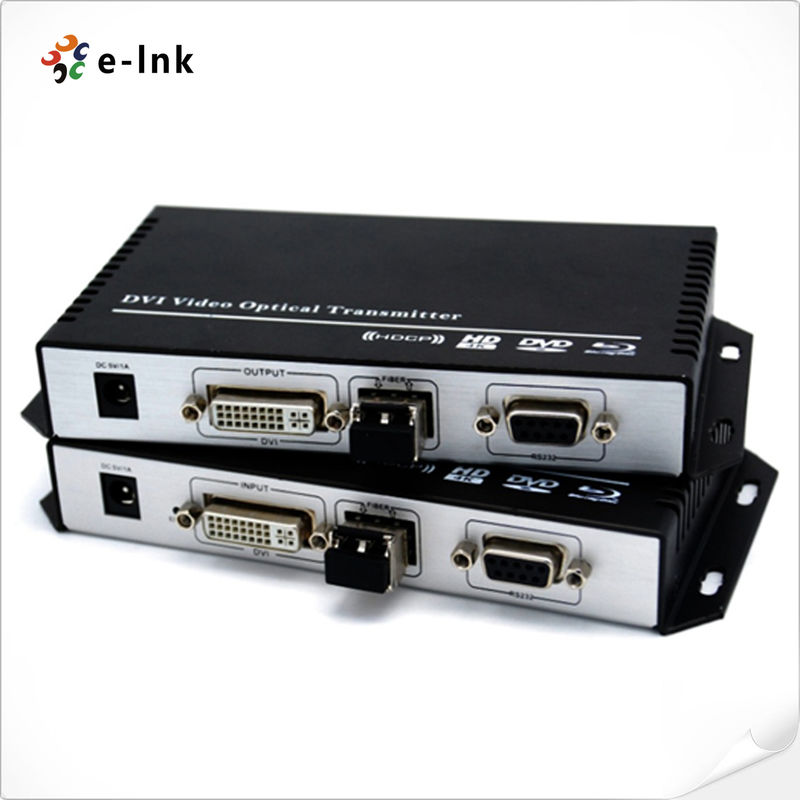

DVI Optical Transceiver (No Compression)

DVI Optical Transceiver (No Compression)

DVI Optical Transceiver (No Compression) Advantages

l Broadcast quality, civilian price

l Full digital, zero compression and zero delayed

l Support the transfer rate of 10 G bps

l The highest resolution: 1920 * 1080 @ 120Hz 4 k * 2 k @ 30 Hz

l Support 3D

l Support HDCP standard

l Compatible with transmission of DVI signal

l Support hot plugging of DVI interface

l Support unvarnished transmission of RS232 serial port data

l Low energy consumption, long distance,

l Plug and play, do not need to set

DVI Optical Transceiver (No Compression) Overview

This product is a broadcast level high-definition DVI optical transceiver, converting DVI signal into 10G difference signal through the patent conversion chip. The optical module and optical fiber are used to send and receive, which realized remote transmission of DVI multimedia signal. Through light module of different transmission distance, it realized the long distance transmission as far as 60 km. This transmission product has no loss, no transmission delay and can meet various requirements of HD long distance transmission. It supports DVI and 3D video signal transmission. The EDID can be reversed and it supports HDCP. The resolution can respectively up to 720 p / 60 Hz, 1080 I / 60 Hz, 1080 p /30 Hz, 1080 p / 60 Hz, 1080 p / 120 Hz and it supports 7.1 -channel PCM surround sound and audio compression. supports hot plugging of DVI interface and with low energy consumption and long distance. It has no compression, zero delay, plug and play and the compatibility is strong, so it can achieve a more accurate display. 850 nm multi-mode and 1310 nm single-mode fiber model are provided.

DVI Optical Transceiver (No Compression) Technical Indexes

l Support the computer resolution as high as 1920 x 1200 @ 60 Hz;

l Support HDTV resolution as high as 1080 p;

l Support 1-way DVI terminal input; Support 1-way DVI terminal output

l Optical fiber using LC interface; Support hot plugging;

l Using one-core or two-core single mode fiber;

l The transmission cable distance should be less than 10 meters for the effective DVI input and output

l Equipment supports plug and play without any parameter setting.

l Input/output TDMS signal bandwidth: 1.65Gpbs

l Input/output TDMS signal voltage: 1.2 volts p - p

l Input DDC signal voltage: 5 volts p - p (TTL)

l The general specification:

l External power supply: 100 VAC - 240 VAC 50 to 60 Hz to 12 VDC, 1A

l Power input requirements: 5-12 VDC, 1A
