製品詳細
起源の場所: 中国
ブランド名: E-link
証明: CE, RoHS, FCC, ISO9001
モデル番号: LNK-POE200
ドキュメント: E-link PoE Adapter (Injecto....0.pdf
支払いと送料の条件
最小注文数量: 1pcs
価格: 交渉可能
パッケージの詳細: 産業PoEスイッチ標準的なカートンの包装
受渡し時間: 7-10営業日
支払条件: L/C、T/T、Western Union、MoneyGram、PayPal
供給の能力: 100000個/月
動作温度：: |
0～+40℃, |
出力電力: |
15.4W マックス IEEE802.3af,30W マックス IEEE802.3at |
湿度: |
最高。95% RH （不凝縮） |
寸法: |
61×40×12 （H×D×W） |
LEDディスプレイ: |
はい |
重さ: |
200g |
動作温度：: |
0～+40℃, |
出力電力: |
15.4W マックス IEEE802.3af,30W マックス IEEE802.3at |
湿度: |
最高。95% RH （不凝縮） |
寸法: |
61×40×12 （H×D×W） |
LEDディスプレイ: |
はい |
重さ: |
200g |
Product Advantages
· Up to 15.4W/30W of PoE Power
· Fully IEEE802.3af/IEEE802.3at compliant
· Supports 10/100M or 10/100/1000M LAN environment
· Plug & Play
· No configuration required
· Reduced Installation cost
· Safe and Reliable Power to WLAN Access Points
· Automatic Detection and Protection of Non–standard Ethernet Terminals
Overview

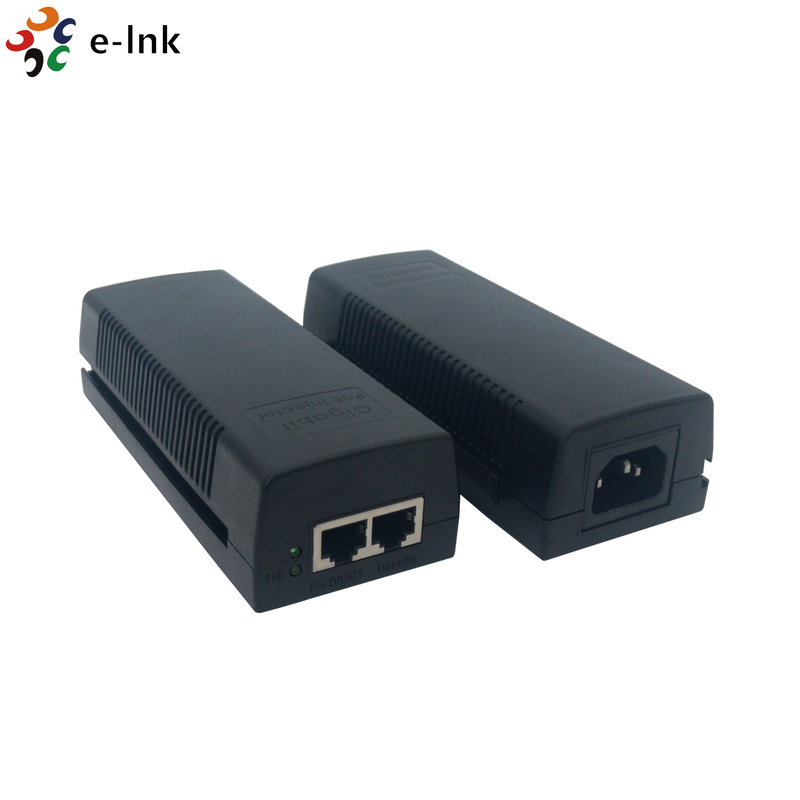

The LNK-POE200/LNK-POE300 Power over Ethernet (PoE) adapter is designed to supply operational power to surveillance cameras and wireless LAN devices such as access points, bridges and routers. It enables power current to travel on the Ethernet network cable, thus eliminates the need to directly connect a power supply to the wireless LAN device. Power and Data are combined on a single cable, thus eliminating the need for extra power lines and also reducing installation costs and manpower.
Technical Indexes
|
Parameter |
Specifications |
|
Features |
• Conforms to IEEE802.3af standard RJ-45 • Conforms to IEEE802.3af standard RJ-45 |
|
• Data Input Interface RJ-45 10/100Base-TX/ • Data Input Interface RJ-45 10/100/1000Base-TX |
|
|
• Output Port Power Cable Included |
|
|
Data Rate |
10/100Mbps 10/100/1000Mbps |
|
Input Power |
90-240V AC ,50-60Hz |
|
Output Power |
15.4W Max IEEE802.3af 30W Max IEEE802.3at |
|
Wiring |
|
|
• Power over spare pairs 4/5(+) and 7/8(-) |
|
|
LED Display |
YES |
|
Operating Temperature |
0 to +40°C, |
|
Humidity |
Max. 95% RH(non-condensing) |
|
Dimension |
61×40×12(H×D×W) |
|
Weight |
200g |
Ordering Information
|
Model |
Decription |
|
LNK-POE200 |
PoE Adapter, 10/100Mbps, IEEE 802.3af 15.4W |
|
LNK-POE200AT |
PoE Adapter, 10/100Mbps, IEEE 802.3at 30W |
|
LNK-POE300 |
PoE Adapter, 10/100/1000Mbps, IEEE 802.3af 15.4W |
|
LNK-POE300AT |
PoE Adapter, 10/100/1000Mbps, IEEE 802.3at 30W |
Application
