製品詳細
起源の場所: 中国
ブランド名: E-link
証明: CE, RoHS, FCC, ISO9001
モデル番号: LNK-POE216
ドキュメント: E-link 16-port PoE Injector....0.pdf
支払いと送料の条件
最小注文数量: 1pcs
価格: 交渉可能
パッケージの詳細: 産業PoEスイッチ標準的なカートンの包装
受渡し時間: 7-10営業日
支払条件: L/C、T/T、Western Union、MoneyGram、PayPal
供給の能力: 100000個/月
重さ: |
5.5Kg |
インターネット標準: |
NO IEEE802.3AF/802.3AT に準拠する |
動作温度：: |
0~40°C (32~104°F) |
保証: |
3年 |
サイズ: |
445X260X45(高さ×奥行き×幅) |
湿度の動作: |
10~90% 凝縮しない |
重さ: |
5.5Kg |
インターネット標準: |
NO IEEE802.3AF/802.3AT に準拠する |
動作温度：: |
0~40°C (32~104°F) |
保証: |
3年 |
サイズ: |
445X260X45(高さ×奥行き×幅) |
湿度の動作: |
10~90% 凝縮しない |

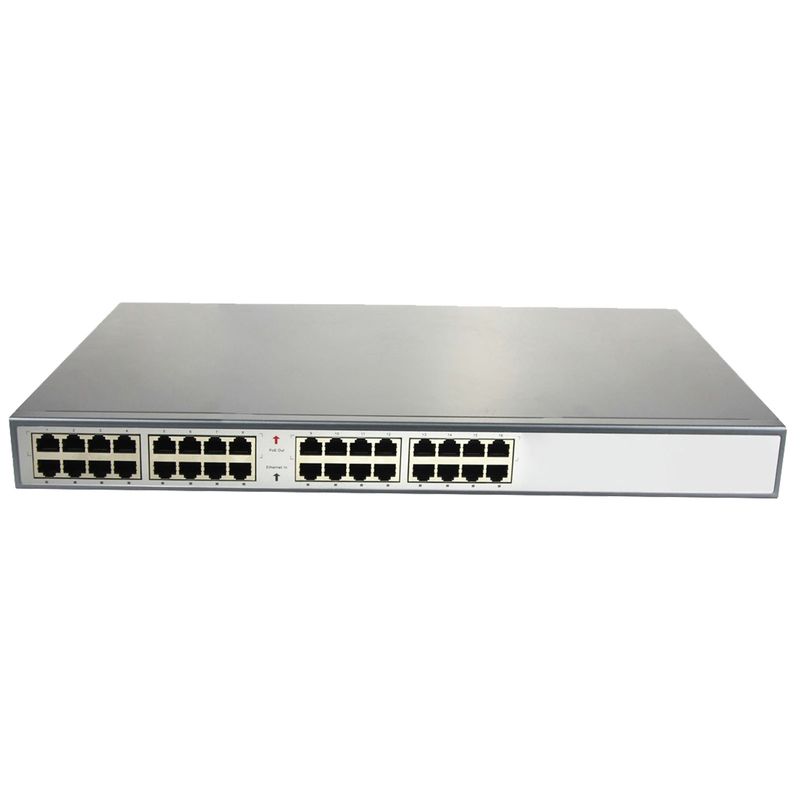

LNK-POE216 Series & LNK-POE316 Series 16-Port PoE Injector
Product Advantages
► Supply power to HD network surveillance cameras with Cat5e (PoE)
► 32x 10/100M RJ45 ports; 1x AC input port;16x PoE Ports
► AC input: 90V~264V
► Compatible with IEEE 802.3af standard(15.4W) , IEEE 802.3at standard(25.4W)
► Coming with the Ethernet network port and PoE output port, and the power input port with lighting-proof function (meet the secondary lightning protection)
► Can supply power with the spare line pair(4/5 (+), 7/8 (-) method or the data line pair 1/2(+), 3/6(-) method
► No fan, natural heat dissipation, small, quiet design, suitable for desktop or wall
► Automatic Detection and Protection of Non–standard Ethernet Terminals
Overview
PoE Injector is also called as Power over Ethernet mid-span devices. 16-Port PoE injector, that is PoE power supply module, is the most flexible and the hottest products among the power supply devices. There are 16x RJ45 PoE ports for these 16-Port PoE injectors. This mid-span have 16x2 Standard RJ45 network ports, one group of network ports will use for upper Ethernet switches or other network devices, another group of network ports will support POE power supply output with network data output.
Technical Indexes
|
Parameter |
Specifications |
|
Features |
Conforms to IEEE802.3af standard RJ-45 Conforms to IEEE802.3af standard RJ-45 |
|
Data Input Interface 16*RJ-45 10/100Base-TX/ Data Input Interface 16*RJ-45 10/100/1000Base-TX |
|
|
Output Port Power Cable Included |
|
|
Data Rate |
10/100Mbps 10/100/1000Mbps |
|
Input Power |
90-240V AC ,50-60Hz |
|
Output Power |
16*15.4W Max IEEE802.3af 16*30W Max IEEE802.3at |
|
Wiring |
Data provide over pairs 1/2(+) and 3/6(-) |
|
Power over spare pairs 4/5(+) and 7/8(-) |
|
|
LED Display |
YES |
|
Operating Temperature |
0 to +40°C, |
|
Humidity |
Max. 95% RH(non-condensing) |
|
Dimension |
445X260X45(H×D×W) |
|
Weight |
5.5KG |
Ordering Information
|
Model |
Decription |
|
LNK-POE216 |
|
|
LNK-POE216AT |
16-port PoE Adapter, 10/100Mbps, IEEE 802.3at 30W |
|
LNK-POE316 |
16-port PoE Adapter, 10/100/1000Mbps, IEEE 802.3af 15.4W |
|
LNK-POE316AT |
16-port PoE Adapter, 10/100/1000Mbps, IEEE 802.3at 30W |
