製品詳細
起源の場所: 中国
ブランド名: E-link
証明: CE, RoHS, FCC, ISO9001
モデル番号: LNK-PSE832
ドキュメント: E-link LNK-PSE832 Series 12....0.pdf
支払いと送料の条件
最小注文数量: 1pcs
価格: 交渉可能
パッケージの詳細: 産業PoEスイッチ標準的なカートンの包装
受渡し時間: 7-10営業日
支払条件: L/C、T/T、Western Union、MoneyGram、PayPal
供給の能力: 100000個/月
保証: |
CEマーク,商用品,FCC Part 15 Class B,RoHS1年間の保証 |
動作温度：: |
0℃～55℃ |
重量: |
0.11kg |
動作湿度: |
10%~90%,凝縮しない |
寸法（w×d×h）：: |
80x76x25 ((mm) |
保証: |
CEマーク,商用品,FCC Part 15 Class B,RoHS1年間の保証 |
動作温度：: |
0℃～55℃ |
重量: |
0.11kg |
動作湿度: |
10%~90%,凝縮しない |
寸法（w×d×h）：: |
80x76x25 ((mm) |
Product Advantages
► Supply power to HD network surveillance cameras with Cat5e (PoE)
► 2x RJ45 ports (10/100M or 10/100/1000M); 1x DC input port
► DC input:12V~36V
► Compatible with IEEE 802.3af standard
► Coming with the Ethernet network port and PoE output
► port, and the power input port with lighting-proof function
► Can supply power with the spare line pair(4/5 (+), 7/8 (-)
► method or the data line pair 1/2(+), 3/6(-) method
► No fan, natural heat dissipation, small, quiet design,suitable for desktop or wall

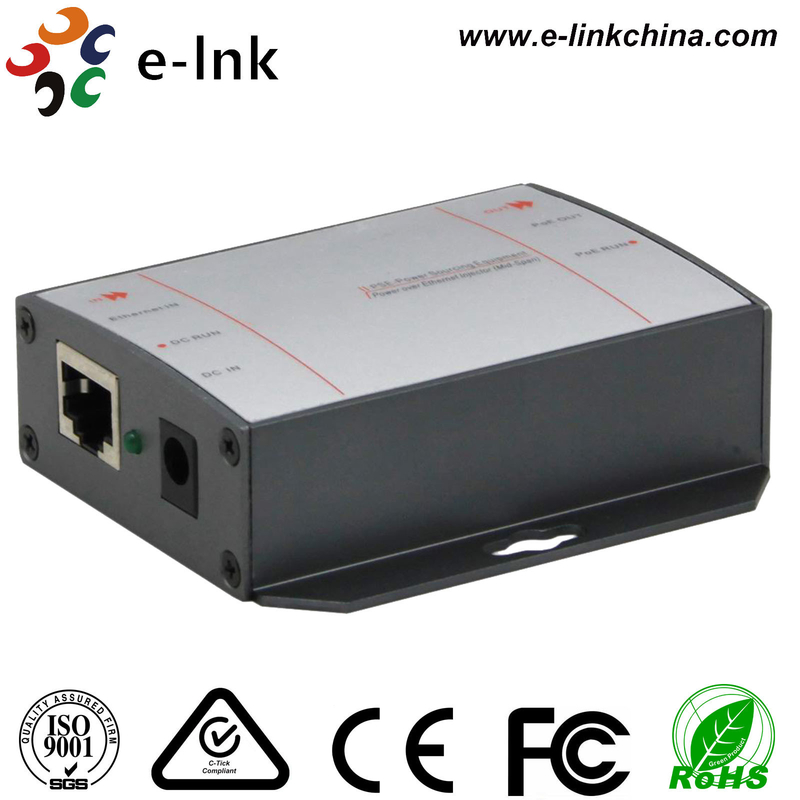

Overview
PoE Injector is also called as Power over Ethernet mid-span devices. Single port PoE injector, that is PoE power supply module, is the most flexible and the hottest products among the power supply devices. There are 2x RJ45 PoE ports for these single-port PoE injectors, one of which is the Ethernet in Port for the uplink upper switches or other upper network devices, and another is PoE Out port used as the port for network data and power output.
Technical Indexes
|
2x copper cable RJ45 ports, 1x DC input port |
|
|
PoE Power Supply |
mid-span: 4/5, 7/8 data line pair(default); end-span: 1/2,3/6 spare line pair (can be customized) |
|
Network Medium |
100BASE-TX or 1000BASE-TX: Cat5 and more UTP (≤100 meters) |
|
Thermal Protection |
>100°C |
|
Performance |
Working Rate:10/100Mbps or 10/100/1000Mbps Network port protection: meet with IEC61000-4-2(ESD) MTBF: 190,000 hours(about 21 years) |
|
PoE Standards |
IEEE802.3af IEEE802.3at |
|
LEDs Indicator |
PoE working status |
|
Power |
Total power: 16W(IEEE802.3af) 30W(IEEE802.3at) PoE port power: 15.4W(IEEE802.3af) 25.5W(IEEE802.3at) DC input voltage: 12~36V |
|
Dimensions/Weight |
LxWxH: 80x76x25(mm), 0.11kg |
|
Working Environment |
Operating Temperature: 0°～ 55°C Storage Temperature: -20°～ 75°C Working Humidity: 10%～90%, non-condensing Storage Humidity: 10%～95%, non-condensing |
|
Warranty |
CE mark, commercial, FCC Part 15 Class B, RoHS 1 year warranty |
Ordering Information
|
Model |
Description |
|
LNK-PSE832 |
DC Input 12~36V 10/100M PoE injector, 2x RJ45 ports, IEEE802.3af, 15.4W |
|
LNK-PSE832T |
DC Input 12~36V 10/100M PoE injector, 2x RJ45 ports, IEEE802.3at, 25.5W |
|
LNK-PSE832G |
DC Input 12~36V 10/100/1000M PoE injector, 2xRJ45 ports, IEEE802.3af,15.4W |
|
LNK-PSE832GT |
DC Input 12~36V 10/100/1000M PoE injector, 2xRJ45 ports, IEEE802.3at,25.5W |
