Wall Mount Passive POE Injector

製品詳細

起源の場所: 中国

ブランド名: E-link

証明: CE, FCC

モデル番号: LNK-POE200W

ドキュメント: E-link LNK-PSW Series PoE I....0.pdf

支払いと送料の条件

最小注文数量: 1pcs

価格: 交渉可能

パッケージの詳細: 産業PoEスイッチ標準的なカートンの包装

受渡し時間: 7-10営業日

支払条件: L/C、T/T、Western Union、MoneyGram、PayPal

供給の能力: 100000個/月

最良 の 価格 を 入手 する
今連絡してください
仕様
ハイライト:

Wall Mount Passive POE Injector

,

Passive POE Injector

,

Wall Mount POE Injector

動作温度::
0~40°C (32°F~104°F)
サイズ (LxWxH)::
84×47×31mm
ケース:
金属ケース
重さ:
120g
湿度:
最高。95% RH (不凝縮)
出力電力:
24W/48W オプション
動作温度::
0~40°C (32°F~104°F)
サイズ (LxWxH)::
84×47×31mm
ケース:
金属ケース
重さ:
120g
湿度:
最高。95% RH (不凝縮)
出力電力:
24W/48W オプション
記述

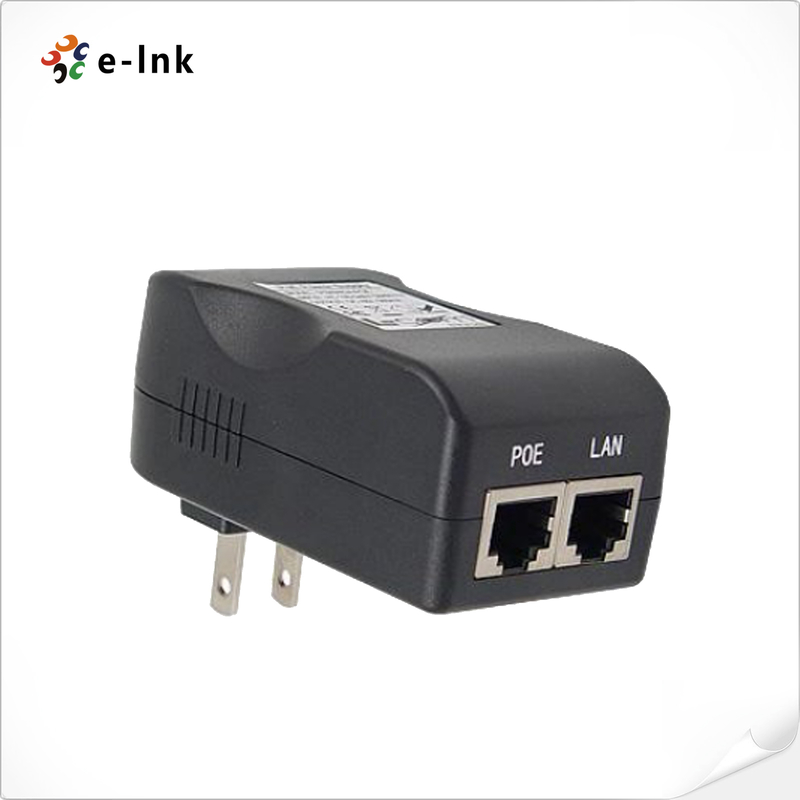

Wall Mount Passive POE Injector

95W SFP PoE Injector

Product Advantages

► Compact wall mount design

► No additional power cables required

► Built in protection circuits

► Supports 10/100M or 10/100/1000M LAN environment

► Plug & Play

► No configuration required

► Reduced Installation cost

► Safe and Reliable Power to WLAN Access Points

► Automatic Detection and Protection of Nonstandard Ethernet Terminals

Overview

E-link wall mount PoE injector is completely self-contained, a separate power supply and injector is not required. It can be plugged directly into a wall electrical outlet, eliminating the need for additional power cables. The compact size makes it ideal for crowded equipment enclosures.


Technical Indexes

Parameter

Specifications

Data Rate

10/100Mbps

10/100/1000Mbps

Connectors

2xRJ45 Jacks

Input Power

90-240V AC ,50-60Hz

Output Voltage

12V/24V/48V/52V/56VDC optional

Output Current

0.5A/0.8A/0.9A/1.0A/2.0A Optional

Output Power

24W/48W optional

Wiring

Data provide over pairs 1/2(+) and 3/6(-)

• Power over spare pairs 4/5(+) and 7/8(-)

LED Display

YES

Over Load Protection

115%-150% of Rated Power

Operating Temperature

0 to +40°C (32°F to 104°F)

Operating Humidity

Max. 95% RH(non-condensing)

Dimension (LxWxH)

84×47×31mm

Weight

120g



Ordering Information

Model

Decription

LNK-POE200W

Wall Mount PoE Injector, 10/100Mbps, IEEE 802.3af 15.4W

LNK-POE200WT

Wall Mount PoE Injector, 10/100Mbps, IEEE 802.3at 30W

LNK-POE300W

Wall Mount PoE Injector, 10/100/1000Mbps, IEEE 802.3af 15.4W

LNK-POE300WT

Wall Mount PoE Injector, 10/100/1000Mbps, IEEE 802.3at 30W
