製品詳細
Place of Origin: China
ブランド名: E-link
証明: CE，FCC
Model Number: LNK-DAN-D1
ドキュメント: E-link LNK-DAN-D1 Dante Don....0.pdf
支払いと送料の条件
Minimum Order Quantity: 1pcs
価格: 交渉可能
Packaging Details: Industrial PoE Switch Standard Carton Packaging
Delivery Time: 7-10 working days
Payment Terms: L/C,T/T,Western Union,MoneyGram,PayPal
Supply Ability: 100000PCS/Month
Size: |
115x 34 x 28 mm |
Weight: |
70g |
Operating temperature: |
-5 to +55℃ |
CasingCasingCasingCasingCasing: |
Aluminum Case |
Mounting Options:: |
DIN-Rail / Wall-mount |
Power: |
802.3af PoE |
Size: |
115x 34 x 28 mm |
Weight: |
70g |
Operating temperature: |
-5 to +55℃ |
CasingCasingCasingCasingCasing: |
Aluminum Case |
Mounting Options:: |
DIN-Rail / Wall-mount |
Power: |
802.3af PoE |
Product Advantages
► Plug and play.
► 24-bit audio support.
► 2x1 Audio Channels
► Support power via IEEE802.3af PoE Injector
Overview

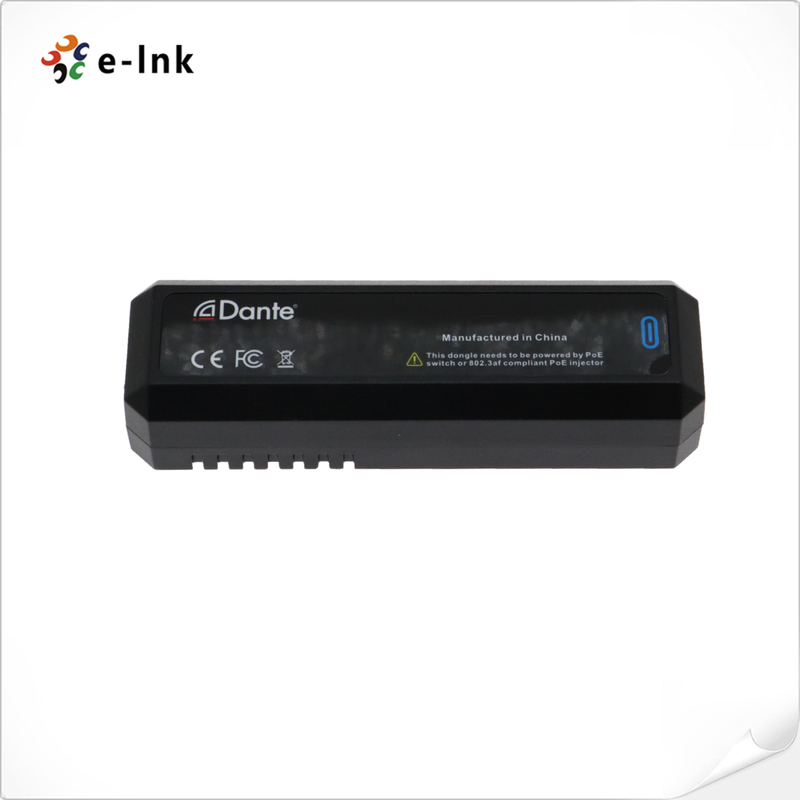

The LNK-DAN-D1 Converter can connects to your Dante network and supports 2x2 channels of bi-directional audio, allowing PCs and mobile devices to playout and receive audio with your Dante device using a USB-A/C connection.
Technical Indexes
|
Port |
|
|
RJ45 Port |
Network communication port. Green light on indicates system is ready Yellow light flash indicates link/data traffic. When click the "Recognize" button (an eye-shaped symbol) on the Dante controller, Green light will flash to identify the device. |
|
USB-C Port |
1 x USB-C port, compatible with USB 2.0 devices. |
|
Dante |
|
|
Power |
802.3af PoE |
|
Sample Rate |
48 kHz |
|
Bit Depth |
24 |
|
Type |
USB 2X2 |
|
General |
|
|
Operation Temperature |
-5 to +55℃ |
|
Storage Temperature |
-25 to +70℃ |
|
Power Consumption |
9W(Max) |
|
Dimension (W*H*D) |
115x 34 x 28 mm |
|
Cable length |
20cm |
|
Net Weight |
70g |
|
Model |
Description |
|
LNK-DAN-D1 |
Dante Dongle USB I/O, Digital Audio USB Bi-directional Converter, Including 1 x Type-C to Type-C cable and 1 x Type-C to Type-A cable |
