製品詳細
Place of Origin: China
ブランド名: E-link
証明: ISO9001, CE, FCC, RoHS
Model Number: LNK-SSP
ドキュメント: E-link HD 3G SDI to HDMI Co....0.pdf
支払いと送料の条件
Minimum Order Quantity: 1pcs
価格: 交渉可能
Packaging Details: Industrial PoE Switch Standard Carton Packaging
Delivery Time: 7-10 working days
Payment Terms: L/C,T/T,Western Union,MoneyGram,PayPal
Supply Ability: 100000PCS/Month
Dimensions (LxWxH): |
82 x 87 x 28 mm |
Weight: |
9.8Kg (including Transmitter & Receiver) |
Working Temperature: |
-10℃～+60℃ |
Power Input: |
DC 5V |
Mounting Options:: |
Desktop/Wall mount |
Power consumption: |
<3W |
Dimensions (LxWxH): |
82 x 87 x 28 mm |
Weight: |
9.8Kg (including Transmitter & Receiver) |
Working Temperature: |
-10℃～+60℃ |
Power Input: |
DC 5V |
Mounting Options:: |
Desktop/Wall mount |
Power consumption: |
<3W |
Product Advantages
► Support SD-SDI, HD-SDI, 3G-SDI input;
► Support 1ch SDI loop-out;
► Directly compatible with HD-SDI camera systems
► Use dedicated clock recovery circuit for repeater use;
► Adaptive SDI input resolution
► Audio and image sync output to HDMI interface;
► Built-in ESD protection circuit to prevent static damage;
► LED Status Indication to monitor the working conditions;
► Easy to install, plug and play;
Overview

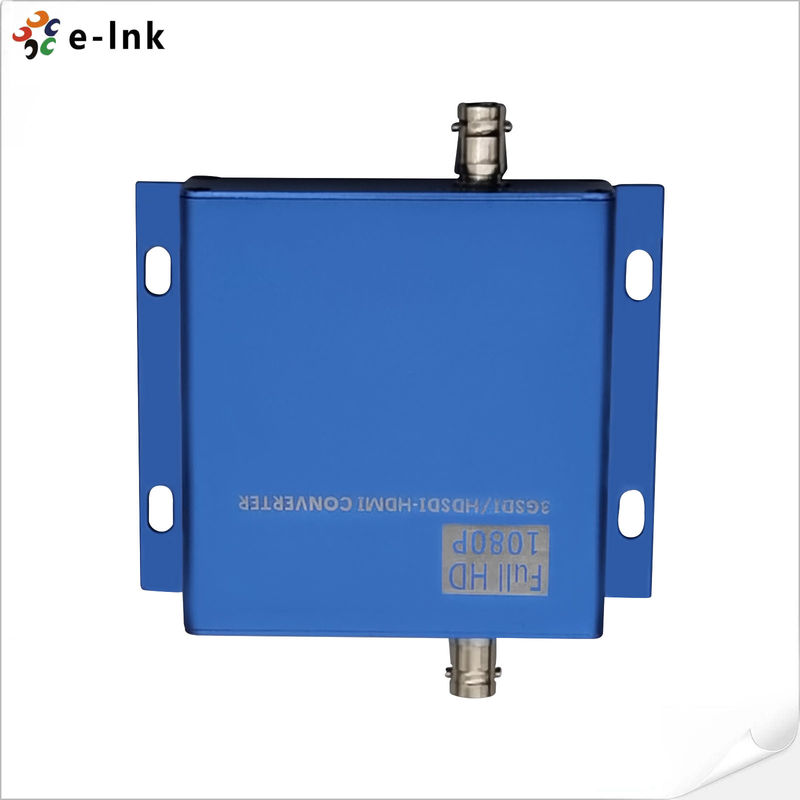

The SDI-HDMI Converter is a device designed to convert a single HD digital interface (3G-SDI) signal into an HDMI signal. At the same time, the audio signal of the SDI is separated and embedded into the HDMI signal to realize the audio and image synchronous transmission It’s widely used in security system, video conference, broadcasting and live Events etc.
Technical Indexes
|
Video Input |
|
|
Video interface |
BNC/75Ω |
|
Video Bits Rate |
Max 3.2Gb/s |
|
Differential gain (10%～90% APL) |
<1% |
|
Resolution |
Max 1080P@60Hz |
|
SDI standard |
270Mbps (SD-SDI), 1.485Gbps/M(HD-SDI) |
|
SMPTE425M3Gb/s Mapping(3G-SDI) |
|
|
SMPTE424M 3Gb/s serial interface(3G-SDI) |
|
|
Video Output |
HDMI |
|
Electrical |
|
|
Power Input |
DC 5V |
|
Power consumption |
<3W |
|
LED Indicator |
SDI |
|
Power/HDMI |
|
|
Mechanical |
|
|
Dimensions (LxWxH) |
82 x 87 x 28 mm |
|
Weight |
160g |
|
Casing |
Aluminum Case |
|
Mounting Options |
Desktop/Wall mount |
|
Environmental |
|
|
Working Temperature |
-10℃～+60℃ |
|
Storage Temperature |
-40℃～+80℃ |
|
Working Humidity |
0~95% |
|
MTBF |
≥100000 hours |
