製品詳細
Place of Origin: China
ブランド名: E-link
証明: ISO9001, CE, FCC, RoHS
Model Number: LNK-FSB-D-12SC
ドキュメント: E-link 12SC Duplex DIN-Rail....0.pdf
支払いと送料の条件
Minimum Order Quantity: 1pcs
価格: 交渉可能
Packaging Details: Industrial PoE Switch Standard Carton Packaging
Delivery Time: 7-10 working days
Payment Terms: L/C,T/T,Western Union,MoneyGram,PayPal
Supply Ability: 100000PCS/Month
SC-Duplex: |
Max. 12pcs |
Strain relief: |
PG gland |
Casing: |
Al (Aluminum) |
Cable access/outlet: |
From top or bottom, straight or inclined |
Mounting Options: |
DIN-Rail |
Weight: |
0.6KG |
SC-Duplex: |
Max. 12pcs |
Strain relief: |
PG gland |
Casing: |
Al (Aluminum) |
Cable access/outlet: |
From top or bottom, straight or inclined |
Mounting Options: |
DIN-Rail |
Weight: |
0.6KG |
Product Advantages
· Up to 12 ports SC-Duplex adapters
· Din-rail mounting
· Space-saving installation
· IP20 protection
· 2x rear entries (PG 11 cable gland)
· Grey color (RAL 7035)
· -40°C to 80°C (-40°F to 176°F) operating temperature
· Other configurations on demand
Overview

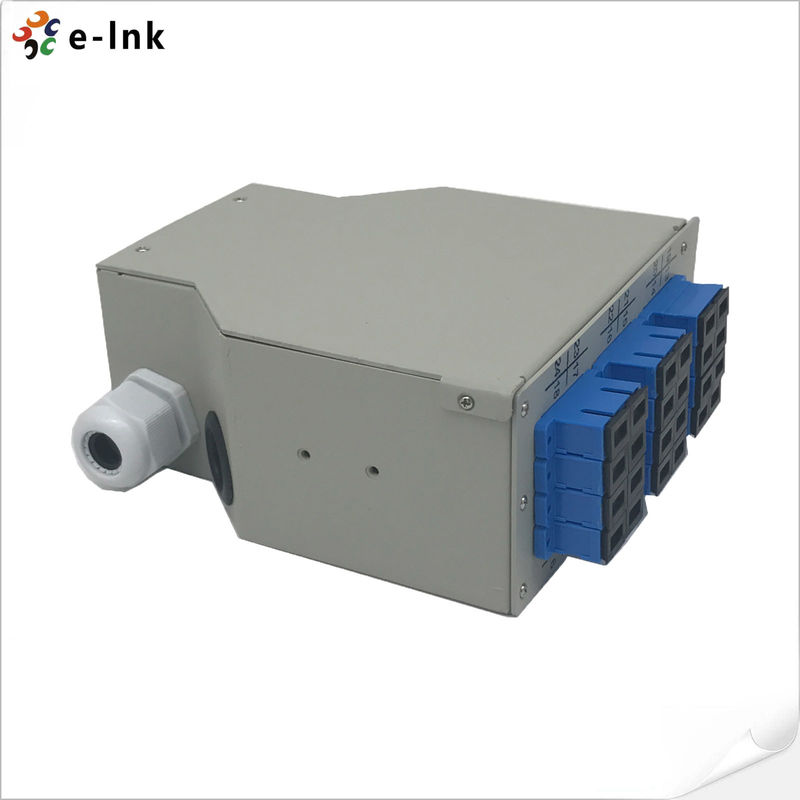

E-link 24-port industrial din-rail mount patch panels are designed for either to support direct termination or fusion splicing of the fibers. The materials used for the patch panel is of high quality anodized aluminum with natural finishes making it light weight and compact in size. Features designed to save space especially when mounted within enclosures or cabinet with other din rail mount equipment. The patch panel can be loaded with 12 SC duplex adapters.
Technical Indexes
|
Application |
Harsh environment, |
|
Design |
Splice distributor |
|
Color |
Gray |
|
Dimensions (LxWxH) |
131.50 x 131.70 x 52.60 mm (5.177 x 5.185 x 2.071 inch) |
|
Weight |
0.6KG |
|
Mounting Options |
DIN-Rail |
|
Connections/Interfaces |
|
|
Cable access/outlet |
From top or bottom, straight or inclined |
|
Equipped Adapters |
|
|
SC-Duplex |
Max. 12pcs |
|
Mechanical |
|
|
PG gland |
|
|
Materials |
|
|
Casing |
|
|
Model |
Description |
|
LNK-FSB-D-12SC |
12SC Duplex DIN-Rail Fiber Patch Panel: 2-cable entries, 12pcs SC/PC SM Duplex adapters |
