製品詳細
Place of Origin: China
ブランド名: E-link
証明: ISO9001, CE, FCC, RoHS
Model Number: LNK-U4T1-2.0
支払いと送料の条件
Minimum Order Quantity: 1pcs
価格: Negotiated
Packaging Details: Industrial PoE Switch standard export package
Delivery Time: 3-6working days
Payment Terms: T/T,PayPal
Supply Ability: 1000pcs/month
Weight: |
0.75Kg |
Operating Temperature: |
-20℃~70℃ |
Storage Temperature: |
-40~85℃ |
Humidity: |
0-95% (non-condensing) |
Limited Warranty: |
2 year warranty |
Size (L× W ×H): |
117mm x104mm x28mm |
Weight: |
0.75Kg |
Operating Temperature: |
-20℃~70℃ |
Storage Temperature: |
-40~85℃ |
Humidity: |
0-95% (non-condensing) |
Limited Warranty: |
2 year warranty |
Size (L× W ×H): |
117mm x104mm x28mm |
► Support USB2.0 high-speed (High-Speed), full-speed (Full-Speed) or low-speed (Low-Speed) device;
► Support USB-HUB expansion, support all kinds of USB devices;
► No Drivers Required, compatible with all operating systems;
► Support hot-swappable, plug and play;
► Extension Distance: Cat5 cable 100 meter, Cat6 cable 170 meter.
4-Port USB 2.0 over UTP Extender Overview
This device breaks through the USB transmission distance limit of no more than 5 Meter, and realizes the extension of USB signal more than 100 Meter through the network cable. The device can be widely used in military command and control system, police command and control
system, traffic management system, energy and electricity supply industry, government office,
medical system, commercial presentation, multimedia and public utilities etc.
4-Port USB 2.0 over UTP Extender Technical Indexes
|
UTP |
Connector |
RJ45 |
|
|
Max. Distance |
Cat5 cable: 100 meter, Cat6 cable: 170 meter |
|
USB2.0 |
Input / Output
|
USB2.0 Type-A |
|
Physical |
Size (L× W ×H) |
117mm x104mm x28mm |
|
|
Case |
Aluminum |
|
|
Color
|
Black |
|
|
N.W . |
0.75Kg |
|
Power |
Voltage |
5- 12V DC |
|
|
Power consumption
|
<5W |
|
Environment |
Working temperature |
-20℃~70℃ |
|
|
Storage temperature |
-40~85℃ |
|
|
Humidity
|
0-95% (non-condensing) |

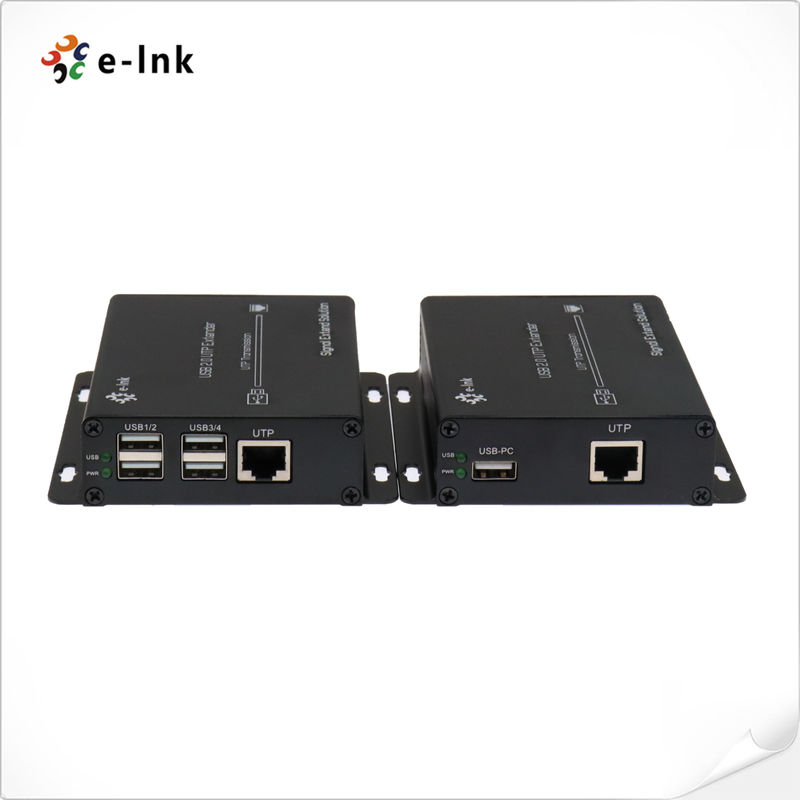

4-Port USB 2.0 over UTP Extender Picture
4-Port USB 2.0 over UTP Extender Application
4-Port USB 2.0 over UTP Extenderr Ordering Information
|
Part No |
Description of product |
|
LNK-U4T1-2.0 |
4-port USB 2.0 UTP extender, 1xUSB port for Local Unit, 4xUSB ports for Remote Unit, up to 100m via Cat5 cable,170m via Cat6 cable |
