製品詳細
起源の場所: 中国
ブランド名: E-link
モデル番号: LNK-CSFP-10Gxx-10
支払いと送料の条件
最小注文数量: 1個のPC
価格: 交渉可能
パッケージの詳細: カートンパッケージ
受渡し時間: 3〜12営業日
支払条件: L/C、T/T、Western Union、MoneyGram、PayPal
供給の能力: 1000 PCS/月
貯蔵温度 貯蔵温度: |
-40〜85°C |
最大供給電圧: |
-0.5〜4V |
相対湿度: |
0〜85％ |
場合の実用温度: |
0〜70°C |
供給電流: |
360mA |
消費電力: |
1.5W |
貯蔵温度 貯蔵温度: |
-40〜85°C |
最大供給電圧: |
-0.5〜4V |
相対湿度: |
0〜85％ |
場合の実用温度: |
0〜70°C |
供給電流: |
360mA |
消費電力: |
1.5W |

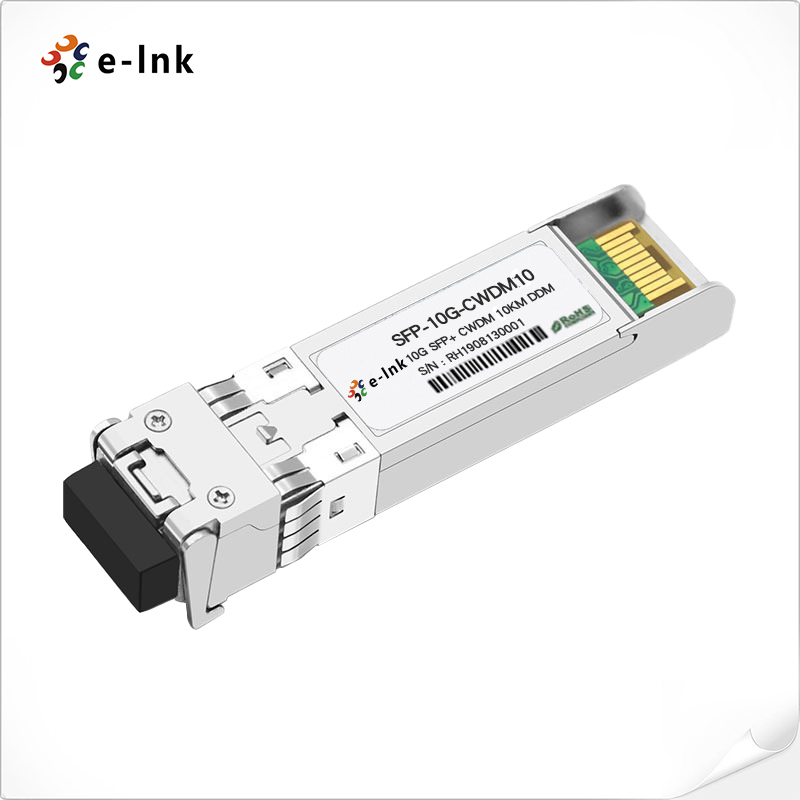

10Gb/s 10km CWDM SFP+ Transceiver
Advantages
Ø Supports 9.95 to 11.3Gb/s bit rates
Ø Hot-Pluggable
Ø Duplex LC connector
Ø 1270～1610nm CWDM DFB transmitter, PIN photo-detector
Ø SMF links up to 10km
Ø 2-wire interface for management specifications compliant with SFF 8472 digital diagnostic monitoring interface
Ø Power Supply: +3.3V
Ø Power consumption<1.5W
Ø Temperature Range: 0~ 70°C
Ø RoHS compliant
Overview
E-LINK's LNK-CSFP-10Gxx-10 is a very compact 10Gb/s optical transceiver module for serial optical communication applications at 10Gb/s. The LNK-CSFP-10Gxx-10 converts a 10Gb/s serial electrical data stream to 10Gb/s optical output signal and a 10Gb/s optical input signal to 10Gb/s serial electrical data streams. The high speed 10Gb/s electrical interface is fully compliant with SFI specification.
The high performance 1270 ～ 1610nm CWDM DFB transmitter and high sensitivity PIN receiver provide superior performance for Ethernet applications at up to 10km links.
The SFP+ Module compliant with SFF-8431, SFF-8432 and IEEE 802.3ae 10GBASE-LR. Digital diagnostics functions are available via a 2-wire serial interface, as specified in SFF-8472.
The fully SFP compliant form factor provides hot pluggability, easy optical port upgrades and low EMI emission.
Technical Indexes
|
Parameter |
Symbol |
Min. |
Typical |
Max. |
Unit |
Note |
|
Transmitter Section: |
||||||
|
Center Wavelength |
λc |
λ-6.5 |
|
λ+6.5 |
nm |
|
|
spectral width |
△λ |
|
|
1 |
nm |
|
|
Average Optical Power |
Pavg |
-3 |
|
+2 |
dBm |
1 |
|
Laser Off Power |
Poff |
|
|
-30 |
dBm |
|
|
Extinction Ratio |
ER |
3.5 |
|
|
dB |
|
|
Transmitter Dispersion Penalty |
TDP |
|
|
3.2 |
dB |
2 |
|
Relative Intensity Noise |
Rin |
|
|
-128 |
dB/Hz |
3 |
|
Optical Return Loss Tolerance |
|
20 |
|
|
dB |
|
|
Receiver Section: |
||||||
|
Center Wavelength |
λr |
1260 |
|
1355 |
nm |
|
|
Receiver Sensitivity |
Sen |
|
|
-14.6 |
dBm |
4 |
|
Stressed Sensitivity (OMA) |
SenST |
|
|
-12.3 |
dBm |
4 |
|
Los Assert |
LOSA |
-25 |
|
- |
dBm |
|
|
Los Dessert |
LOSD |
|
|
-15 |
dBm |
|
|
Los Hysteresis |
LOSH |
0.5 |
|
|
dB |
|
|
Overload |
Sat |
0 |
|
|
dBm |
5 |
|
Receiver Reflectance |
Rrx |
|
|
-12 |
dB |
|
Application
Ø 10GBASE-LR/LW Ethernet
Ø CWDM Networks
