3G/HD-SDI to Fiber Converter Advantage
► Each channel includes 8-channel audio embedded
► Automatic cable equalization to ensure signal integrity
► Automatic re locking 270Mbit/s - 1.48Gbit/s - 3Gbit/s
► Directly compatible with HD-SDI camera systems
► Long transmission capability at least 10 km (6.2miles) , up to 80 km
► Terminal block power input; Hot swap and hot plug;
► Full digital non-compression broadcast level transmission;
► super optic dynamic range and free of adjustment;
► fiber optic WDM/CWDM/DWDM technique;
► 1000M optical fiber transmission, easy for update;
► industry level ultra-broad temperature range (-40℃~+85℃), adaptable to various environments;
3G/HD-SDI to Fiber Converter Overview
LNK-HD-110 & LNK-3G-110 Series 3G/HD-SDI Fiber Converter supports 1-channel 3G/HD-SDI
Video (audio embedded) & reversed RS422/485 data signal transmitted via fiber optical cable,
and monitor the signal locally over a 3G/HD-SDI loop output. E-link 3G/HD-SDI Video over Fiber
Converters includes one transmitter and one receiver for 1080P 3G/HD-SDI signal.
3G/HD-SDI to Fiber Converter Technical Indexes
|
Fiber Optical interface |
|
|
Fiber interface |
Simplex FC |
|
Transmission distance |
550m-20Km |
|
Wavelength |
1310nm/1550nm |
|
Video |
|
|
Video interface |
BNC |
|
Video input/output impedance |
75Ω |
|
Video input/out put voltage |
Typical:1Vpp, Min 0.5Vpp, Max 1.5Vpp |
|
Video Bits Rate |
Max 3.2Gb/s |
|
Differential gain (10%～90% APL) |
<1% |
|
Video SDI standard |
270Mbps(SD-SDI), 1.485Gbps/M(HD-SDI) |
|
SMPTE425M3Gb/s Mapping(3G-SDI) |
|
|
SMPTE424M 3Gb/s serial interface(3G-SDI) |
|
|
Data |
|
|
Physical interface |
Industrial standard screw terminal |
|
Data type |
RS422/RS485 Reverse Direction |
|
Frequency/Rate support |
Max. 115200bps for RS422 Max. 57600bps for RS485 |
|
BER |
<10ˉ9 |
|
Electrical |
|
|
Power adaptor |
DC 5~25V |
|
Power consumption |
<5W |
|
LED Indicator |
|
|
P/S |
Power Supply |
|
DAT |
Data |
|
Mechanical |
|
|
Dimensions (LxWxH) |
120 x 105 x 28 mm |
|
Weight |
0.43KG/pair |
|
Casing |
Aluminum Case |
|
Mounting Options |
Wall-mount |
|
Environmental |
|
|
Working Temperature |
-20℃～+70℃ |
|
Storage Temperature |
-40℃～+80℃ |
|
Working Humidity |
0~95% |
|
MTBF |
≥100000 hours |
3G/HD-SDI to Fiber Converter Ordering Information

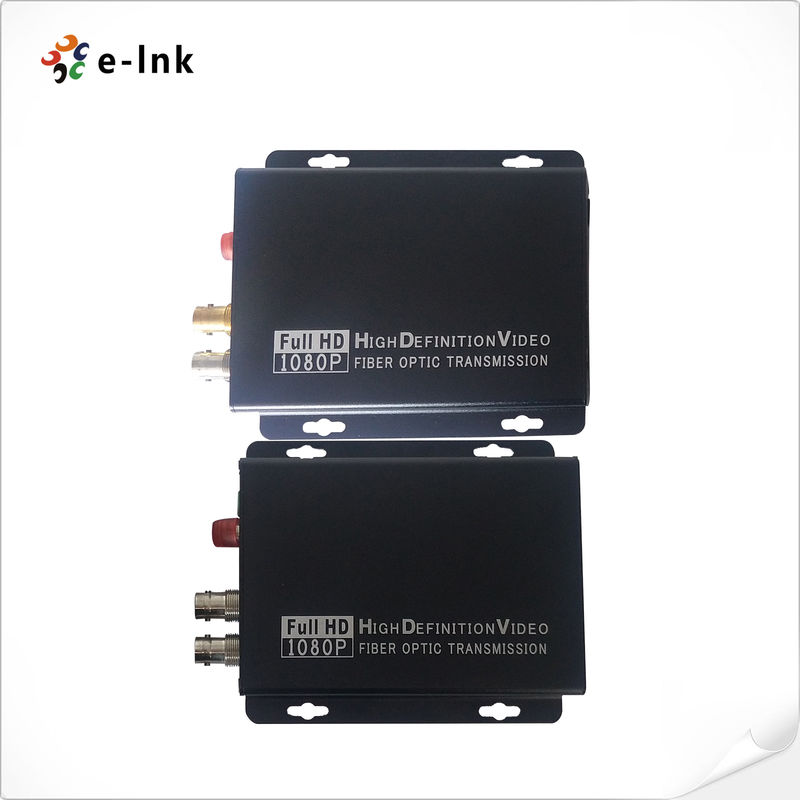

3G/HD-SDI to Fiber Converter Picture
