製品詳細
起源の場所: 中国
ブランド名: E-link
証明: RoHS,CE
モデル番号: LNK-BD9-155T3R5
支払いと送料の条件
最小注文数量: 1pcs
価格: US$9.4~US$12.5
パッケージの詳細: SFPファイバートランシーバー
受渡し時間: 3-5営業日
支払条件: L/C、T/T、Western Union、MoneyGram、PayPal
供給の能力: 100000pcs/月
供給電圧: |
+3.6V最大。 |
データレート: |
155Mb/s |
電圧: |
+5VDC |
受信機の感度: |
-34dbm |
供給電圧: |
+3.6V最大。 |
データレート: |
155Mb/s |
電圧: |
+5VDC |
受信機の感度: |
-34dbm |

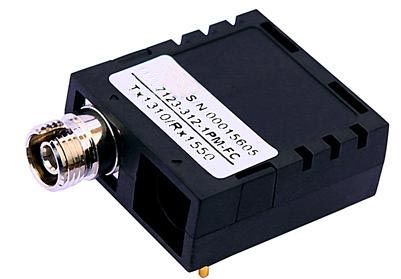

155M Single Fiber BIDI 1x9 Optical Transceiver
l 1×9 package with FC connector
l 1310nm FP Tx/1550nm PIN Rx and
1550nm FP TX/1310nm PIN RX
l 20Km transmission with SMF
l +3.3V single power supply
l LVPECL compatible data input/output interface
l Low EMI and excellent ESD protection
l laser safety standard IEC-60825 compliant
l Compatible with RoHS
Overview
The 1×9 transceiver supports 155Mbps and 20km transmission distance with SMF.
The transceiver consists of two sections: The transmitter section incorporates a FP laser. the receiver section consists of a PIN photodiode integrated with a trans-impedance preamplifier (TIA).
Technical Indexes
Absolute Maximum Ratings
|
Parameter |
Symbol |
Minimum |
Maximum |
Units |
|
Storage Temperature |
Tst |
-40 |
+85 |
°C |
|
Operating Temperature |
Top |
0 |
+70 |
°C |
|
Supply Voltage |
Vcc |
0 |
+3.6 |
V |
|
Input voltage |
Vin |
GND |
Vcc |
|
|
Lead Soldering Temperature & Time |
240/10 |
°C/s |
||
Operation Environment
|
Parameter |
Symbol |
Minimum |
Maximum |
Units |
|
Supply Voltage |
Vcc |
3.15 |
3.45 |
V |
|
Ambient operating Temperature |
Top |
-40 |
+85 |
°C |
|
Operating Relative Humidity |
- |
5 |
95 |
% |
Transmitter Section
|
Parameter |
Symbol |
Min. |
Typ. |
Max. |
Units |
|
|
Data rate |
- |
- |
155 |
- |
Mb/s |
|
|
Center Wavelength |
Tx 1310 |
lo |
1260 |
1310 |
1360 |
nm |
|
Tx 1550 |
1500 |
1550 |
1600 |
|||
|
Output Spectral width |
Dl |
- |
- |
4 |
nm |
|
|
Average Optical Output Power |
Tx 1310 |
Po |
-15 |
- |
-3 |
dBm |
|
Tx 1550 |
-15 |
|
-3 |
|||
|
Extinction Ratio |
Tx 1310 |
Er |
12 |
- |
18 |
dB |
|
Tx 1550 |
||||||
|
Rise/Fall Time(20%~80%) |
Tr/Tf |
|
|
0.26 |
ns |
|
|
Total jitter |
Tj |
|
|
0.43 |
UI |
|
|
Optical Eye Diagram |
IEEE 802.3u and ANSI Fibre Channel Compatible |
|||||
|
Input differential impendence |
Zdiff |
|
100 |
|
Ohm |
|
Receiver Section
|
Parameter |
Symbol |
Min. |
Typ. |
Max. |
unit |
|
|
Data rate |
|
|
155 |
|
Mb/s |
|
|
Wavelength |
1550 Rx |
l |
1500 |
1550 |
1600 |
nm |
|
1310 Rx |
1260 |
1310 |
1360 |
|||
|
Maximum Input Power |
Pmax |
-3 |
- |
- |
dBm |
|
|
Receiver Sensitivity |
Pmin |
- |
|
-34 |
dBm |
|
|
Output differential impendence |
Zdiff |
|
100 |
|
Ohm |
|
|
LOSS Thresholds |
LOSSD |
- |
- |
-34 |
dBm |
|
|
LOSSA |
-45 |
|
|
|
||
Pin Description
|
Pins |
Name |
Discription |
NOTE |
|
1 |
VeeR |
Receiver Ground |
|
|
2 |
RD+ |
IReceived Data Output (LVPECL) |
|
|
3 |
RD- |
Inv.Received Data Output (LVPECL) |
|
|
4 |
SD |
Signal Detected (LVPECL) |
|
|
5 |
VccR |
Receiver Power |
|
|
6 |
VccT |
Transmitter Power |
|
|
7 |
TD- |
Inv. Transmit Data Input (LVPECL) |
|
|
8 |
TD+ |
Transmit Data Input (LVPECL) |
|
|
9 |
VeeT |
Transmitter Ground |
|
Application
Ordering Information
|
Part Number |
Product Description |
|
LNK-BD9-155T3R5 |
155M Single Fiber BIDI 1x9 Optical Transceiver1310TX/1550RX, FC,20km, 0°C~+70°C
|
|
LNK-BD9-155T5R3 |
155M Single Fiber BIDI 1x9 Optical Transceiver1550TX/1310RX, FC,20km, 0°C~+70°C |
