製品詳細
起源の場所: 中国
ブランド名: E-link
モデル番号: LNK-FVGA-KVM
支払いと送料の条件
最小注文数量: 1個のPC
価格: 交渉可能
パッケージの詳細: カートンパッケージ
受渡し時間: 3〜12営業日
支払条件: L/C、T/T、Western Union、MoneyGram、PayPal
供給の能力: 1000 PCS/月
温度: |
操作：-5℃〜 +70℃ |
データ入力スイング差: |
電源アダプター：DC 5V/2a |
電力散逸: |
最大6W |
湿度: |
操作：5％〜90％ |
寸法: |
155*115*30mm |
保証: |
1年間の無料保証、生涯メンテナンス |
温度: |
操作：-5℃〜 +70℃ |
データ入力スイング差: |
電源アダプター：DC 5V/2a |
電力散逸: |
最大6W |
湿度: |
操作：5％〜90％ |
寸法: |
155*115*30mm |
保証: |
1年間の無料保証、生涯メンテナンス |
Advantages
► Transmits VGA video signals up to 10km over one fiber optic cable;
► Support video resolution up to 1920*1080P@60Hz;
► Support keyboard and mouse signal transmission;
► Support external stereo audio unidirectional transmission;
► Support transmitter one channel signal output;
► Support RS232 signal unidirectional transmission, baud rate self-adaptive;
► High compatibility, can auto-match source and display device;
► Built-in automatic adjustment system, make the image smooth, clear and stable;
► Built-in ESD protection system;
► Simple to install, plug and play;
Overview

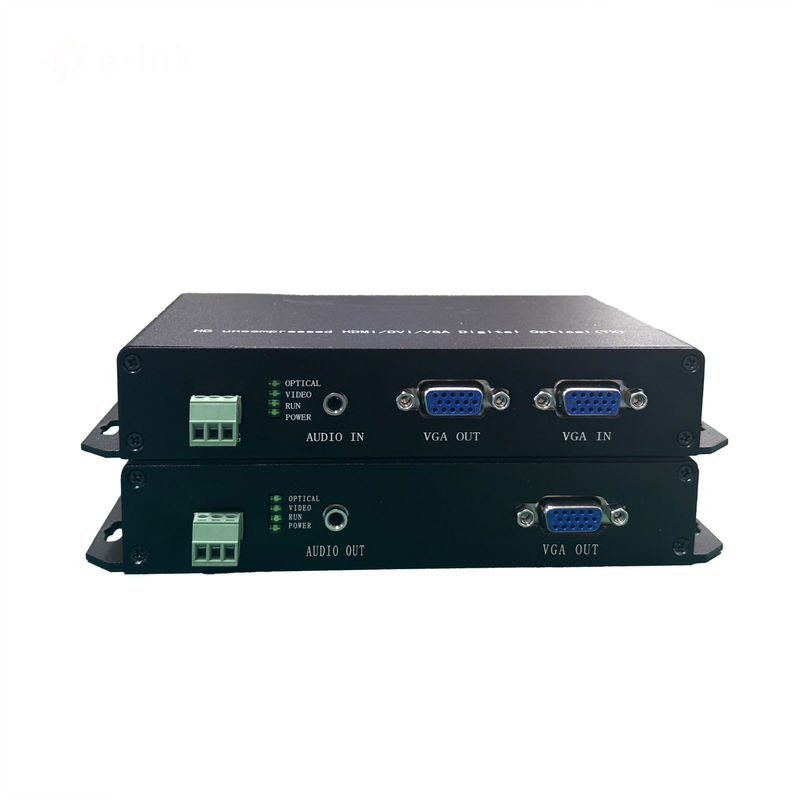

The LNK-FVGA-KVM Fiber optic extender provides extension of VGA signals long distances transmission over one fiber optic cable, it supports high resolution up to 1080P, KVM, transmitter local output, RS232 signal and external audio transmission function. The extender can use for a wide range of applications that requiring long distance transmission of high resolution with high quality by its good stability and powerful security.
Technical Indexes
|
Parameter |
Description |
|
|
Video |
Standards |
VGA |
|
Maximum pixel clock |
380MHz |
|
|
Resolution |
1920x1200@60Hz / 1920x1080@60Hz 1600x1200@60Hz / 1680x1050@60Hz 1280x1024@60Hz / 1280x1024@75Hz 1280x800@60Hz / 1280x768@60Hz 1280x720@60Hz / 1024x768@60Hz 1024x768@75Hz / 800x600@60Hz/75Hz |
|
|
Impedance |
75Ω |
|
|
Audio |
Interface |
3.5mm earphone seat |
|
Format |
44.1K,48K,96K,176K,192K |
|
|
Signal type |
Stereo |
|
|
K/M |
Interface |
To PC: MINI-USB To keyboard and mouse: USB-A |
|
RS232 |
Interface |
Industrial terminal |
|
Signal direction |
Bidirectional |
|
|
Baud rate |
Self-adaptive, Max:115200bps |
|
|
Data bits |
8 |
|
|
Optical fiber |
Interface |
LC connector |
|
Fiber type |
Single-mode single fiber |
|
|
Wavelength |
Single-mode 1310nm |
|
|
Interface bandwidth |
2.97Gbps |
|
|
Transmission distance |
standard 10km |
|
|
Other |
Power supply |
The power adapter: DC 5V/2A |
|
Power dissipation |
MAX 6W |
|
|
Temperature |
Operating: -5℃ ~ +70℃ |
|
|
Humidity |
Operating: 5% ~ 90% |
|
|
Dimension |
155*115*30mm |
|
|
The warranty |
1 year free warranty, life-long maintenance |
|
Ordering Information
|
Model |
Details |
|
LNK-FVGA-KVM -T |
1080P VGA KVM Fiber Optic Extender Transmitter |
|
LNK-FVGA-KVM -R |
1080P VGA KVM Fiber Optic Extender Receiver |
