製品詳細
起源の場所: 中国
ブランド名: E-link
証明: FCC Class A, CE, RoHS
モデル番号: LNK-IPE104-90
支払いと送料の条件
最小注文数量: 1pcs
価格: 交渉可能
パッケージの詳細: Industrial PoEスイッチ標準カートンパッケージ
受渡し時間: 7-10営業日
支払条件: L/C、T/T、Western Union、MoneyGram、PayPal
供給の能力: 100000pcs/月
製品サイズ: |
78 x 27 x 18 mm |
動作温度: |
0°C | 60°C （32° | 140°F） |
重さ: |
46g |
取り付けオプション: |
デスクトップ |
ケーシング: |
アルミニウムケース |
消費電力: |
5Wマックス。 |
製品サイズ: |
78 x 27 x 18 mm |
動作温度: |
0°C | 60°C （32° | 140°F） |
重さ: |
46g |
取り付けオプション: |
デスクトップ |
ケーシング: |
アルミニウムケース |
消費電力: |
5Wマックス。 |
Product Advantages
► 1x100/1000Base-X SFP Slot + 1xTYPE-C USB3.0 Slot
► USB 3.0 compatibility ensures high performance packet transfer rate
► Provides a fiber network connection to portable laptops or tablets
► Fiber-to-the-desk connectivity (FTTD) enhances security, reducing the risk of data leaks
► Full duplex with flow control and half duplex with back pressure operation
► Highly portable design, with no need for an external power adapter (bus powered)
► Certified drivers for Windows, macOS and Linux
► Plug-and-play installation
Overview

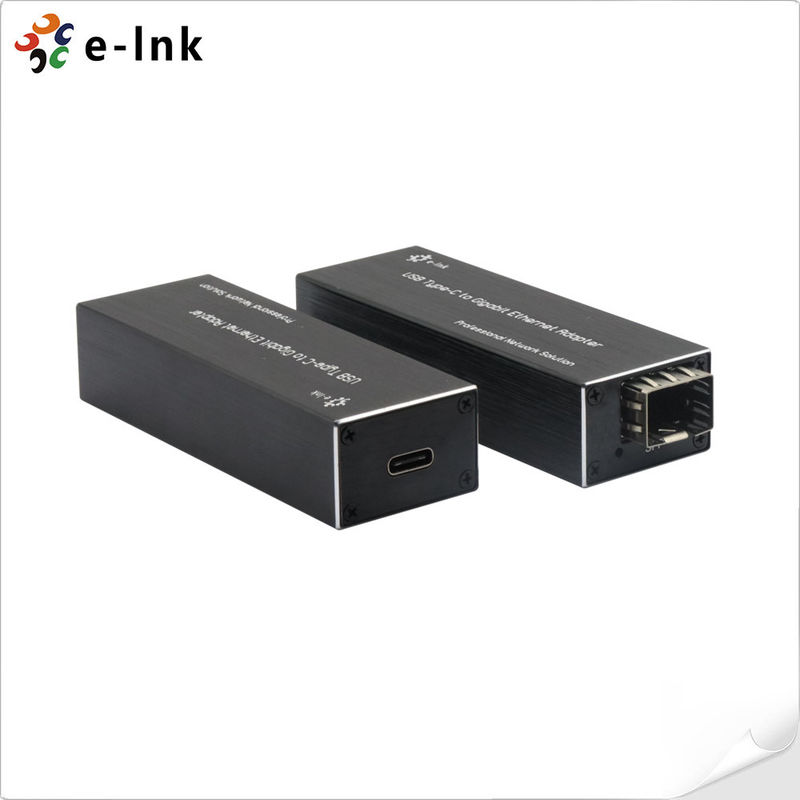

E-link LNK-TCF1000 Series Micro Mini USB-C to Fiber Network adapter designed for Laptop/PC/Tablet that with Type-C interface and need to access Fast and Stable internet through Fiber Cable. With this USB-C LAN Card, Network Connection is more stable and quicker than Wifi access. It can offer 1000Mbps Internet access, It provides up to 2000Mbps full-duplex bandwidth capacity. In addition, with advanced functions like VLAN filtering packet processing, the adapter provides added performance, flexible configuration and secure networking for users in a standard-based environment.
Technical Indexes
|
Standards: |
IEEE 802.1p Class of service |
|
IEEE 802.1Q VLAN Tagging |
|
|
IEEE 802.2 Logical Link Control (LLC) |
|
|
IEEE 802.3ac VLAN tagging |
|
|
IEEE 802.3az Energy Efficient Ethernet (EEE) |
|
|
IEEE 802.3x Flow Control and Back pressure |
|
|
IEEE802.3u 100Base-TX/FX Fast Ethernet |
|
|
IEEE 802.3z 1000Base-X Gigabit Ethernet |
|
|
IEEE 802.3ad Link Aggregation Control Protocol (LACP) |
|
|
Chipset ID: |
Realtek RTL8213B |
|
Network Transfer Rate: |
14,880pps (10Mbps) |
|
148,800pps (100Mbps) |
|
|
1,488,000pps (1000Mbps) |
|
|
Jumbo Frame Support: |
9K max. |
|
Other: |
Supports power Down / Link down power saving |
|
Software |
|
|
OS Compatibility: |
Windows® 7, 8, 8.1, 10, 11 Windows® Server 2008, 2012, 2016, 2019 macOS 10.9 - 10.14, 11.0, 12.0, 13.0 Linux® kernel 3.5 and up - LTS Versions only |
|
Interface |
|
|
USB: |
1 x USB-C 3.0 |
|
SFP: |
1 x SFP 1000Base-X or 100Base-FX (auto detection) |
|
Electrical and Mechanical |
|
|
Power: |
USB Bus Powered |
|
Power Consumption: |
5W Max. |
|
LED Indicators: |
|
|
L/A: |
Link/Activity |
|
Dimensions (WxDxH): |
78 x 27 x 18 mm |
|
Weight: |
46g |
|
Casing: |
|
|
Mounting Options: |
Desktop |
|
Environmental |
|
|
Operating Temperature: |
0°C ~ 60°C (32° ~ 140°F) |
|
Storage Temperature: |
-10° ~ 70°C (14° ~ 158°F) |
|
Relative Humidity: |
5% to 90% non-condensing |
|
MTBF |
> 100,000 hrs |
|
Regulatory Approvals |
|
|
ISO9001, CE, FCC, RoHS |
|
Ordering Information
|
Model |
Description |
|
LNK-TCF1000 |
Micro Mini USB-C 3.0 to Fiber Optic Converter - Open SFP |
|
SFP Options |
► SFP option. Please select your SFP on our SFP Options Page. |
|
► SFP module is to be purchased separately. |
|
|
Mounting Options |
► Desktop |
|
Power Options |
► No need for an external power adapter (bus powered) |
|
Package Contents |
►USB 3.0 to SFP Gigabit Ethernet Adapter x 1 |
|
► Quick installation guide x 1 |
