製品詳細
起源の場所: 中国
ブランド名: E-link
証明: CE,FCC,RoHs
モデル番号: LNK-3GSDI-4V1N
支払いと送料の条件
最小注文数量: 1ペア
価格: USD 549~800/Pair
パッケージの詳細: SDI繊維のコンバーターの標準的な輸出パッケージ
受渡し時間: 1〜3営業日
支払条件: T/T、L/C、D/A、D/P、Western Union、MoneyGram
供給の能力: 1ヶ月あたりの2000組
ファイバーコネクタ: |
FC/UPC/APC（SC、LC、STオプション） |
反射喪失:: |
> 15dB |
バランス:: |
0-150m @3Gb/s |
コネクタ：: |
BNC |
送信距離：: |
20km (他の距離はオプション) |
動作温度：: |
-10 ℃～＋55℃ |
入力:: |
1A@12VDC |
ファイバーコネクタ: |
FC/UPC/APC（SC、LC、STオプション） |
反射喪失:: |
> 15dB |
バランス:: |
0-150m @3Gb/s |
コネクタ：: |
BNC |
送信距離：: |
20km (他の距離はオプション) |
動作温度：: |
-10 ℃～＋55℃ |
入力:: |
1A@12VDC |

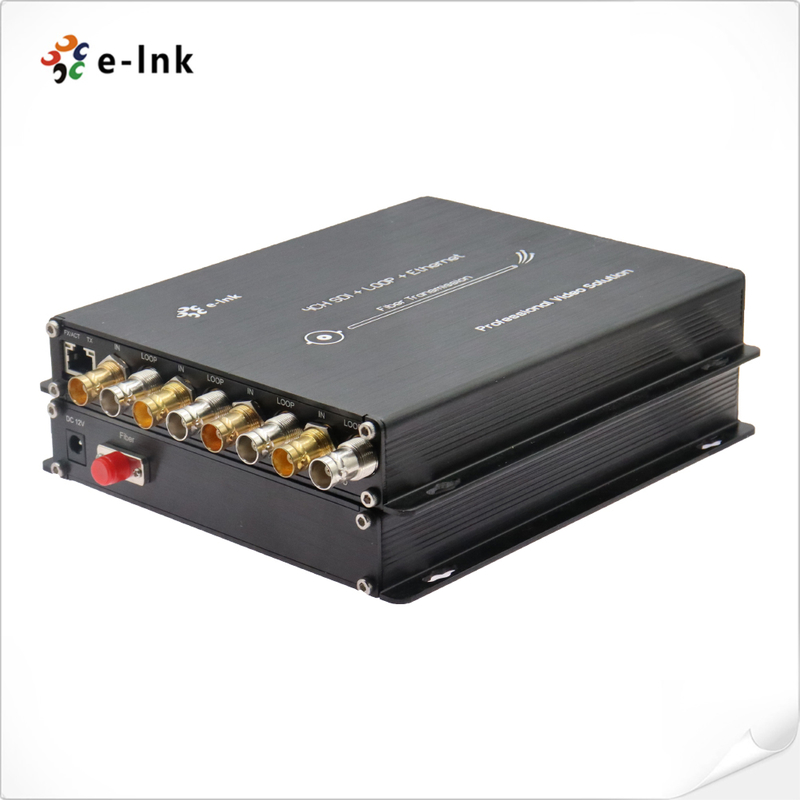

4-Channel 3G-SDI Fiber Converter with Ethernet
4-Channel 3G-SDI Fiber Converter with Ethernet Advantages
► 4 channel 3G/HD-SDI video transmission over optic fiber
► Automatic cable equalization to ensure signal integrity
► Automatic reclocking 270Mbit/s - 1.48Gbit/s-3Gbit/s
► Directly compatible with 3G/HD-SDI camera systems and support 4Ch Loop output
► Long transmission up to 20 km (12.5miles) (Other distance Optional)
► Full digital non-compression broadcast level transmission;
► Support 1000M Ethernet;
► Working temperature range (-10℃~+55℃)
4-Channel 3G-SDI Fiber Converter with Ethernet Overview
LNK-3GSDI-4V1N Series supports 4-channel HD/3G-SDI standard high-definition video signal and Ethernet
and Tally signal transmitted via single fiber optical cable. E-link 3G-SDI Video over Fiber Converters
includes one transmitter and one receiver for 1080P 3G-SDI signal. E-link 3G-SDI Fiber Converters can
transmit 4-Ch 3G-SDI Video signal through a single optical fiber, and it support Loop output and 1000M
Ethernet. The video quality is non-compressed broadcast level. It’s widely used in broadcast field.
4-Channel 3G-SDI Fiber Converter with Ethernet Technical Indexes
| SDI Input | SMPTE 424M, SMPTE 292M, SMPTE 259M, DVB-ASI, DVB-SSI and Telecom/Datacom |
| 270Mbit/s - 1.48Gbit/s – 3Gbit/s | |
| Input number: 4 | |
| Reflection loss: >15DB | |
| Equilibrium: 0-150m @3Gb/s | |
| Connector: BNC | |
| Optics | Channel: 1 |
| Type: single-mode | |
| Transmission distance: 20km (Other distance Optional) | |
| Reflection loss: > 15dB | |
| Dithering: < 0.2UI | |
| Connector: FC/UPC (SC, LC, ST optional) | |
| SDI Output | Output number:4 |
| Signal level: 800mV nominal | |
| Rise/fall time: 200ps indication | |
| Overshoot: < 10% amplitude | |
| Reflection loss: >15dB | |
| Dithering: < 0.2UI | |
| Connector: 75Ω BNC | |
| Ethernet | 10/100/1000Mbps |
| Power and environmental indication | Operating temperature: -10℃～＋55℃ |
| Power Input: 1A@12VDC | |
| EMI/RFI: meet FCC Part 15 Class A, EU EMC standard | |
| Average time trouble-free: >100000 hours | |
| SDI video format supports |
625/25PAL; 525/29.97NTSC; 525/23.98NTSC; 720p50; 720p59.94; 1080P23.98/24/30/50/60; 1080i 23/24/30/50/59.94; |
4-Channel 3G-SDI Fiber Converter with Ethernet Ordering Information
| LNK-HDSDI-4V1N | 4-Ch HD-SDI Video with Loop output + 1 1000M Ethernet, SM 20km, FC, including 1 transmitter & 1 receiver, used by pairs |
| LNK-3GSDI-4V1N | 4-Ch 3G-SDI Video with Loop output + 1 1000M Ethernet , SM 20km, FC, including 1 transmitter & 1 receiver, used by pairs |
