製品詳細
起源の場所: 中国
ブランド名: E-link
証明: ISO9001, CE, FCC, RoHS
モデル番号: LNK-EF001Fシリーズ
支払いと送料の条件
最小注文数量: 1pcs
価格: Negotiated
パッケージの詳細: 標準エクスポートパッケージ
受渡し時間: 5-12加工日
支払条件: T/T、ペイパル
供給の能力: 1000pcs/口
動作温度：: |
-10°C〜50°C |
保管温度: |
-40°C〜80°C |
寸法（WXDXH）：: |
216x140x31mm（wxdxh） |
部分の重量: |
1.25kg |
電源: |
AC180V〜260V；DC –48V；DC +24V |
消費電力: |
≤5W |
動作温度：: |
-10°C〜50°C |
保管温度: |
-40°C〜80°C |
寸法（WXDXH）：: |
216x140x31mm（wxdxh） |
部分の重量: |
1.25kg |
電源: |
AC180V〜260V；DC –48V；DC +24V |
消費電力: |
≤5W |

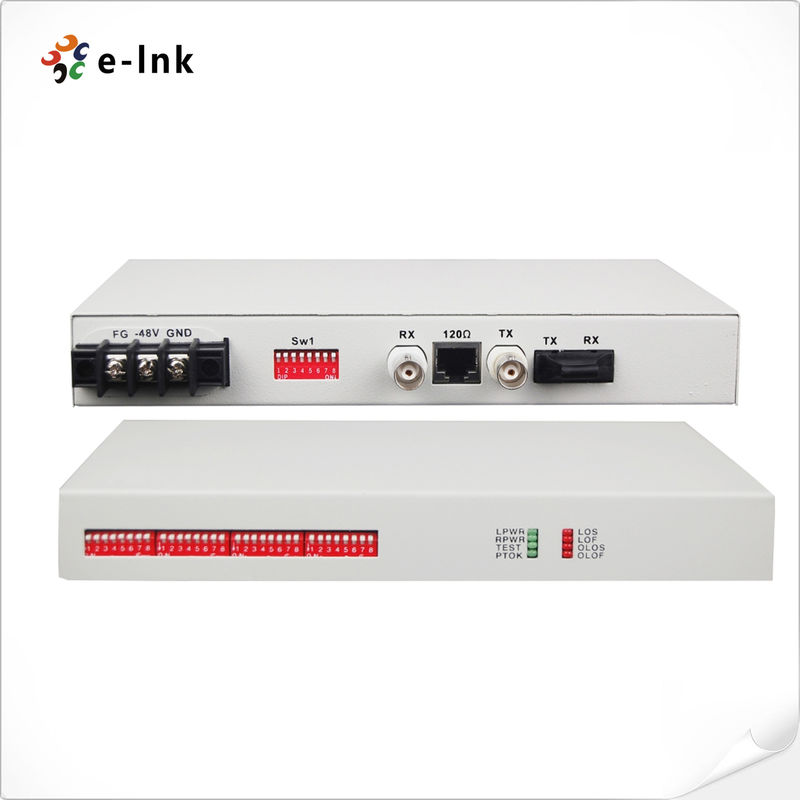

Framed E1 to Fiber Converter Advantage
· Based on self -copyright IC
· Can detect the reason of optical signal losing is that the device power-off or transmission fiber broken
· Provide 2 impedances: 75 Ohm unbalance and 120 Ohm balance;
· After strict testing and practical verification system, completely comply with protocol ITU-T V.35, G.703, G.704
· The hardware realizes any one of 31 time slot any time slot optional (valid when framed), 1-32 can choose any open slots
· Have three Loop Back Mode: E1 interface Loop Back (ANA),V.35 interface Loop Back(DIG),Command the remote V.35 interface Loop Back(REM)
· Have pseudo random code test function, easily line opened, can be used as a 2M BER Tester
· AC 220V, DC-48V, DC+24V, DC Power and Polarity-Free
· FE1 fiber modem can use with V.35 fiber modem, that can save a G.703/V.35 converter
Framed E1 to Fiber Converter Overview
This device provides one Framed E1 interface and one optical interface to achieve interface conversion, rate conversion and timeslot extraction from E1 to Optical. When unframed mode, the data channel rate is 2.048Mbps. The device has inter-set loop test function to facilitate the project launching and daily maintenance.
Framed E1 to Fiber Converter Technical Indexes
|
Parameter |
Specification |
|
Fiber |
|
|
Multi-mode Fiber |
|
|
Fiber Type |
50/125um, 62.5/125um |
|
Maximum transmission distance |
5Km @ 62.5 / 125um single mode fiber, attenuation (3dbm/km)Wave Length: 820nm |
|
Wavelength |
820nm |
|
Transmitting power |
-12dBm (Min) ~-9dBm (Max) |
|
Receiver sensitivity |
-28dBm (Min) |
|
Link budget |
16dBm |
|
Single-mode Fiber |
|
|
Fiber Type |
8/125um, 9/125um |
|
Maximum transmission distance |
120Km |
|
Transmission distance |
0~120Km @ 9 / 125um single mode fiber, attenuation (0.35dbm/km) |
|
Wavelength |
1310nm/1550nm |
|
Transmitting power |
-9dBm (Min) ~-8dBm (Max) |
|
Receiver sensitivity |
-27dBm (Min) |
|
Link budget |
18dBm |
|
E1 Interface |
|
|
Interface Standard |
comply with protocol G.703 |
|
Interface Rate |
n*64Kbps±50ppm |
|
Interface Code |
HDB3 |
|
E1 Impedance: |
75Ω (unbalance), 120Ω (balance) |
|
Jitter tolerance |
In accord with protocol G.742 and G.823 |
|
Allowed Attenuation |
0~6dBm |
|
Power |
|
|
Power supply |
AC180V ~ 260V；DC –48V；DC +24V |
|
Power consumption |
≤5W |
|
Dimension |
|
|
Product size |
216X140X31mm(WXDXH) |
|
Simple packaging |
274X193X84mm(WXDXH) |
|
Piece weight |
1.25KG |
|
Working environment |
|
|
Working temperature |
-10°C ~ 50°C |
|
Working Humidity |
5%~95 % (no condensation) |
|
Storage temperature |
-40°C ~ 80°C |
|
Storage Humidity |
5%~95 % (no condensation) |
Framed E1 to Fiber Converter Application
