製品詳細
起源の場所: 中国
ブランド名: E-link
証明: CE, FCC, RoHS,
モデル番号: LNK-MN-OEO-10GSS
支払いと送料の条件
最小注文数量: 1pcs
価格: Negotiated
パッケージの詳細: 標準エクスポートパッケージ
受渡し時間: 5-12加工日
支払条件: T/T、ペイパル
供給の能力: 1000pcs/口
寸法（w x h x d）: |
58 (W) × 20 (H) × 90 (L) (mm) |
装置機能: |
3R中継器 |
トランスミッション速度: |
8.5Gb/s-11.7Gb/s |
波長: |
850nm/1310nm/1550nm |
変換は意味があります: |
カットスルーモード |
入力電圧: |
DC 5V~12V |
寸法（w x h x d）: |
58 (W) × 20 (H) × 90 (L) (mm) |
装置機能: |
3R中継器 |
トランスミッション速度: |
8.5Gb/s-11.7Gb/s |
波長: |
850nm/1310nm/1550nm |
変換は意味があります: |
カットスルーモード |
入力電圧: |
DC 5V~12V |
Mini 10G OEO Media Converter (3R Repeater) Advantage
► Support Loop back
► Support Jumbo Frame
► Transparent Transport and very low delay
► Support ITUT prescribed DWDM/CWDM wavelength,and can also display it's DDM function.
► 3R function (Regeneration, Reshaping, Retiming)
► Support hot plugging
► Support 1U Rack (12 channel) and standalone use
► Full State Led display
► Easy installation

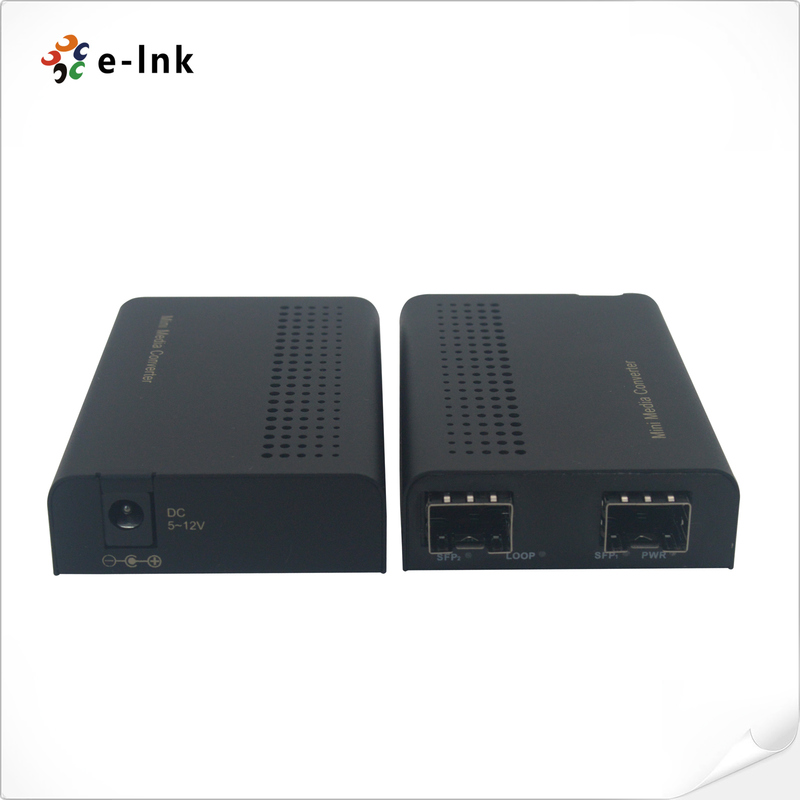

Mini 10G OEO Media Converter (3R Repeater) Overview
E-link Mini-type 10G (8.5G~11.7G) OEO Converter (3R Repeater) is connection between fiber to
fiber 10Gbps equipment function as fiber media converter, or as fiber repeater for long distance
transmission. The OEO is for network backbone(SAN, LAN, MAN).
Support SDH/SONET STM-64/OC-192, 10G fiber channel, 10G Ethernet etc. And the OEO can
be applied in Telecommunication room, R&D laboratory, Data center, and etc.
Support 1310nm /1550nm/CWDM/DWDM Optical Wavelength Conversion.
|
Performance Data |
Technical Indexes |
|
Equipment function |
3R Repeater |
|
Transmission Speed |
8.5Gb/s-11.7Gb/s |
|
Protocols |
8.5G Fiber Channel SONET OC-192, SDH STM-64 (9.95Gbps) 10G WAN (10Gbps) 10G LAN (10.31Gbps) OTN OTU-2 (G.709) (10.70Gbps) 10G LAN with 255/237 FEC coding (11.09Gbps) 10G Fiber Channel (11.32Gbps) 10G POS |
|
|
SFP+ to SFP+ |
|
Transmission Distance |
SFP+ module: up to 80km |
|
Maximum Packet Forwarding Rate |
14,880,950/S |
|
Power Requirement |
Rack-mountable : AC 85 ～ 220V Standalone: DC 5~12V Power consumption: ≤4W |
|
Work Environment |
Operating Temp: 0~ 50 ℃ Storage Temp: -10~ 70 ℃ Humidity: 5%~90% ( non-condensing ) |
|
Dimension |
Standalone :58 (W) x 20 (H) x 90 (L) (mm) |
Mini 10G OEO Media Converter (3R Repeater) Ordering Information
|
Model |
Description |
|
LNK-MN-OEO-10GSS |
Mini-type 10G OEO Converter (3R Repeater) (SFP+ to SFP+) |
