製品詳細
起源の場所: 中国
ブランド名: E-link
証明: CE, FCC, RoHS
モデル番号: LNK-MN-100MC-SC
支払いと送料の条件
最小注文数量: 1pcs
価格: Negotiated
パッケージの詳細: 標準エクスポートパッケージ
受渡し時間: 5-12加工日
支払条件: T/T、ペイパル
供給の能力: 1000pcs/口
寸法: |
（l） 58mm （W）×20mm （H）×90 mm |
アクセスモード: |
10/100Mbps |
波長: |
850nm/1310nm/1550nm |
入力電圧: |
DC 5V~12V |
電力消費: |
<3W |
動作温度: |
0~50°C |
寸法: |
（l） 58mm （W）×20mm （H）×90 mm |
アクセスモード: |
10/100Mbps |
波長: |
850nm/1310nm/1550nm |
入力電圧: |
DC 5V~12V |
電力消費: |
<3W |
動作温度: |
0~50°C |

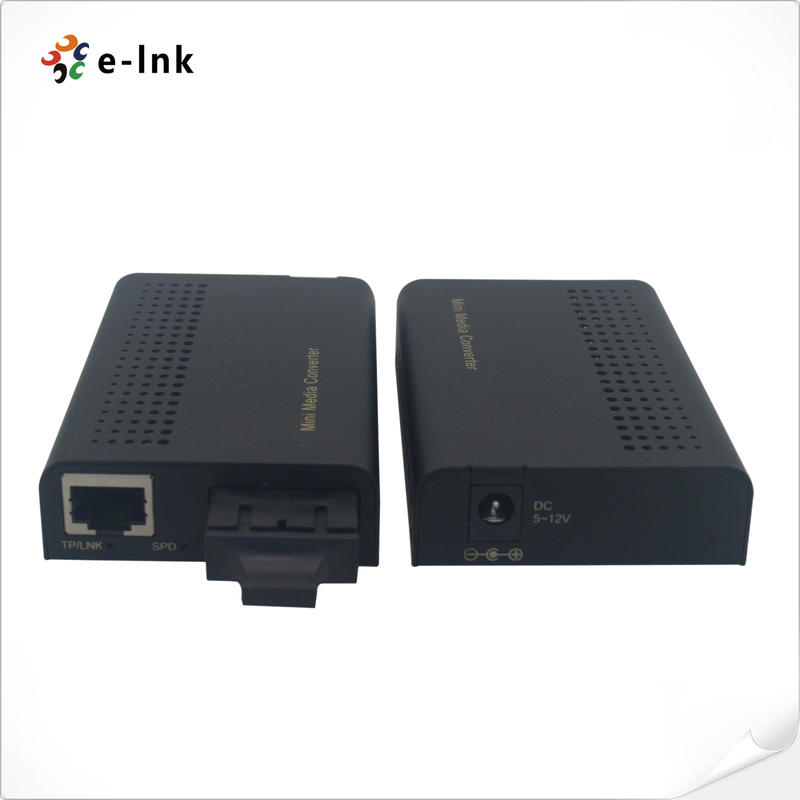

Mini 10/100Base-TX to 100Base-FX Fiber Media Converter Advantage
► 10/100Base-TX UTP to 100Base-FX fiber media converter
► Support IEEE802.3 10Base-T, IEEE802.3u 100Base-TX/FX standards
► SC Fiber Port
► DIP switch to set different configuration
► LFP (Link Fault Pass-through) support
► Support jumbo frame
► Compact package size
Mini 10/100Base-TX to 100Base-FX Fiber Media Converter Overview
The mini 10/100Base-TX to 100Base-FX media converter is fully compliant with IEEE802.3 10Base-T,
IEEE802.3u 100Base-TX/FX protocols. The converter can support auto MDI-MDIX function, flow control
for full and half duplex operation, etc.
A DIP switch is placed at the bottom of the case. Depend on different configurations; the user can set the
different operating mode (UTP port speed 10M or100M, full or half duplex mode, pass through mode,
LFP enable or disable).
|
Parameter |
Specifications |
|
Access mode |
10/100Mbps |
|
Standard |
IEEE802.3, IEEE802.3u, IEEE802.3x |
|
100Base-FX |
|
|
Wavelength |
850nm/1310nm/1550nm |
|
Transmission distance |
Multi-mode: |
|
Single mode: |
|
|
Cat-5 twisted pairs: 100m |
|
|
Conversion means |
Store and Forward mode or Cut-Through mode |
|
Flow control |
Full duplex: flow control; |
|
Half duplex: back pressure |
|
|
Input voltage |
DC 5V~12V |
|
|
<3W |
|
Operating temperature |
0~50ºC |
|
Operating humidity |
5%~90% |
|
Maintaining temperature |
-40~70ºC |
|
Maintaining humidity |
5% ~ 90% non-condensing |
|
Dimensions |
Mini 10/100Base-TX to 100Base-FX Fiber Media Converter Ordering Information
|
Item |
Description |
|
LNK-MN-100MC-SC |
Mini-type 10/100Base-TX to 100Base-SX Media Converter, Multi mode, 1310nm, SC, 2KM, standalone, external power adaptor |
|
LNK-MN-100MC-SC-20 |
Mini-type 10/100Base-TX to 100Base-FX Media Converter, Single Mode, 1310nm, SC, 20km, standalone, external power adaptor |
