製品詳細
起源の場所: 中国
ブランド名: E-link
証明: ISO9001, CE, ROHS, FCC
モデル番号: LNK-PSE951G-SFPシリーズ
支払いと送料の条件
最小注文数量: 1pcs
価格: US$69-US$79
パッケージの詳細: HDMIファイバーポーインジェクター標準カートンパッケージ
受渡し時間: 1〜3営業日
支払条件: T/T、Western Union、MoneyGram、PayPal
供給の能力: 1000/月
入力:: |
100-240Vac 2.0A 50/60Hz |
出力：: |
55VDC 1750mA |
データ・スピード:: |
10/100/1000Mbps |
保管温度：: |
-40 ℃〜85℃ |
共通モード サージの保護（10/700us）:: |
4kV |
サイズ (LxWxH):: |
203mm x 130mm x 41mm |
入力:: |
100-240Vac 2.0A 50/60Hz |
出力：: |
55VDC 1750mA |
データ・スピード:: |
10/100/1000Mbps |
保管温度：: |
-40 ℃〜85℃ |
共通モード サージの保護（10/700us）:: |
4kV |
サイズ (LxWxH):: |
203mm x 130mm x 41mm |

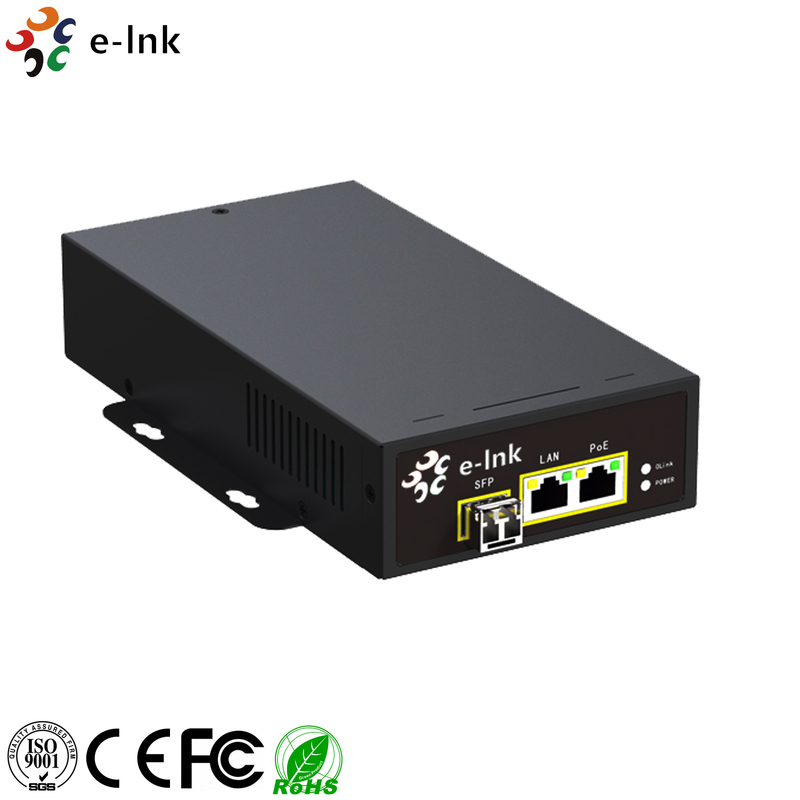

Model : LNK-PSE951G-SFP Series
Overview
Features
Technical Indexes
|
Parameter |
Specifications |
|
Standard |
IEEE802.3 10Base-T Ethernet IEEE802.3u 100Base-Tx Fast Ethernet IEEE802.3ab 1000Base-T Gigabit Ethernet Support terminal equipment with IEEE802.3af/at RoHS Compliance WEEE Compliance |
|
Input & Output |
Input : 100-240Vac 2.0A 50/60Hz Output: 55VDC 1750mA Power Pins: 4/5(+), 7/8(-) & 3/6(+),1/2(-) Data Speed: 10/100/1000Mbps |
|
Working Environment |
Operating Temperature: -40℃ to 65℃ Operating Humidity: 20% to 80%, non-condensation Storage Temperature: -40℃ to 85℃ Storage Humidity: 10% to 90%, non-condensation Operating Altitude: up to 5000meters |
|
AC Surge Protection |
1.0KV (5P/5N) L-N 1.2/50 (8/20) Tr/Th us 2.0KV (5P/5N) L-PE 1.2/50 (8/20) Tr/Th us N -PE |
|
PoE Surge Protection |
Protected line: 1,2,3,4,5,6,7,8 Common mode surge protection(10/700us): 4KV Differential mode surge protection (10/700us): 1.5KV |
|
Mechanical Characteristics |
Case: Metal |
|
Color: Black |
|
|
Mounting: Wall-mounted |
|
|
IP Rated: IP20 |
|
|
Size (LxWxH): 203mm X 130mm X 41mm |
|
|
Weight: 1070g |
|
|
Safety Approvals |
CE, FCC |
|
EMI |
FCC CFR47 Part 15, EN55024, EN55032 |
|
EMS |
IEC61000-4-2(ESD) ± 6kV(contact), ±8kV(air) IEC61000-4-3(RS) 10V/m(80MHz~2GHz) IEC61000-4-4(EFT) Power Port: ±2kV; Data Port:±1kV IEC61000-4-5(Surge) Power Port:±1kV/DM, ±2kV/CM IEC61000-4-6(CS) 10V(150kHz~80MHz) |
|
Immunity |
IEC60068-2-6(Vibration) IEC60068-2-27(Impact) IEC60068-2-32(Free Fall) |
|
LED Indicator |
Power Indicator: Green PoE Load Indicator: Green SFP Fiber Indicator: Green LAN Data Indicator: Yellow |
Ordering information
|
Model |
Description |
|
LNK-PSE951G-SFP |
95W SFP PoE Injector: 55Vdc/1.75A/1000Mbps/(4,5+,7,8-) and (3,6+,1,2-)/Surge Protection/Active |
Application
