製品詳細
起源の場所: 中国
ブランド名: E-link
証明: CE, FCC, RoHS，ISO9001
モデル番号: LNK-FS-LCシリーズ
支払いと送料の条件
最小注文数量: 1pcs
価格: Negotiated
パッケージの詳細: 標準エクスポートパッケージ
受渡し時間: 5-12加工日
支払条件: T/T、ペイパル
供給の能力: 1000pcs/口
光ファイバー直径: |
125μm （657A及び657B） |
狭いバッファ直径: |
900μm |
ファイバーモード: |
シングルモード |
研磨タイプ: |
UPCかAPC |
操作時間: |
約120年代（繊維カットなし） |
温度を使用して: |
-40°C+75°C |
光ファイバー直径: |
125μm （657A及び657B） |
狭いバッファ直径: |
900μm |
ファイバーモード: |
シングルモード |
研磨タイプ: |
UPCかAPC |
操作時間: |
約120年代（繊維カットなし） |
温度を使用して: |
-40°C+75°C |

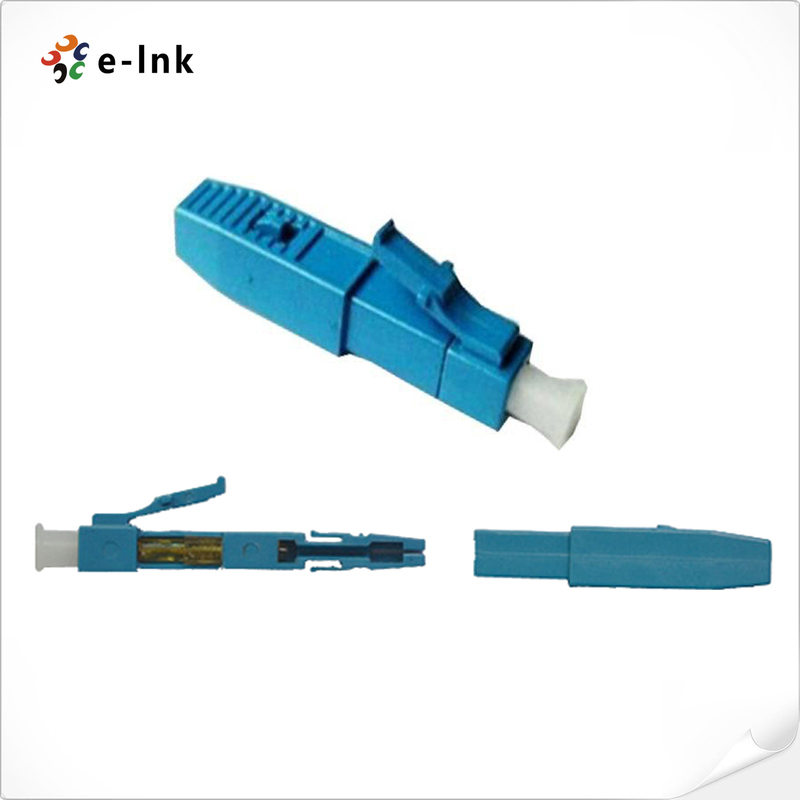

LC/UPC SM Fast Connector Advantage
l One-piece connector or attenuator
l Inside ferrule with fiber stuff and pre-polishing
l Field installable, quich connection, easy for operation
l No epoxy, no polishing, no adhesive, no electricity required
l High performance and high reliability
l Simply and easy fixed fiber or cable
l Cable Tensile complied with Telcordia GR-326-CORE
LC/UPC SM Fast Connector Overview
Field Assembly Optical Connector (FAOC), or Fast connector is a perfect solution for filed working
and FTTH connection. It is widely used for where need to quick connection, providing a quick assembly
and stable performance. When engineers work in field for installation, maintenance, repair of optical
fiber, or FTTH indoor terminate, they can use it easily because it has no epoxy, no polishing.
LC/UPC SM Fast Connector is designed inside ferrule with fiber stuff and pre-polishing in the factory.
It provides a perfect ferrule end face quality. This has great help to protect user’s equipment interface
and improves the connector loss.
|
ITEM |
Technical Parameters |
|
Applicable for |
Drop cable. Indoor cable |
|
Optical fiber diameter |
125μm ( 657A & 657B ) |
|
Tight buffer diameter |
900μm |
|
Fiber mode |
Single mode |
|
Polishing Type |
UPC or APC |
|
Operation time |
About 120s(no fiber cut) |
|
Insert loss |
≤ 0.3dB(1310nm & 1550nm) |
|
Return loss |
≥50dB |
|
Fastening strength of naked fiber |
>5 N |
|
Fastening strength of naked fiber holder |
>10 N |
|
Tensile strength |
>50 N |
|
Using temperature |
-40～+75℃ |
|
On-line tensile strength (20 N) |
△ IL ≤ 0.5dB △ RL ≤ 5dB |
|
Mechanical durability (500 times) |
△ IL ≤ 0.5dB △ RL ≤ 5dB |
|
Drop-off test (drop-off height 4m, once per direction, totally 3 times) |
△ IL ≤ 0.5dB △ RL ≤ 5dB |
LC/UPC SM Fast Connector Application
l Optical Distribution Frame
l Optical Network Equipments
l FTTH, CATV
