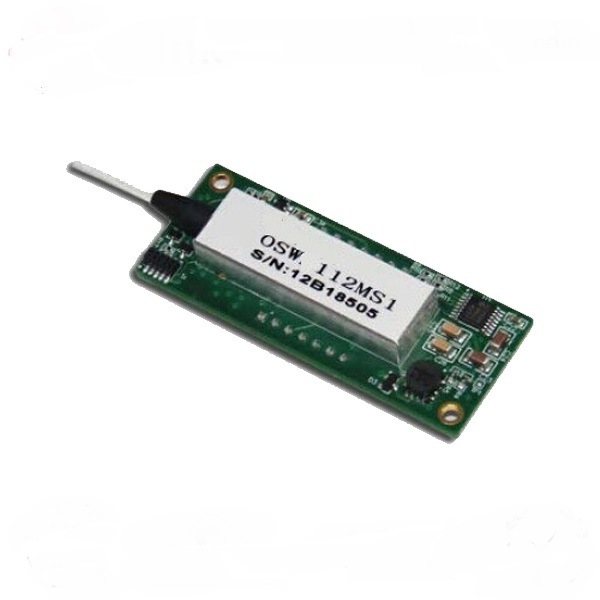

OSW Series MEMS Optical Switch
OSW Series MEMS Optical Switch Advantage
· 1 x 10G SFP+ fiber optical port
· 10 x Gigabit Ethernet ports, PoE optional
· supports RJ45 ports 10/100/1000M and Full Duplex/Half Duplex auto-negotiation
· Not support VLAN
OSW Series MEMS Optical Switch Overview
MEMS OSW is based on micro-electro-mechanical system (MEMS) technology, which achieved low insertion loss and highly repeatability by rotating the mirror of MEMS chip.
MEMS OSW is mainly used in optical cross and connection (OXC) system, optical add/drop system, measure instrument system and optical signal monitoring system.
The products are Telcordia GR-1312-CORE qualified, and RoHS ompliant.
|
Parameter |
Specification |
Unit |
Note |
|
Wavelength Range |
1260~1620 |
nm |
|
|
Insertion Loss |
1.0 & 1.2 |
dB |
@1x4 & @1x8 |
|
Crosstalk |
≥50 |
dB |
For Single Mode |
|
Return loss |
≥45 |
dB |
For Single Mode |
|
Switching time |
≤10 |
ms |
|
|
Polarization Dependent Loss |
≤0.2 |
dB |
|
|
Wavelength Dependent Loss |
≤0.3 |
dB |
@<0 dB Att. |
|
Return loss |
≥45 |
dB |
For Single Mode |
|
Optical Power Handing |
500 |
mW |
|
|
Driving Voltage |
60 |
V |
|
|
Power Consumption |
≤2 |
mW |
|
|
Operation Temperature |
-5~70 |
℃ |
|
|
Storage Temperature |
-40~85 |
℃ |
|
OSW Series MEMS Optical Switch Ordering Information
|
LNK-OSW |
_ |
xx |
xx |
x |
x |
x |
x |
_ |
xx |
x |
|
LNK=E-link O=Optical S=Switch W=MEMS |
|
Port Configuration |
Voltage Type |
Switch Type |
Wavelength |
Fiber Type |
Pigtail Type |
|
Fiber Length |
Connector |
|
02=1x2 04=1x4 08=1x8 16=1x16
|
03=3V 60=60V |
N= Non-Latching
|
1=1310nm 2=1550nm 3=1260~1620nm 4=850 |
1=SMF-28 2=MM50/125 3=62.5/125 X=Special |
B=bare fiber L=loose Tube |
05=0.5m 10=1.0m 15=1.5m |
0=None 1=FC/UPC 2=FC/APC 3=SC/UPC 4=SC/APC 5=LC/UPC 6=LC/APC |
