製品詳細
起源の場所: 中国
ブランド名: E-link
証明: ISO9001, CE, ROHS, FCC
モデル番号: LNK-INS901-19V
支払いと送料の条件
最小注文数量: 1pcs
価格: US$44-US$47
パッケージの詳細: PoE パワー スプリッターの標準カートン包装
受渡し時間: 1〜3営業日
支払条件: T/T、Western Union、MoneyGram、PayPal
供給の能力: 1000/月
前向きフィルター速さ:: |
1,488,000pps（1000Mbps） |
ケーブル:: |
1000Base-T:Cat5またはそれ以上に |
最大距離:: |
CAT5 UTP最大100m |
出力：: |
36W 19VDC (ターミナルブロック) |
PWR:: |
19VDC電源出力 |
取り付けオプション：: |
ディンレール /ウォールマウント |
前向きフィルター速さ:: |
1,488,000pps（1000Mbps） |
ケーブル:: |
1000Base-T:Cat5またはそれ以上に |
最大距離:: |
CAT5 UTP最大100m |
出力：: |
36W 19VDC (ターミナルブロック) |
PWR:: |
19VDC電源出力 |
取り付けオプション：: |
ディンレール /ウォールマウント |

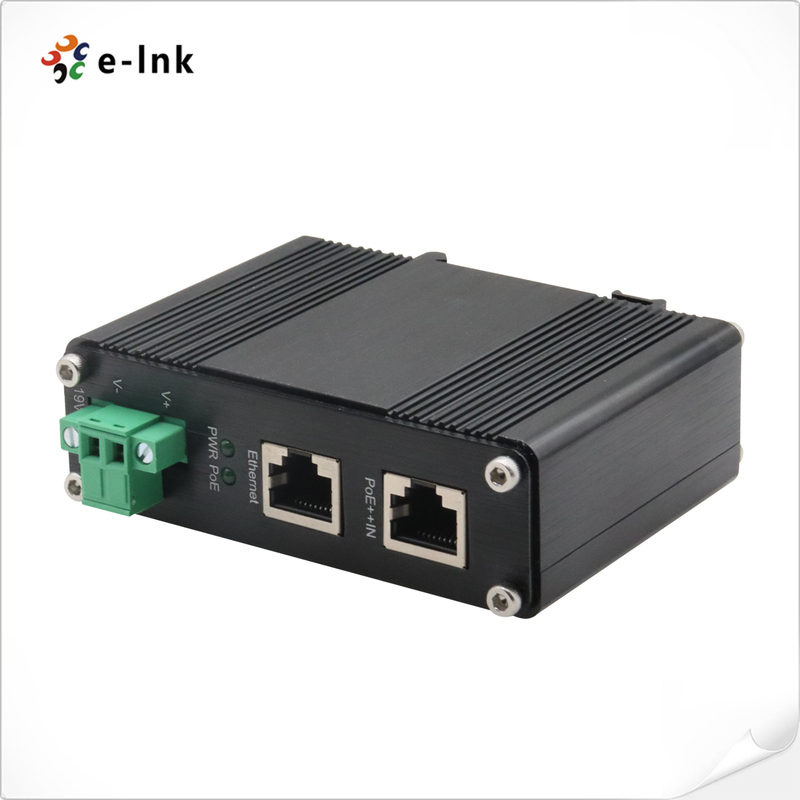

Model : LNK-INS901-19V
Product Description & Overview
The LNK-INS901-19V series represents a premium industrial-grade Power over Ethernet solution
engineered to deliver both high-speed data transmission and stable 19VDC power conversion for
specialized non-PoE equipment. This professional-grade PoE++ splitter maintains complete compliance
with IEEE 802.3bt standards while supporting full Gigabit Ethernet performance across standard 100-
meter network segments. The sophisticated power management architecture efficiently converts high-
power PoE++ input into precisely regulated 19VDC output through industrial-grade conversion circuitry,
eliminating the requirement for separate electrical infrastructure while substantially reducing deployment
costs for power-demanding edge applications.
Featuring rugged industrial construction with enhanced thermal dissipation and electromagnetic shielding,
this high-performance splitter functions as an advanced powered device (PD) compatible with PoE++
switches and high-power injectors including the LNK-INJ-48-95W series. The innovative plug-and-play
architecture requires absolutely zero configuration, while the industrial-grade screw terminal block
guarantees secure power connections for various 19V professional equipment. Ideal for industrial
automation systems, professional audio/video installations, and high-performance computing applications,
this versatile solution offers exceptional deployment adaptability in challenging environments where both
network reliability and specific voltage requirements are paramount.
The integrated multi-level protection system ensures complete safeguarding of connected equipment
against power anomalies, voltage variations, and circuit faults while maintaining peak efficiency during
continuous operation. This advanced splitting solution facilitates seamless integration of 19V specialized
devices into modern PoE++ networks, delivering exceptional value for system integrators managing
sophisticated network infrastructures across industrial plants, broadcast facilities, and specialized
installations requiring stable 19VDC power delivery and high-speed data transmission for professional-
grade equipment and high-power network peripherals in demanding operational conditions.
Key Features Bullets
High-Power PoE++ Compatibility
Supports IEEE 802.3af/at/bt standards including 95W PoE++ input capability
Professional Power Separation Technology
Efficiently splits data and power from single PoE++ source
Industrial-Grade Environmental Protection
IP40-rated metal housing with -40°C to 80°C operating range
Advanced Circuit Safety System
Integrated short-circuit and overload protection mechanisms
Gigabit Network Performance
10/100/1000Base-T compatibility with 100-meter transmission distance
Dedicated Port Configuration
Single RJ-45 PoE input + data output + 19VDC terminal block
Flexible Installation Options
DIN-rail and wall-mount compatible for versatile deployment
Comprehensive Status Monitoring
Multi-function LED indicators for real-time diagnostics
Robust Industrial Construction
Fanless metal design for harsh environment operation
Technical Specifications & Indexes
|
Ethernet |
|
|
Standards: |
IEEE 802.3 10Base-T Ethernet |
|
IEEE 802.3u 100Base-TX Fast Ethernet |
|
|
IEEE 802.3ab 1000Base-T Gigabit Ethernet |
|
|
IEEE 802.3af Power over Ethernet |
|
|
IEEE 802.3at Power over Ethernet Plus |
|
|
IEEE 802.3bt 4-pair Power over Ethernet |
|
|
Processing Type: |
Forward |
|
Half-duplex, Full-duplex |
|
|
Forward Filter Rate: |
1,488,000pps (1000Mbps) |
|
Cabling: |
1000Base-T: Cat5 or above |
|
Maximum Distance: |
Cat5 UTP up to 100m |
|
Interface: |
“PoE (Power + Data)” Input Port: 1 x RJ-45 10/100/1000Base-T |
|
“Data” Out Port: 1 x RJ-45 10/100/1000Base-T |
|
|
DC Out Plug Connector: 1 removable 2-Pin terminal block |
|
|
Power over Ethernet |
|
|
PoE Standard: |
IEEE 802.3af/at/bt Power over Ethernet |
|
Number of devices that can be powered: |
1 (19VDC) (Vary on device’s power requirement; cannot be over 36 watts.) |
|
Environmental |
|
|
Operating Temperature: |
-40°C to 80°C (-40°F to 176°F) |
|
Storage Temperature: |
-40°C to 85°C (-40°F to 185°F) |
|
Relative Humidity: |
5% to 95% non-condensing |
|
MTBF: |
>200,000hrs |
|
Electrical and Mechanical |
|
|
Power Output: |
36W 19VDC (Terminal Block) |
|
Power Consumption: |
41W Max. |
|
LED Indicators: |
|
|
PWR: |
19VDC Power OUT |
|
POE: |
PoE Power IN |
|
Dimensions (WxDxH): |
95 x 70 x 30 mm |
|
Weight: |
0.25Kg |
|
Casing: |
Aluminum Case |
|
Mounting Options: |
DIN-Rail / Wall-mount |
|
Regulatory Approvals |
|
|
ISO9001 |
|
|
FCC part 15, Class A |
|
|
EN55022:2006+A1: 2007 Class A |
|
|
Surge Protection: |
|
|
RJ45: 1KV |
|
|
Power: 500W |
|
|
ESD: 4KV/8KV |
|
Ordering information
|
Model |
Description |
|
LNK-INS901-19V |
Industrial IEEE802.3bt Gigabit PoE Splitter Output Voltage 19VDC, maximum output of 36W at 19VDC, Support DIN-Rail mounting and Wall mounting installation, -40 to 80°C operating temperature |
|
Mounting Options |
► Default DIN-Rail Bracket installed; Wall Mount Bracket is included. |
Application Scenarios
Powering industrial motor controllers and automation equipment
Supporting high-performance PTZ surveillance camera systems
Enabling connectivity for industrial wireless access points
Providing PoE++ for professional audio/video equipment
Supporting network devices in extreme temperature industrial environments
