製品詳細
起源の場所: 中国
ブランド名: E-link
証明: ROHS,FCC,CE
モデル番号: LNK-IMC016G
支払いと送料の条件
最小注文数量: 1個
価格: 49USD~59USD
パッケージの詳細: 標準エクスポートパッケージを切り替えます
受渡し時間: 3〜12営業日
支払条件: L/C、T/T、ウェスタンユニオン、マネーグラム、ペイパル
供給の能力: 1000 PCS/月
キーワード: |
産業イーサネットスイッチ |
温度: |
-40 ～ +80°C (-40 ～ 176°F) |
ケーシング: |
アルミケース |
w×h×d: |
150 x 115 x 50 mm |
重さ: |
0.6kg |
インストール: |
ディンレールの取り付け、壁取り付け |
キーワード: |
産業イーサネットスイッチ |
温度: |
-40 ～ +80°C (-40 ～ 176°F) |
ケーシング: |
アルミケース |
w×h×d: |
150 x 115 x 50 mm |
重さ: |
0.6kg |
インストール: |
ディンレールの取り付け、壁取り付け |

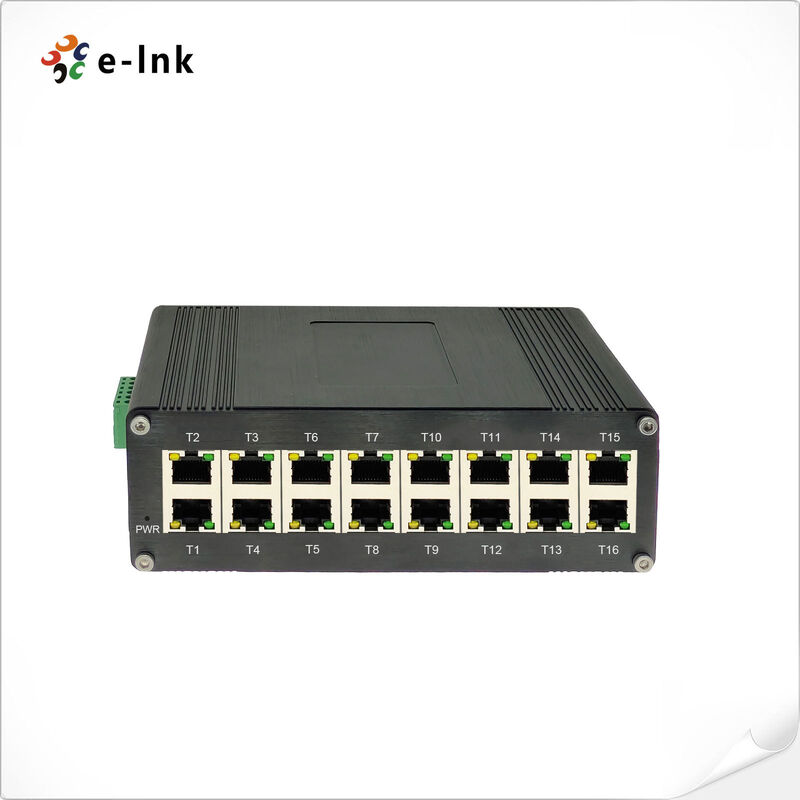

Industrial 16-port 10/100/1000BASE-T Ethernet Switch
Industrial 16-port 10/100/1000BASE-T Ethernet Switch Advantages
► 16 10/100/1000Base-TX ports
► RJ45 Port Supports 10/100/1000Mbps-Full/Half-duplex, Auto-negotiation, Auto MDI/MDIX
► Supports 802.3x Flow control
► IEEE 802.3az Energy Efficient Ethernet (EEE)
► Supports DIN-Rail installation
► Redundant 12～48V DC Power Inputs
► Industry standard design, dustproof and close design IP40, rugged high-strength metal case
► -40°C to 80°C (-40°F to 176°F) operating temperature
Industrial 16-port 10/100/1000BASE-T Ethernet Switch Overview
LNK-IMC016G is an 16 ports 10/100/1000Base-TX Hardened Ethernet Switch. This unmanaged industrial Ethernet switch is designed to match the critical industrial standards. With reliable and simple operation against vibration and shock, and wide operation temperature range, it could match a variety of harsh environment.
The switch complies with CE and FCC standards, and passed the 100% burning test to ensure that it will fulfill the needs of industrial applications. It is a good choice for an economical solution for industrial Ethernet connections.
Industrial 16-port 10/100/1000BASE-T Ethernet Switch Technical Indexes
|
Standards: |
IEEE802.3 10BASE-T |
|
IEEE802.3u 100BASE-TX |
|
|
IEEE802.3ab 1000BASE-T |
|
|
IEEE802.3az Energy Efficient Ethernet (EEE) |
|
|
IEEE802.3z 1000BASE-X |
|
|
Forward & Filtering Rate: |
14,880pps (10Mbps) |
|
148,800pps (100Mbps) |
|
|
1,488,000pps (1000Mbps) |
|
|
Packet Buffer Memory: |
1M bits |
|
Switch Fabric: |
40 Gbps |
|
Max Packet Length: |
10K Bytes |
|
Address Table Size: |
16K MAC Addresses |
|
Interface |
|
|
Connector: |
16 x RJ45 |
|
Environmental |
|
|
Operating Temperature: |
-40°C to 80°C (-40°F to 176°F) |
|
Storage Temperature: |
-40°C to 85°C (-40°F to 185°F) |
|
Relative Humidity: |
5% to 95% non-condensing |
|
MTBF |
> 200,000 hrs |
|
Electrical and Mechanical |
|
|
Input Power: |
12~48V DC, Redundant Power (6-pin Terminal Block) |
|
Power Consumption: |
5W Max. |
|
Protection: |
|
|
Power Input Overload: |
Automatic Resettable |
|
Reverse Polarity: |
Present |
|
LED Indicators: |
|
|
Power: |
Power1, Power2 Status |
|
Ethernet (Per Port): |
Link/Activity |
|
Dimensions (WxDxH): |
150 x 115 x 50 mm |
|
Weight: |
0.6Kg |
|
Casing: |
Aluminum Case |
|
Mounting Options: |
DIN-Rail |
|
Regulatory Approvals |
|
|
ISO9001 |
|
|
EN55022:2010+AC: 2011, Class A |
|
|
EN 61000-3-2: 2006+A1: 2009+A2: 2009 |
|
|
EN 61000-3-3: 2013 |
|
|
EN55024:2010 |
|
|
IEC 61000-4-2: 2008 (ESD) |
|
|
IEC 61000-4-3: 2010 (RS) |
|
|
IEC 61000-4-4: 2012 (EFT) |
|
|
IEC 61000-4-5: 2014 (Surge) |
|
|
IEC 61000-4-6: 2013 (CS) |
|
|
IEC 61000-4-8: 2009 (PFMF) |
|
Industrial 16-port 10/100/1000BASE-T Ethernet Switch Ordering Information
