製品詳細
起源の場所: 中国
ブランド名: E-link
証明: Iso9001, CE, ROHS, FCC
モデル番号: LNK-HF201KM
支払いと送料の条件
最小注文数量: 1 ペア
価格: negotiate
パッケージの詳細: HDMI ファイバー エクステンダー 標準 カートン 梱包
受渡し時間: 3～5営業日
支払条件: T/T,ウェスタンユニオン,マネーグラム,PayPal
供給の能力: 1000個/月
基準: |
HDMI 2.0およびHDCP 2.2 |
最大データレート: |
18Gbps |
コネクタ: |
メス HDMI タイプ A |
電源: |
力のアダプター:DC 5V |
温度: |
動作: -10°C ~ +55°C |
次元（LxWxH）: |
163 x 86 x 24 （mm） |
基準: |
HDMI 2.0およびHDCP 2.2 |
最大データレート: |
18Gbps |
コネクタ: |
メス HDMI タイプ A |
電源: |
力のアダプター:DC 5V |
温度: |
動作: -10°C ~ +55°C |
次元（LxWxH）: |
163 x 86 x 24 （mm） |
Model:LNK-HF201KM
Overview

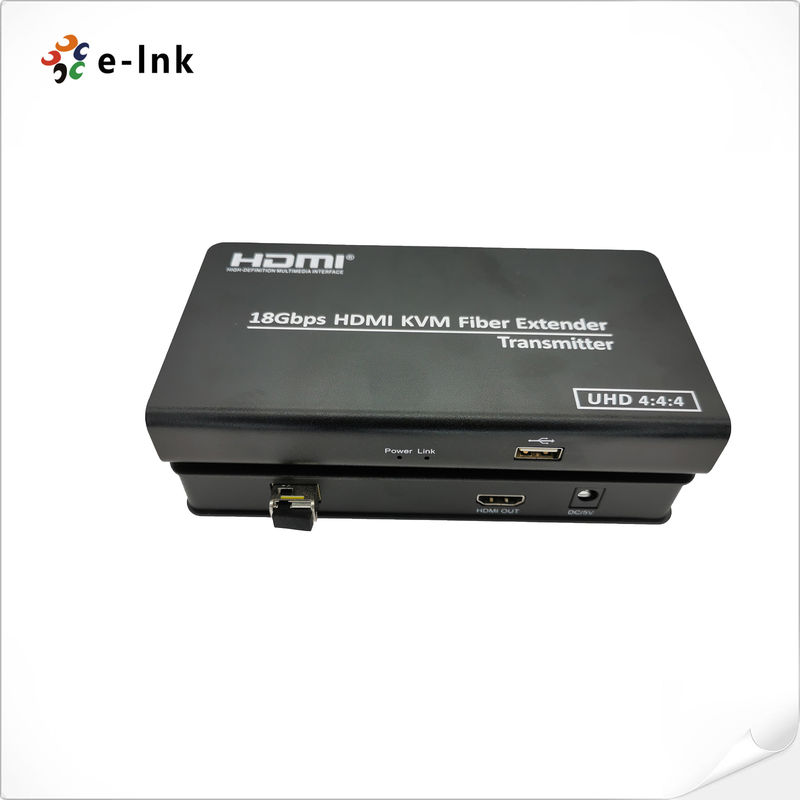

LNK-HF201KM KVM Video Signal Extender HDMI 2.0, USB (keyboard / mouse). It consists of two modules that are
interconnected by means of single-mode or multimode fiber optic cable. It allows working at a maximum resolution of
4K HDMI video. The maximum cable distance can be up to 10 km via Single Mode Fiber or 300 meters via OM3 Multimode
Fiber.
Features
► Supports HDCP 2.2
► Simple to install, plug and play
► Uncompressed HDMI 2.0 video transmission up to 4K@60Hz 4:4:4 8-bit
► Transmits 4K HDMI2.0 video signals up to 10km over SMF, 300 meters over OM3 MMF
► Local module connectors: HDMI input, USB input (type B-female) for keyboard / mouse,
fiber optic connector (LC-female), and 5 VDC power connector (DC-jack-female)
► Remote module connectors: HDMI output for remote display, 2 USB outputs (keyboard / mouse),
fiber optic connector (LC-female), and 5 VDC power connector (DC-jack-female)
► Support keyboard and mouse signal transmission
Technical Indexes
| Parameter | Description | |
| Video | Standards | HDMI 2.0 and HDCP 2.2 |
| Maximum pixel clock | 600MHz | |
| Maximum data rate | 18Gbps | |
| Resolution range | 800 x 600, 1024 x 768, 1280 x 720, 1280 x 768, 1280 x 800, 1280 x 960, 1280 x 1024, 1360 x 768, 1366 x 768, 1440 x 900, 1600 x 900, 1600 x 1200, 1680 x 1050, 1920 x 1080, 1920 x 1200, 2560 x 1440, 2560 x 1600, 3840 x 2160P, 4096 x 2160P | |
| Connector | Female HDMI type A | |
| Impedance | 100Ω | |
| K/M | Interface |
PC: MINI-USB Keyboard And Mouse: USB-A |
| Optical fiber | Interface | SFP model – LC connector |
| Fiber type | Single-mode or Multimode | |
| Wavelength | Single-mode 1310nm, Multimode 850nm | |
| Interface bandwidth | 18Gbps | |
| Transmission distance |
OM3 Multimode fiber: 300M Single mode fiber: 10KM |
|
| Other | Power supply | The power adapter: DC 5V |
| Power dissipation | MAX 5W | |
| Temperature | Operating: -10℃ ~ +55℃ | |
| Humidity | Operating: 5% ~ 90% | |
| Dimension (LxWxH) | 163 x 86 x 24(mm) | |
| Gross weight | 1.471KG | |
| The warranty | 1 year free warranty | |
Application
Ordering lnformation
| Model | Description |
| LNK-HF201KM-M | 4K HDMI 2.0 KVM USB over Fiber Optic Extender, OM3 Multimode Fiber, 300 meters |
| LNK-HF201KM-10 | 4K HDMI 2.0 KVM USB over Fiber Optic Extender, Single-mode Fiber, 10km |
