製品詳細
起源の場所: 中国
ブランド名: E-link
証明: CE, RoHS, FCC, ISO9001
モデル番号: LNK-DKM100-T
ドキュメント: E-link 4K DVI KVM over Cat6....0.pdf
支払いと送料の条件
最小注文数量: 1pcs
価格: 交渉可能
パッケージの詳細: 産業PoEスイッチ標準的なカートンの包装
受渡し時間: 7～10営業日
支払条件: L/C,T/T,ウェスタンユニオン,マネーグラム,Paypal
供給の能力: 100000個/月
動作温度：: |
-5℃〜 +70℃ |
Power dissipation: |
MAX 6W |
電源: |
DC 5V/2A |
解決: |
1920X1080P@60Hz, 4K*2K |
湿度の動作: |
5% | 90% |
保証: |
2 年 |
動作温度：: |
-5℃〜 +70℃ |
Power dissipation: |
MAX 6W |
電源: |
DC 5V/2A |
解決: |
1920X1080P@60Hz, 4K*2K |
湿度の動作: |
5% | 90% |
保証: |
2 年 |
Product Advantages
· Transmits DVI video signals up to 100m over a single CAT6 cable
· Support video resolution up to 1920*1080P@60Hz and 4K*2K
· Support HD BaseT technology
· Support KVM, keyboard and mouse signal transmission
· Support RS232 signal bi-directional transmission, baud rate self-adaptive
· Compliance with DVI 1.0 and HDCP 1.2 standard
· High compatibility, can auto-match source and display device
· Built-in automatic adjustment system, make the image smooth, clear and stable
· Built-in ESD protection system
· Simple to install, plug and play
Overview

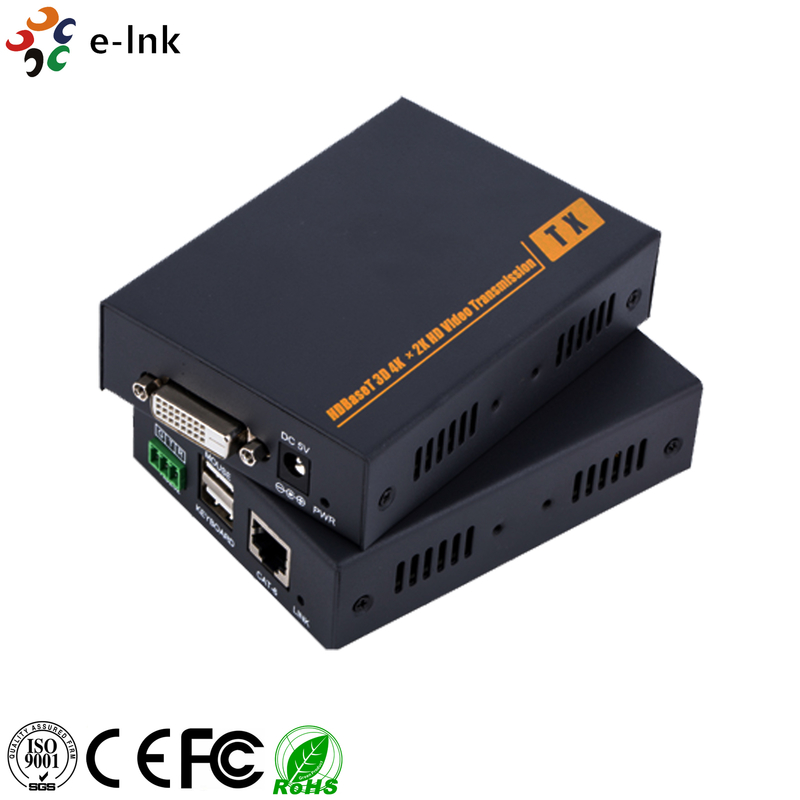

The DVI KVM extender provides extension of DVI signals long distances over a single CAT6 cable, it supports high resolution up to 4K*2K, RS232 and KVM signal transmission function. The extender can use for a wide range of applications requiring long distance transmission of high resolution with high quality by its good stability and powerful security.
Technical Indexes
|
Parameter |
Description |
|
|
Video |
Standards |
DVI 1.0; HDCP 1.2 |
|
Maximum pixel clock |
165MHz |
|
|
Maximum data rate |
10.2Gbps |
|
|
Resolution |
1920X1080P@60Hz, 4K*2K |
|
|
Connector |
DVI-D |
|
|
Impedance |
100Ω |
|
|
RS232 |
Interface |
Industrial terminal |
|
Signal direction |
Bi-directional |
|
|
Baud rate |
Self-adaptive, Max: 115200bps |
|
|
Data bits |
8 |
|
|
KVM |
Interface |
PC: MINI-USB Keyboard and mouse: USB-A |
|
Ethernet |
Interface |
RJ45 |
|
Transmission distance |
1080P: CAT6---100m 4K*2K: CAT6---70m |
|
|
Other |
Power supply |
The power adapter: DC 5V/2A |
|
Power dissipation |
MAX 6W |
|
|
Temperature |
Operating: -5℃ ~ +70℃ |
|
|
Humidity |
Operating: 5% ~ 90% |
|
|
Dimension |
105*76*27mm |
|
|
Warranty |
2-year |
|
|
Item |
Description |
|
LNK-DKM100-T |
DVI (1080P@60Hz, 4K*2K) KVM Extender over CAT6/ 7 Kit Transmitter, 100 meters |
|
LNK-DKM100-R |
DVI (1080P@60Hz, 4K*2K) KVM Extender over CAT6/ 7 Kit Receiver, 100 meters |
