製品詳細
起源の場所: 中国
ブランド名: E-link
証明: CE, RoHS, FCC, ISO9001
モデル番号: LNK-DKM100-T
ドキュメント: E-link DVI Video Extender o....0.pdf
支払いと送料の条件
最小注文数量: 1pcs
価格: 交渉可能
パッケージの詳細: 産業PoEスイッチ標準的なカートンの包装
受渡し時間: 7～10営業日
支払条件: L/C,T/T,ウェスタンユニオン,マネーグラム,Paypal
供給の能力: 100000個/月
動作温度：: |
0℃ - 70℃ |
電源: |
DVI送信機：3W DVI受信機：3W |
サイズ（L-W-H）: |
100×60×25mm |
Weight: |
128g*2PCS |
Audio: |
Sample rate:32kHz, 44.1kHz and 48kHz |
DVI: |
DVI 1.0 |
動作温度：: |
0℃ - 70℃ |
電源: |
DVI送信機：3W DVI受信機：3W |
サイズ（L-W-H）: |
100×60×25mm |
Weight: |
128g*2PCS |
Audio: |
Sample rate:32kHz, 44.1kHz and 48kHz |
DVI: |
DVI 1.0 |
Product Advantages
· Following TCP/IP standard.
· Support DVI 1.0 protocol.
· HDCP 1.1 & 1.2 protocol compliant
· Support point-to-point mode, one point-to-many mode and cascade connection mode.

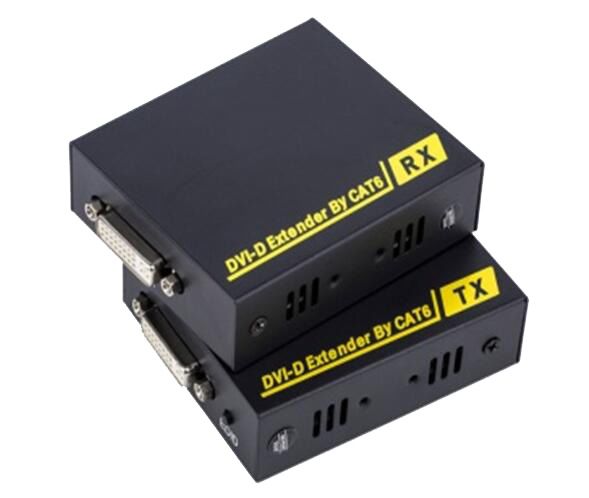

Overview
DVI Over Ethernet is based on TCP/IP standard. It transmit your HD display with the high resolutions up to 198 feet (60 meters) away from your DVI-D source by using one CAT5e/6 cable. With the advantage of TCP/IP standard,you can extend your HD video to multiple displays by using an Ethernet Switch.
Technical Indexes
|
HDTV Resolutions |
480p,576p,720p,1080p |
|
Audio |
Sample rate:32kHz, 44.1kHz and 48kHz |
|
DVI |
DVI 1.0 |
|
HDCP |
HDCP1.2 |
|
Power adapter |
Input: 100V - 240V (50 - 60Hz) Output: 5V/1A |
|
Power consumption |
DVI Sender: 3W DVI Receiver: 3W |
|
Size(L-W-H) |
100×60×25mm |
|
Weight |
|
|
Operating Temperature/Humidity |
0℃ - 70℃ / 10% - 80%RH(no condensation) |
|
Storage Temperature/Humidity |
-10℃ - 80℃/ 5% -90% RH(no condensation) |
