製品詳細
起源の場所: 中国
ブランド名: E-link
証明: CE, RoHS, FCC, ISO9001
モデル番号: SDI - HDMIコンバーター
ドキュメント: E-link 3G-SDI to HDMI Conve....0.pdf
支払いと送料の条件
最小注文数量: 1pcs
価格: 交渉可能
パッケージの詳細: 産業PoEスイッチ標準的なカートンの包装
受渡し時間: 7～10営業日
支払条件: L/C,T/T,ウェスタンユニオン,マネーグラム,Paypal
供給の能力: 100000個/月
動作温度：: |
-40°Cから+70°C |
電源: |
DC5V/1A |
電力散逸: |
最大4W |
寸法: |
98.5 x 85 x 31mm |
動作温度：: |
-40°Cから+70°C |
電源: |
DC5V/1A |
電力散逸: |
最大4W |
寸法: |
98.5 x 85 x 31mm |

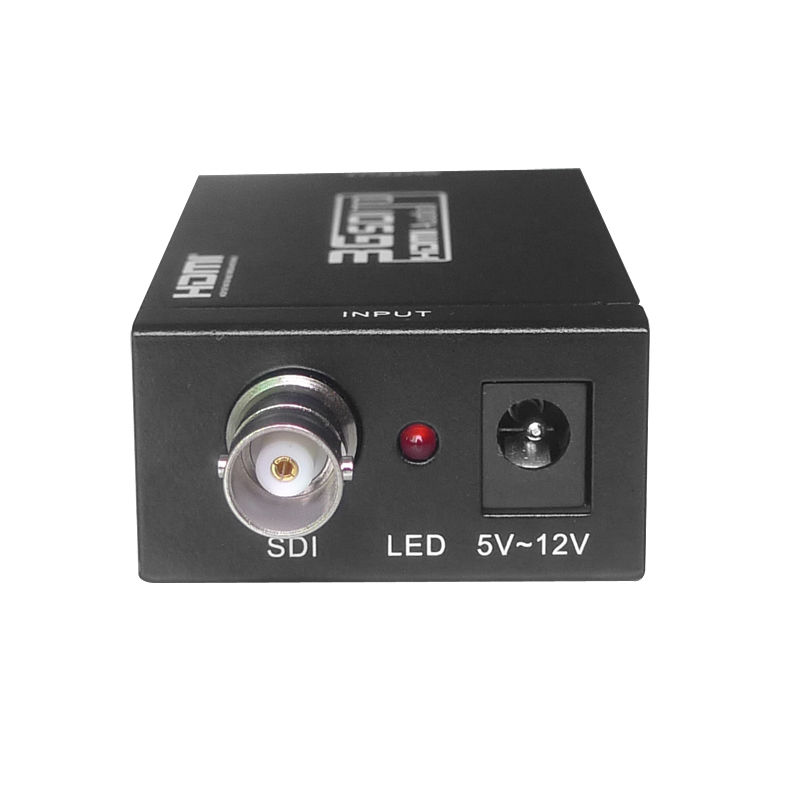

3G-SDI to HDMI Converter
Product Advantages
1. Operation at 2.970Gbit/s, 2.970/1.001Gbit/s, 1.485Gbit/s, 1.485/1.001Gbit/s and 270Mbits/s
2. Supports SMPTE 425M (Level A and Level B), SMPTE 424M, SMPTE 292M, SMPTE 259M-C
3. Equalized and re-clocked loop output• Integrated audio de-embedder for a maximum of 8 channel, 48 kHz audio
4. Conversion from SMPTE 425M level B to Level A 1080p 50/59.94/60 4:2:2 10-bit
5. Connect with other units to extend your signal over long distances
Overview
The SDI to HDMI converter allows SD-SDI, HD-SDI and 3G-SDI signals to be shown on HDMI/SDI displays while ensuring high bit rates of 2.970 Gbit/s to give you fast signal transmission without any loss. For professionals this means that it is now easier to distribute and extend your 3G SDI signal while giving you the ability to display your work on HDMI displays thanks to the built in HDMI converter.
Technical Indexes
|
Parameter |
Specifications |
|
Input Port |
1 x BNC (SDI/HD-SDI/3G-SDI) |
|
Output Port |
1 x HDMI |
|
SMPTE Standard |
425M Level A & B, 424M, 292M, 259M-C |
|
SDI Transmission Rates |
2.970 Gbit/s and 2.970/1.001 Gbit/s |
|
In/Output Resolution |
480i, 576i, 720p@50/59.94,60 , 1080i@50/59.94/60 1080p@23.98/24/25/29.97/30/50/59.94/60 1080PsF@23.98/24/25/29.97/30 |
|
HDMI input/output connect |
HDMI type A 19Pin |
|
Link Connector |
BNC Shielded |
|
Power Adapter |
DC5V/1A |
|
Operating temperature range |
-40℃ to +70℃ |
|
Operating humidity range |
5 to 90% RH (no condensation) |
|
Shippingweight |
0.15 KGS |
|
Dimensions( L x W x H) |
98.5 x 85 x 31mm |
