製品詳細
起源の場所: 中国
ブランド名: E-link
証明: CE, RoHS, FCC, ISO9001
モデル番号: LNK-CSH-12G
ドキュメント: E-link LNK-CSH-12G 12G-SDI ....0.pdf
支払いと送料の条件
最小注文数量: 1pcs
価格: 交渉可能
パッケージの詳細: 産業PoEスイッチ標準的なカートンの包装
受渡し時間: 7～10営業日
支払条件: L/C,T/T,ウェスタンユニオン,マネーグラム,Paypal
供給の能力: 100000個/月
動作温度：: |
55℃への0 |
電源: |
DC12V1.5A |
寸法: |
253 x 162.5 x 40mm |
重量: |
1030g |
動作温度：: |
55℃への0 |
電源: |
DC12V1.5A |
寸法: |
253 x 162.5 x 40mm |
重量: |
1030g |
Product Advantages
► Convert 12G-SDI to HDMI 2.0b at up to 4K 60p
► SDI supports up to 12G-SDI, support 4:2:2 HDMI2.0 output
► The highest resolution is 4K 60HZ, which can be down-converted to 1080P 60HZ
► Support audio embedding and de-embedding, compatible with AES/RCA audio
► SDI supports 8 Channels for embedded audio
► Support HDMI HDCP ON and OFF
► Fiber SFP port available, support 12G remote transmission
► Support phantom power
Overview

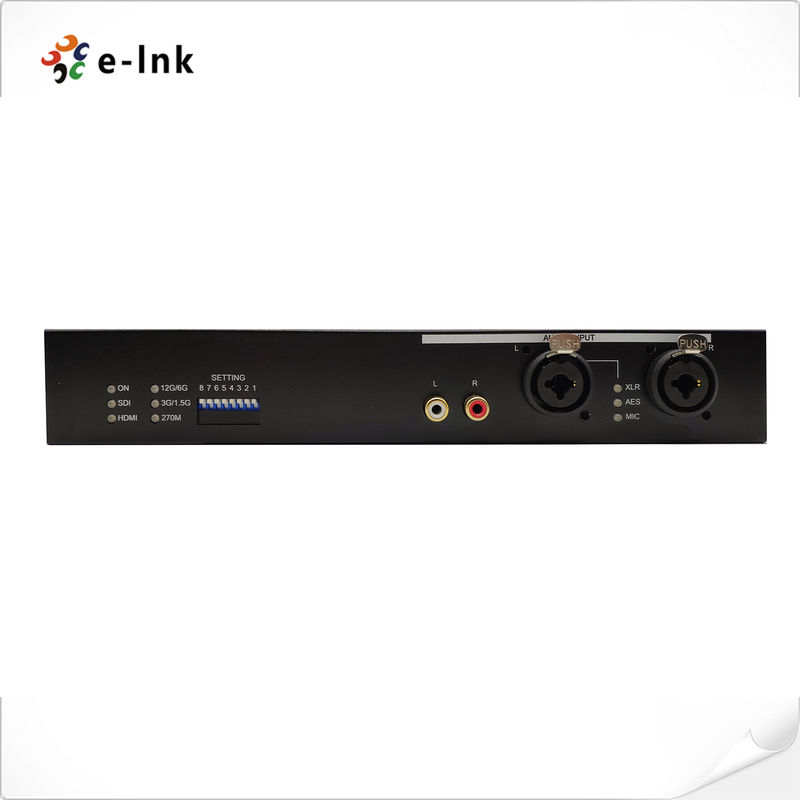

The LNK-CSH-12G is a 12G-SDI to HDMI 2.0 Converter that converts HD/3G/6G/12G-SDI input signals to an HDMI output in real time. It supports various transmission distances depending on different SDI formats, including 45 m (12G-SDI), 60 m (6G-SDI), 90 m(3G-SDI), and 150 m (HD-SDI), offering the flexibility for professional video projects. In addition, It’s with Fiber SFP port available, support 12G remote transmission. The LNK-CSH-12G is a perfect choice for converting SDI signal to HDMI for applications such as broadcasting, medical imaging and industrial inspection.
converter.
Technical Indexes
|
Parameter |
||
|
Interface Standard |
12G-SDI |
SMPTE 2082-10 |
|
6G-SDI |
SMPTE 2081-10 |
|
|
3G-SDI |
SMPTE 425-1 3GA & 3GB |
|
|
SMPTE 425-1 3GB-DS |
||
|
HD-SDI |
SMPTE 292 |
|
|
SDI Video Formats |
4096x2160 |
60p, 59.94p, 50p, 48p, 47.95p, 30p, 29.97p, 25p, 24p, 23.98p |
|
3840x2160 |
60p, 59.94p, 50p, 48p, 47.95p, 30p, 29.97p, 25p, 24p, 23.98p |
|
|
2048x1080 |
60p, 60i, 59.94p, 59.94i, 50p, 50i, 48p, 48i, 47.95p, 47.95i, 30p, 30psf, 29.97p, 29.97psf, 25p, 25psf, 24p, 24psf, 23.98p, 23.98psf |
|
|
1920x1080 |
60p, 60i, 59.94p, 59.94i, 50p, 50i, 48p, 48i, 47.95p, 47.95i, 30p, 30psf, 29.97p, 29.97psf, 25p, 25psf, 24p, 24psf, 23.98p, 23.98psf |
|
|
1280x720 |
60p, 59.94p, 50p, 48p, 47.95p, 30p, 29.97p, 25p, 24p, 23.98p |
|
|
Input Interface |
1 x 75Ω BNC, 1 x Video SMPTE SFP+ |
|
|
Output Interface |
1 x HDMI Type A, 1 x 75Ω BNC, 1 x Video SMPTE SFP+ |
|
|
Audio Interface |
2 x XLR Male Jack |
|
|
2 x XLR Female Combo 6.4 Jack |
||
|
2 x 10KΩ RCA |
||
|
Transmission Distance |
Fiber SFP |
10KM |
|
12G-SDI |
40M |
|
|
3G-SDI |
100M |
|
|
HD-SDI |
200M |
|
|
Power Input |
DC12V1.5A |
|
|
Operating Temperature |
0 to 55℃ |
|
|
Humidity |
Less than 95℃ |
|
|
Dimensions (LxWxH) |
253 x 162.5 x 40mm |
|
|
Weight |
1030g |
|
|
Model |
Description |
|
LNK-CSH-12G |
12G-SDI to HDMI 2.0 Converter, broadcast level, support audio embedding and de-embedding, compatible with AES/RCA audio, Fiber SFP port available (not including SFP modules) |
