製品詳細
起源の場所: 中国
ブランド名: E-link
証明: ROHS,FCC,CE
モデル番号: LNK-H4K101
支払いと送料の条件
最小注文数量: 1個のPC
価格: 交渉可能
パッケージの詳細: エクステンダー標準輸出パッケージ
受渡し時間: 3〜12営業日
支払条件: L/C、T/T、Western Union、MoneyGram、PayPal
供給の能力: 1000 PCS/月
キーワード: |
光ファイバーエクステンダー |
動作温度: |
-5℃〜 +70℃ |
電源: |
電源アダプター：DC 5V/2a |
電力散逸: |
最大4W |
次元（LxWxH）: |
104*89*28mm |
湿度: |
作動:5% | 90% |
キーワード: |
光ファイバーエクステンダー |
動作温度: |
-5℃〜 +70℃ |
電源: |
電源アダプター：DC 5V/2a |
電力散逸: |
最大4W |
次元（LxWxH）: |
104*89*28mm |
湿度: |
作動:5% | 90% |
► Transmits HDMI video signals up to 2km-60km over one fiber optic cable;
► Support video resolution up to 3840*2160@30Hz, 3D signal;
► Compliance with HMDI 1.4; High compatibility;
► Transmitter includes EDID memory to cache the EDID from any display;
► Built-in automatic adjustment system, make the image smooth, clear and stable;
► Built-in ESD protection system;
► Simple to install, plug and play;

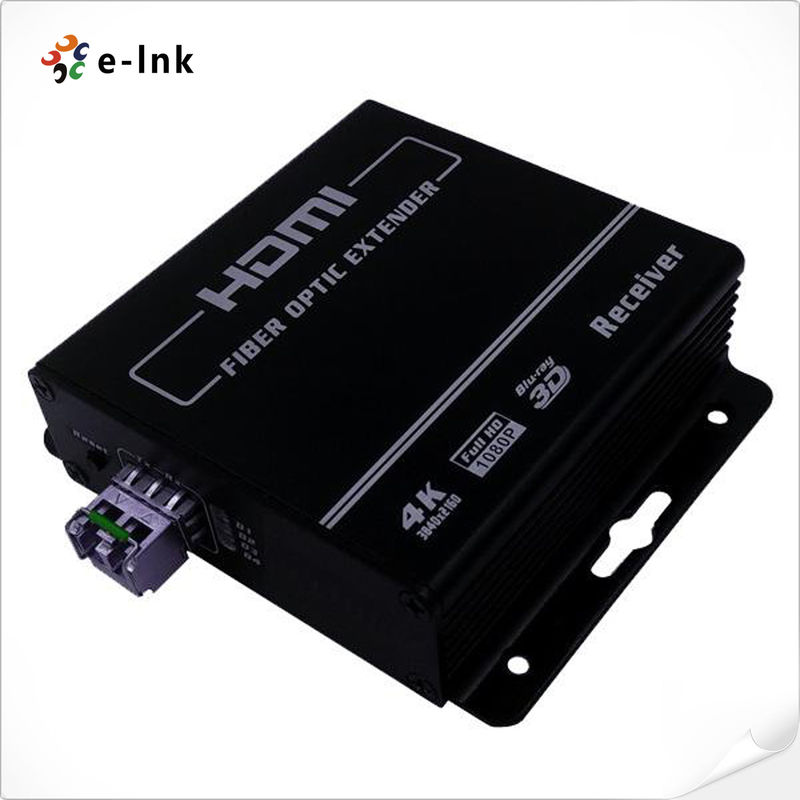

The LNK-H4K101 Fiber optic extender provides long distances extension of HDMI and 3D signals over one fiber optical cable, it supports high resolution up to 3840*2160/30P. The extender can use for a wide range of applications requiring long distance transmission of high resolution with high quality by its good stability and powerful security.
|
Parameter |
Description |
|
|
Video |
Standards |
HDMI 1.4; HDCP 1.2 |
|
|
Maximum pixel clock |
340MHz |
|
|
Maximum data rate |
10.2Gbps |
|
|
Resolution range |
Up to 3840*2160@30Hz |
|
|
Connector |
Female HDMI type A |
|
|
Impedance |
100Ω |
|
|
Interface |
SFP model – LC connector |
|
|
Fiber type |
Multi-mode / single-mode (optional) |
|
|
Wavelength |
Multi-mode 850nm / Single-mode 1310nm(optional) |
|
|
Interface bandwidth |
10Gbps |
|
|
Transmission distance |
OM3 multi-mode fiber: maximum 300m, Single-mode fiber: standard 2km；maximum 60km |
|
Other |
Power supply |
The power adapter: DC 5V/2A |
|
|
Power dissipation |
Max 4W |
|
|
Temperature |
Operating: -5℃ ~ +70℃ |
|
|
Humidity |
Operating: 5% ~ 90% |
|
|
Dimension |
104*89*28mm |
|
Item |
Description |
|
LNK-H4K101 |
4K (3840*2160/30P) HDMI Fiber Extender, SFP Port(Excl. SFP), support 10G SFP+ module, including 1 transmitter & 1 receiver, used by pairs |
