製品詳細
起源の場所: 中国
ブランド名: E-link
証明: CE, RoHS, FCC, ISO9001
モデル番号: LNK-DTS050-T
ドキュメント: E-link HD-SDI Video Extende....0.pdf
支払いと送料の条件
最小注文数量: 1pcs
価格: 交渉可能
パッケージの詳細: 産業PoEスイッチ標準的なカートンの包装
受渡し時間: 7-10営業日
支払条件: L/C、T/T、Western Union、MoneyGram、PayPal
供給の能力: 100000個/月
動作温度：: |
-10℃～60℃ / 14℉～140℉ |
電源: |
DC12V/1A |
消費電力: |
2.5W (送信および受信) |
寸法: |
98 x 65 x 28mm / 3.85 x 2.55 x 1.1インチ |
標準サポート: |
SMPTE 259M （270Mb/s）、SMPTE 292M |
スピード: |
270Mb/s、1.485Gb/s （自動選択） |
動作温度：: |
-10℃～60℃ / 14℉～140℉ |
電源: |
DC12V/1A |
消費電力: |
2.5W (送信および受信) |
寸法: |
98 x 65 x 28mm / 3.85 x 2.55 x 1.1インチ |
標準サポート: |
SMPTE 259M （270Mb/s）、SMPTE 292M |
スピード: |
270Mb/s、1.485Gb/s （自動選択） |
Product Advantages
· SDI Standard: HD-SDI, SD-SDI
· Up to 50m / 160ft via CAT5e cable
· Up to 60m / 200ft via CAT6 cable
· Supports SDI-SMPTE 259M-C (270Mbps);
· HD-SDI-SMPTE 292M (1.485, 1.485 / 1.001 Gbps)
· LED diagnostics: sync, SDI auto-detection
· 5V~12V DC
Overview

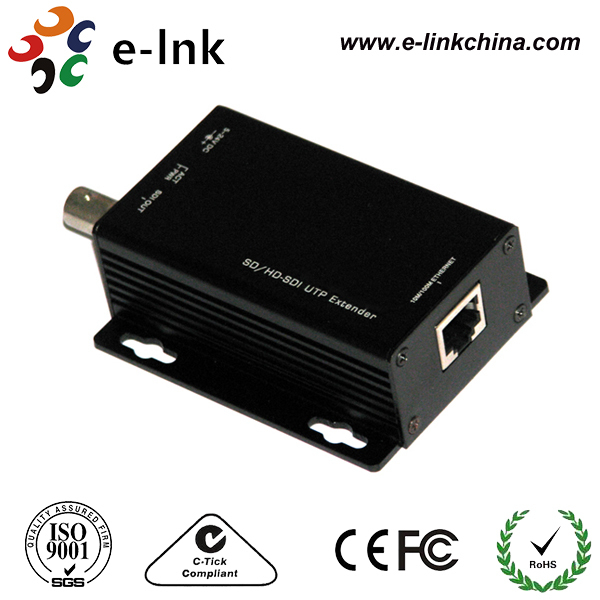

LNK-DTS050 allows HD-SDI signal to be transmitted up to 60m / 200ft via CAT5/CAT6 cable in a point-to-point configuration. The SDI-UTP Extender supports video bandwidth up to 1.485 Gbps uncompressed, un-encrypted digital video (optionally including embedded Audio and/or Time Code) , widely applied to television facilities and professional video equipment.
Technical Indexes
|
Model |
LNK-DTS050 |
|
|
Type |
Transmitter |
Receiver |
|
Standard Supported |
SMPTE 259M (270Mb/s), SMPTE 292M |
|
|
Speed |
270Mb/s, 1.485Gb/s (automatic selection) |
|
|
Support Input Format |
SD: 525i @ 59.94Hz, 625i @ 50Hz |
|
|
HD: 720p @ 23.98Hz / 24Hz / 25Hz / 29.97Hz / 30Hz |
||
|
720p @ 50Hz / 59.94Hz / 60Hz |
||
|
1080i @ 50Hz / 59.94Hz / 60Hz |
||
|
1080p @ 23.98Hz / 24Hz / 25Hz / 29.97Hz / 30Hz |
||
|
@24 Hz, 1080p @25 Hz, 1080p @29.97 Hz, 1080p @30Hz |
||
|
Indicators |
Power on (on both end) |
|
|
Sync detection (on both end) |
||
|
Link between the two units working (on both end) |
||
|
Connectors |
1x BNC 75 ohm female |
|
|
1x RJ45 of CAT5e/6 unshielded or shielded twisted pair |
||
|
1x power plug, 2.1mm |
||
|
Maximum Distance |
All resolutions |
|
|
CAT5 UTP/STP: 50m / 160ft |
||
|
CAT6 UTP/STP: 60m / 200ft |
||
|
Power Supply |
DC12V/1A |
|
|
Power Consumption |
2.5W (Tx and Rx) |
|
|
Operating Temperature |
-10°C ~ 60°C / 14°F ~ 140°F |
|
|
Storage Temperature |
-30°C ~ 70°C / -22°F ~158°F |
|
|
Dimensions (L*W*H) |
||
Ordering Information
|
Part No |
Description of product |
|
LNK-DTS050-T |
SD/HD-SDI Video Extender over CAT5/ 6 Kit Transmitter; |
|
LNK-DTS050-R |
SD/HD-SDI Video Extender over CAT5/ 6 Kit Receiver |
